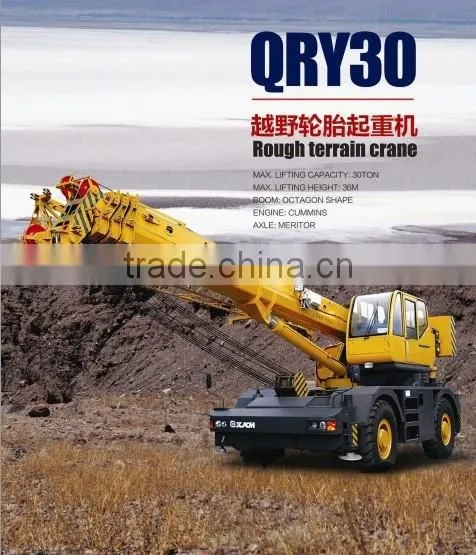

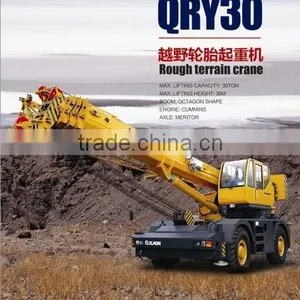

XJCM QRY30 ROUGH TERRAIN CRANE

Name: XJCM QRY30 ROUGH TERRAIN CRANE
Brand: XJCM
SKU: 143694726
Availability: InStock

Xuzhou Fanya Import & Export Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-30TON

Rated Loading Capacity:

30TON

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-30TON

Rated Loading Capacity 30TON

Rated Lifting Moment 920KN.M

Max. Lifting Load 30ton

Max. Lifting Height 27.78M

Span 3M

Place of Origin Jiangsu, China

Brand Name XJCM

Model Number QRY30

After-sales Service Provided Overseas service center available

Specifications

1.XJCM QRY30 ROUGH TERRAIN CRANE
2.Max lifting weight:30ton
3.Engine:CUMINS
4.Fully extended boom:27.78M

Category	Items				Units	Parameters
Outline Dimension	Overall length				mm	11750
	Overall width				mm	2980
	Overall height				mm	3600
	Axle base				mm	3600
	Tread				mm	2500
Weight	Dead weight in travel state				Kg	27700
	Axle load	Front axle			Kg	12880
		Rear axle			Kg	13720
Power	Engine rated output				Kw/(r/min)	162/2200
	Engine rated torque				N.m(r/min)	843/1500
Travel	Travel speed		Max. travel speed		Km/h	40
			Min. stable travel speed		Km/h	1
	Turning radius		Min. turning radius		m	5.1
			Min. turning radius of boom head		m	9.25
	Min. ground clearance				mm	400
	Approach angle				°	21
	Departure angle				°	21
Main Performance	Max. total rated lifting load				t	30
	Min. rated working radius				m	3
	Turning radius at swing table tail				m	3.525
	Max. load moment			Base boom	KN.m	920
				Fully-extended boom	KN.m	560
				Fully-extended boom + Jib	KN.m	380
	Outrigger span			Longitudinal	m	6.08
				Lateral	m	6.5
	Lifting height			Base boom	m	9.6
				Fully-extended boom	m	27.9
				Fully-extended boom+Jib	m	36
	Boom length			Base boom	m	9.18
				Fully-extended boom	m	27.78
				Fully-extended boom+Jib	m	35.1
	Jib installation angle				°	0, 30
Working Speed Parameters	Luffing time			Boom raising time	s	75
				Boom descending time	s	75
	Boom telescoping time			Boom fully-extended time	s	80
				Boom fully retracting time	s	50
	Max. swing/slewing speed				r/min	2.0
