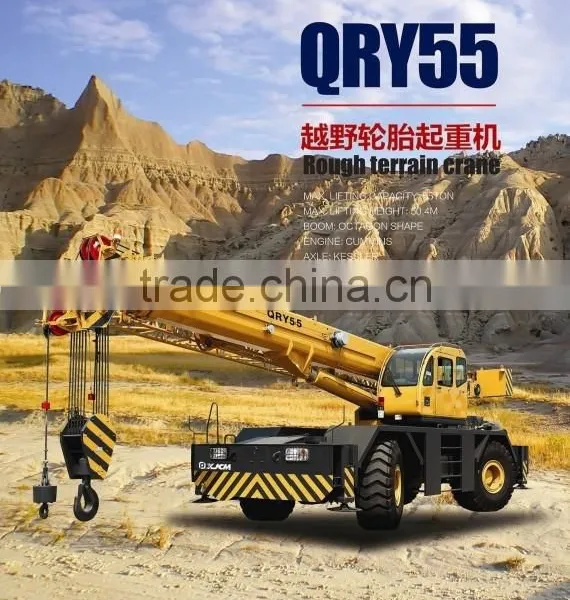

XJCM QRY55 ROUGH TERRAIN CRANE

Name: XJCM QRY55 ROUGH TERRAIN CRANE
Brand: XJCM
SKU: 143694724
Availability: InStock

Xuzhou Fanya Import & Export Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-55TON

Rated Loading Capacity:

55TON

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-55TON

Rated Loading Capacity 55TON

Rated Lifting Moment 1850KN.M

Max. Lifting Load 55ton

Max. Lifting Height 35M

Place of Origin Jiangsu, China

Brand Name XJCM

Model Number QRY55

After-sales Service Provided Overseas service center available

Specifications

1.XJCM QRY55 ROUGH TERRAIN CRANE
2.Max lifting weight:55ton
3.Engine:CUMINS
4.Fully extended boom:35M

Category	Items			Unit	Parameters
Outline Dimension	Overall length			mm	12820
	Overall width			mm	3440
	Overall height			mm	3800
	Axle base			mm	4650
	Tread			mm	2652
Weight	Dead weight in travel state			Kg	43000
	Axle load	Front axle		Kg	20710
		Rear axle		Kg	22290
Power	Engine rated output			Kw (r/min)	198/2500
	Engine rated torque			N.m (r/min)	970/1400
Travel	Travel speed	Max. travel speed		Km/h	40
	Turing radius	Min. turning radius		mm	6500
		Min. turning radius of boom head		mm	11500
	Min. ground clearance			mm	483
	Approach angle			°	24.5
	Departure angle			°	24.5
	Max. grade ability			%	55
Main Lifting Performance Parameters	Max. total rated lifting load			t	55
	Min. rated working radius			m	3
	Turning radius at swing table tail			m	4.46
	Max. load moment	Base boom		KN.m	1850
		Fully extended boom		KN.m	828
	Outrigger span	Longitudinal		m	7.7
		Lateral		m	7.6
	Boom length	Base boom		m	9.6
		Fully extended boom		m	35
Working Speed Parameters	Jib installation angle			°	0/30
	Boom luffing time	Boom raising time		s	85
		Boom descending time		s	85
	Boom telescoping time	Boom fully extended time		s	120
		Boom fully retracting time		s	95
	Max. swing speed			m/min	2
	Outrigger telescoping time	Horizontal outriggers	Extending synchronously	s	30
			Retracting synchronously	s	25
		Vertical outriggers	Extending synchronously	s	35
			Retracting synchronously	s	60
	Hoisting speed (steel wire rope is at the 4th layer)	Main winch	No load	m/min	120
		Auxiliary winch	No load	m/min	120
