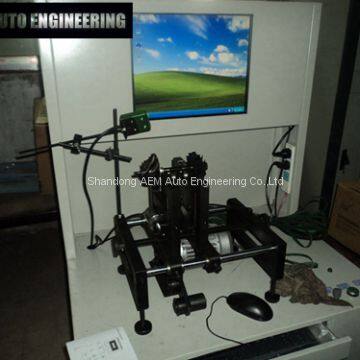

Turbocharger Dynamic Balancing Machine
Characteristics:
this type of balance machine is soft supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, inverter speed regulation, by industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, in automotive turbochargers for the special equipment.
Features:
Industrial control computer 19 "LCD color screens
Widows Chinese and English system double choice
With GB-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
Specificaton:
Model | Max. mass of workpiece (kg) | Max.diameter of workpiece (mm) | Distance between two bearing supports (mm) | Max.rotor Diameter (mm) | Balancing speed min (r/mm) | min.achievable residual unbalance (g.mm/kg) | unbalance reduction ratio(%) | Drive power (kw) |
RYQ-5 | 0.01-5 | Φ400 | 50-600 | φ3-40 | 400-5000 | ≤0.5 | ≥90 | 0.09 |
RYQ-10 | 0.1-10 | φ500 | 30-600 | φ5-60 | 400-10000 | ≤0.5 | ≥90 | 0.18 |
