High Pressure Common rail injector teser

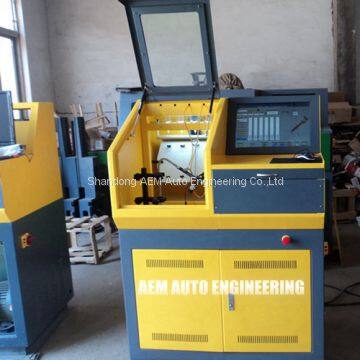

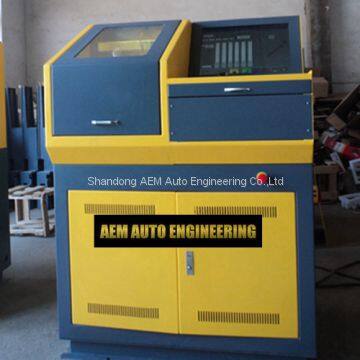

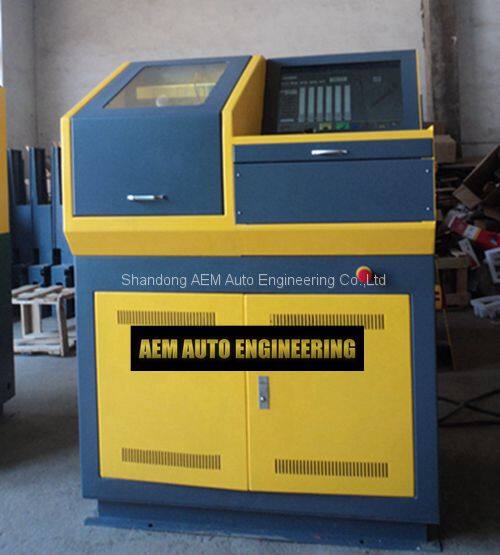

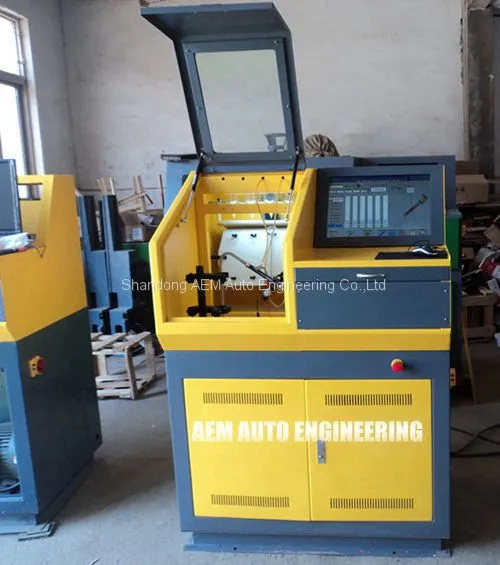

CRI 100-A HIGH-PRESSURE COMMON RAIL FUEL INJECTOR TEST BENCH
is the latest equipment we researched and produced by referring to the actual condition of domestic existing common rail fuel injector. The equipment’s rail pressure range is (0~1600bar) 。 The computer control system is controlled by industrial computer with windows system. Oil Injection and return quantity measure by glass measuring cup. Fuel mass will ne measured at real time and displayed at screen, the error precision is 0.1ml, , the data can be searched and generates date as well as be save automatically . This product with reliable performance, accurate measurement, as well as equipped with organic glass protective door which is convenient to operate and safe to observe.
Ⅰ. Characteristics:
1、 Real-time control by industrial computer with windows system, touch screen operating system (or mouse).
2、 Fuel mass is measured by sensor and displayed on 10.4” LCD or 17” display.
3、 Adopts high-pressure common rail injection pump to generate 0~1600 bar pressure.
4、 Real-time measure and control of rail pressure, with overpressure protection function.
5、 The pulse width and frequency of injector’s driving signal are adjustable.
6、 Injection time(s) of injector can be set at will.
7、 Short-circuit protection.
8、 Accurate measurement, easy operation, low noise and energy-efficient.
Ⅱ. FUNCTIONS:
1、 Detect one piece of common rail injector.
2、Test on sealing performance of high-pressure common rail injector.
3、Test on pre-injection of high-pressure common rail injector.
4、Test on maximum quantity of fuel of high-pressure common rail injector.
5、 Test on starting quantity of fuel of high-pressure common rail injector.
6、Test on quantity of fuel return of high-pressure common rail injector.
7、Test on quantity of average fuel of high-pressure common rail injector.
8、It is searchable and savable for data.
III. Technical parameter
1. Pulse width: 0.1-20ms;
2. Number of continuous oil injection: 0-1,000
3. Fuel temperature: 40±2℃;
4. Rail pressure: 0-1,600 bar;
5. Filter precision of testing oil: 5μ;
6. Input power supply: three-phase 380V or three-phase 220V;
7. Test bench rotational speed: 0-4,000 rpm
8. Fuel tank volume: 20L;
9. Overall dimension (mm): 1280×900×1430;
10. Weight: 300kg.
