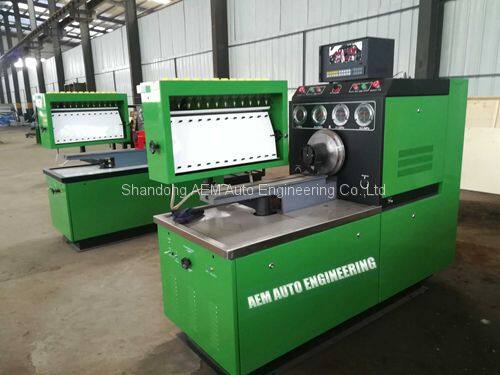

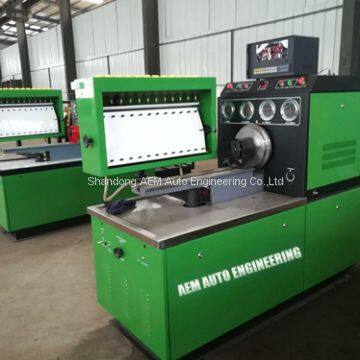

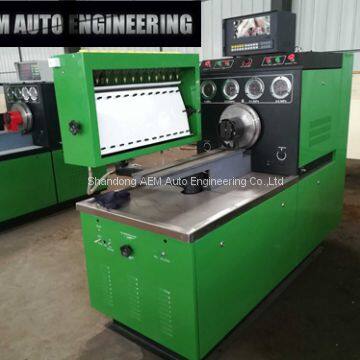

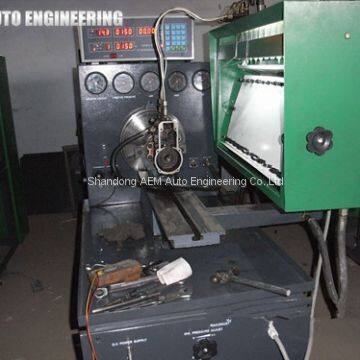

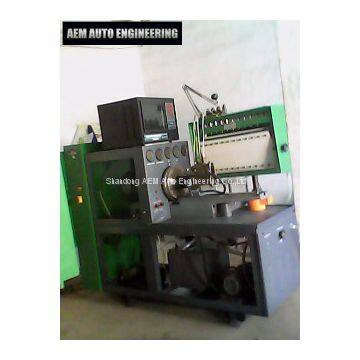

12PSB Diesel Fuel Injection Pump Test Bench

12PSB Diesel fuel injection pump test bench

Characteristics

1.       Variable frequency speed regulation;

2.       Small deceleration and large output torque;

3.       High measurement precision;

4.       Overvoltage protection, overload protection and short-circuit protection;

5.       Ten kinds of rotation speeds presetting;

6.       Constant temperature control;

7.       Ultra-low noise;

8.       Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

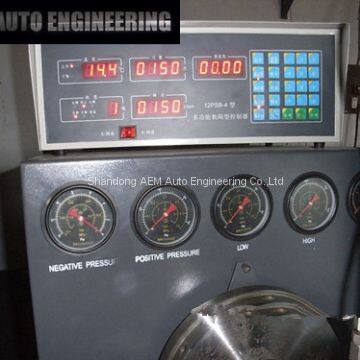

9.       Speed, count, temperature, air pressure, advance angle are displayed on 15-inch LCD;

10.    Built-in air resource.

Function

1.       Measuring each cylinder’s injected oil quantity at various rotation speeds;

2.       Checking each cylinder’s injection time statically;

3.       Checking the mechanical speed governor;

4.       Checking the electromagnetic valve of distribution pumps;

5.       Checking the pneumatic speed governor’s performance;

6.       Checking the pressure compensator’s performance;

7.       Measuring the returned oil quantity of distribution pumps;

8.       Measuring the internal pressure of the distribution pump body;

9.       Checking the pneumatic speed governor’ s vacuum performance;

10.    Measuring rack travel;

11.    Checking the sealing of fuel injection pump body.

Technical Parameters

1.      Adjustable rotation speed range: 0～4000RPM

2.      Double series of graduates: 45cc and 1500cc (optional)

3.      Volume of oil tank: 60L

4.      Temperature stabilization: 40±2℃

5.      Test oil filtering unit: 5μ

6.      DC supply: 12V/24V

7.      Fuel feed pressure: low: 0～0.4MPa, high: 0～4Mpa

8.      Air pressure: 0～0.3MPa,

9.      3-phase power supply: 380V/50Hz or according to requirements

10.  Flywheel inertia’s moment: 0.8KG·M²

11.  Center height:125MM

12.  Output power: 7.5KW, 11KW, 15KW or according to requirements

13.  Overall dimensions(MM): 2000×760×1870 or according to requirements

14.  Net weight(KG): about 900
