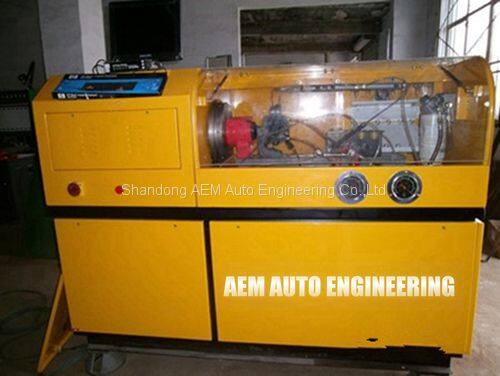

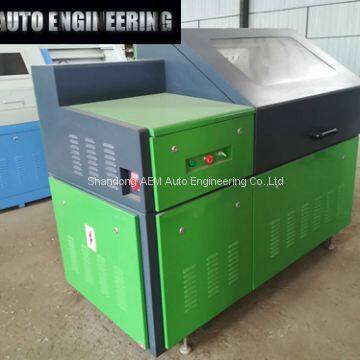

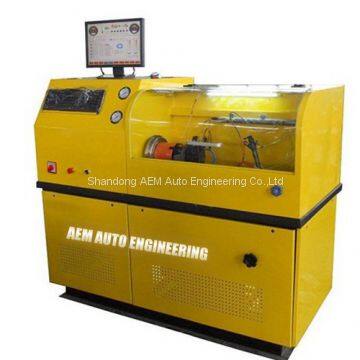

CR-100 is the latest equipment we researched and produced by referring to the actual condition of domestic existing common rail fuel injection system. The equipment’s rail pressure range is (0~1600bar).,  The computer control system is controlled by industrial computer with windows system and touch screen (or mouse) operating system, the fuel-measurement system changes the traditional measurement method by glass graduate, it adopts sensor for fuel-measurement. Fuel mass will ne measured at real time and displayed at screen, the error precision is 0.1ml, data can be searched and generates date as well as be save automatically . This product with reliable performance, accurate measurement, as well as equipped with organic glass protective door which is convenient to operate and safe to observe.

Characteristics:

1. Real-time control by industrial computer with windows system,

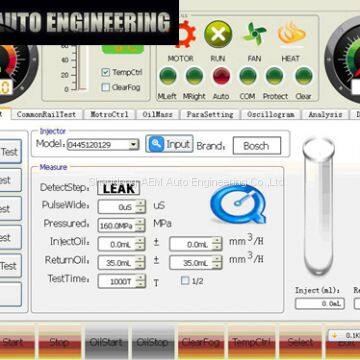

2. Fuel mass is measured by sensor and displayed on  19.5” display.

4. Real-time measure and control of rail pressure, with overpressure protection function.

5. The pulse width and frequency of injector’s driving signal are adjustable.

6. Injection time(s) of injector can be set at will.

8. Short-circuit protection.

9. Accurate measurement, easy operation, low noise and energy-efficient.

10. The fuel temperature control system adopts 2P presser force refrigeration

Test function

1. Detection on sealing performance of common rail fuel injector.

2. Detection on magnetic valve performance of common rail fuel injector.

3. Observation for atomization of common rail fuel injector.

4. Detection of uniformity of fuel quantity of common rail fuel injector.

  5. Test on starting quantity of fuel of high-pressure common rail injector.

6. Test on full-load quantity of fuel of common rail injector.

7. Test on idling quantity of fuel of common rail injector.

8. Test on pre-injection of high-pressure common rail injector.

9. Test on user-defined quantity of fuel of Test on pre-injection of high-pressure common rail injector.

10. Detection on sealing performance of common rail pipe

11. Inspection on safety valve performance of common rail pipe

12. Inspection on pressure sensor performance of common rail pipe

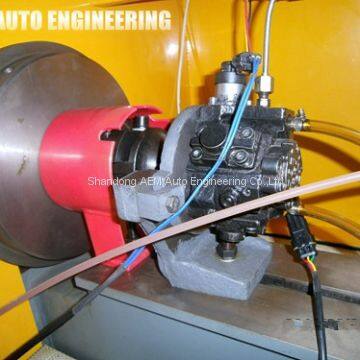

13. Detection on sealing performance of common rail pump

14. Detection on common rail pressure of common rail pump

15. Detection on fuel supply of common rail pump

Technical parameter

             1. Main motor power: 7.5KW, 11KW,15KW,

2. Range of speed of test bench: 0～4000RPM

3. Test bench steering: Forward/reverse

4. Testing frequency of common rail fuel injector: 0～100HZ

5. Pulse width: 0.01～30ms

6. Pressure range: 0～200Mpa

7. Fuel supply pressure: 0～1.6Mpa

8. Fuel suction pressure : -0.1～0Mpa
