Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Optical Fiber Cable Central Core Tube-type Optical Fiber Cable GYXTW
Optical Fiber Cable Central Core Tube-type Optical Fiber Cable GYXTW
Negotiable
MOQ: 1 Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
TOTAL
Model Number:
GYXTW
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Central Core Tube-type Optical Fiber Cable GYXTSNegotiableMOQ: 1 Meter -
Central Core Tube-type Optical Fiber Cable GYXTANegotiableMOQ: 1 Meter
-
Central Core Tube-type Optical Fiber Cable GYXTYNegotiableMOQ: 1 Meter
-
Loose Tubes Stranding Type Optical Fiber Cable GYTY53NegotiableMOQ: 1 Meter
-
Cat6 Cable Shielded for OutdoorNegotiableMOQ: 1 Meter
Place of Origin
Shanghai, China
Brand Name
TOTAL
Model Number
GYXTW
Type
Cat 6a

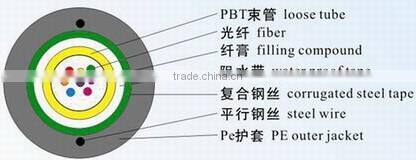

Product Description
| Feathers | ||
| The unique extruding technology provides the fibers in the tube with good flexible and bending endurance. | ||
| The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties. | ||
| Double-sided PE corrugated steel tape armored. Parallel double steel wire as strength member. | ||
| Multiple water-blocking materials filling provides dual water-blocking function. | ||
| Compact structure, lightweight and good crushes resistance. | ||
| Installation: | ||
| • By duct, aerial and direct burial | ||
| Technical parameter: | ||
Fiber count(core) | 2~12 | |
| Outer diameter(±0.5mm) | 7.8~ | |
| Weight (Kg/Km) | 85~ | |
| Minimum tensile strength (N) | Short-term | 1500 |
| Long-term | 600 | |
| Crushing (Min) (N/100mm) | Short-term | 1000 |
| Long-term | 300 | |
| Bending radius | Static: 10 times of diameter | |
| Dynamic: 20 times of diameter | ||
| Temperature range(0C) | -40~+60 | |
