Loose Tubes Stranding Type Optical Fiber Cable GYTY53

Name: Loose Tubes Stranding Type Optical Fiber Cable GYTY53
Brand: TOTAL
SKU: 143613442
Availability: InStock

Negotiable MOQ: 1 Meter (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

TOTAL

Model Number:

GYTY53

Shanghai Total Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name TOTAL

Model Number GYTY53

Type Cat 6a

Product Description

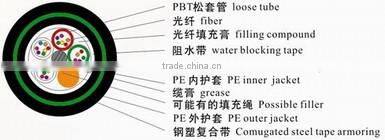

Structure: For the strengthening of the middle wire, PBT fiber-circular casing around package, the cable core filled ointment, longitudinal band and PE kits, water blocking jacket, outsourcing wrinkles with steel-plastic composite armor, and PE jacket.
(The main mechanical properties):
Fiber	Fiber Core Unit	Core Number (Max)	Outer diameter(±0.5mm)	Weigh (Kg/Km)	Minimum tensile strength (N)	Crushing (Min) (N/100mm)	Fiber Count (core))
GYTY53 2-36core	2-36	6	6	13.2	198	1000/3000	1000/3000
GYTY53 38-72core	38-72	6	12	14.8	240	1000/3000	1000/3000
GYTY5374-96core	74-96	8	12	16.2	260	1000/3000	1000/3000
GYTY53 98-120core	98-120	10	12	17.8	320	1000/3000	1000/3000
GYTY53 122-144core	122-144	12	12	19.6	380	1000/3000	1000/3000
GYTY53 146-216core	146-216	18	12	19.6	388	1000/3000	1000/3000
(Laying mode): (Direct burial)
(operating temperature): -40℃~+60℃
Application: Long distance and interoffice communication
(Features):	1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
	2.Core cable filled ointment to ensure that the vertical water blocking effect.
	3.Loose pieces of casing around the center of the SZ-cutter.
	4.Double tidal sheath structure, improve the cable-side pressure, impact resistance.
