Central Core Tube-type Optical Fiber Cable GYXTS

Name: Central Core Tube-type Optical Fiber Cable GYXTS
Brand: TOTAL
SKU: 143613436
Availability: InStock

Shanghai Total Industrial Co., Ltd.

Negotiable MOQ: 1 Meter (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

TOTAL

Model Number:

GYXTS

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name TOTAL

Model Number GYXTS

Type Cat 6a

Number of Conductors 6

Product Description

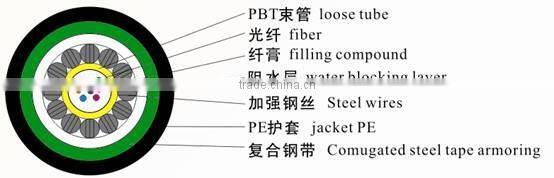

Structure: PBT for the middle-casing filled with water blocking cable paste, packets around 12 (or 10 or 8) uniform circular wire strands, outsourcing Steel – bonded (PSP) polyethylene sheath.
Quantity of fibers: 2~12
Looae tube: 2.0~ 3.0
Outer PE jacket: 1.8~2.5
Outer diameter (mm): 10.5
Approximated cable weight (kg/km): 110
Laying mode: Duct, Aerial
Operating temperature: -40℃~+60℃
Application: Long distance and interoffice communication
(Features):	1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
	2.Compact, so that the cable is well-positioned to bending performance.
	3.Wire-side pressure Armored excellent performance, and a bullet-proof capability.
	4.Double coated strip tide, and has lateral pressure.
(The main mechanical properties):		Allow tensile force (N)	short-term	1500
			long-term	600
		Allow squash Force ((N/100mm)	short-term	1000
			long-term	300
		Min bend radius ((D: mm)	Static	10D
			Dynamic	20D
