Loose Tubes Stranding Type Optical Fiber Cable GYSTS

Name: Loose Tubes Stranding Type Optical Fiber Cable GYSTS
Brand: TOTAL
SKU: 143613430
Availability: InStock

Negotiable MOQ: 1 Meter (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

TOTAL

Model Number:

GYSTS

Shanghai Total Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name TOTAL

Model Number GYSTS

Type Cat 6a

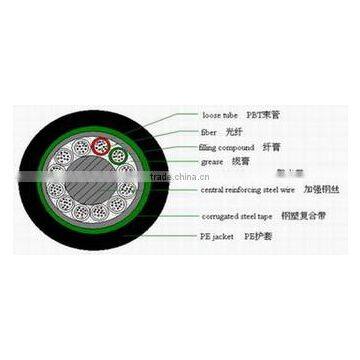

Structure: For the strengthening of the middle wire, PBT fiber-circular casing around package, the cable core filled ointment, with water blocking outsourcing, steel-plastic composite armor with wrinkles, and PE jacket.
(The main mechanical properties):
Fiber Count (core)		Fiber core (Unit)	Fiber Number (Max)	Outer diameter (±0.5mm)	Weigh (Kg/Km)	Minimum tensile strength (N)	Crushing (Min) (N/100mm)
GYTS 2-30 core	2-30	5	6	9.6	100	600/1500	300/1000
GYTS 32-36 core	32-36	6	6	10.2	115	600/1500	300/1000
GYTS 38-60 core	38-60	5	12	11.6	150	600/1500	300/1000
GYTS 62-72 core	62-72	6	12	12	170	600/1500	300/1000
GYTS 74-96 core	74-96	8	12	14.2	220	600/2000	300/1000
GYTS 98-120 core	98-120	10	12	15.4	260	600/2500	300/1000
GYTS122-144 core	122-144	12	12	17.6	300	600/2500	300/1000
(Laying mode): (Duct, Aerial)
(operating temperature): -40℃~+60℃
Application: Long distance and interoffice communication
(Features):	1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
	2.Core cable filled ointment to ensure that the vertical water blocking effect.
	3.Loose-tube (filled with rope) to strengthen the focus on the central pieces of SZ-cutter.
	4.Double coated strip tide, and has lateral pressure.
