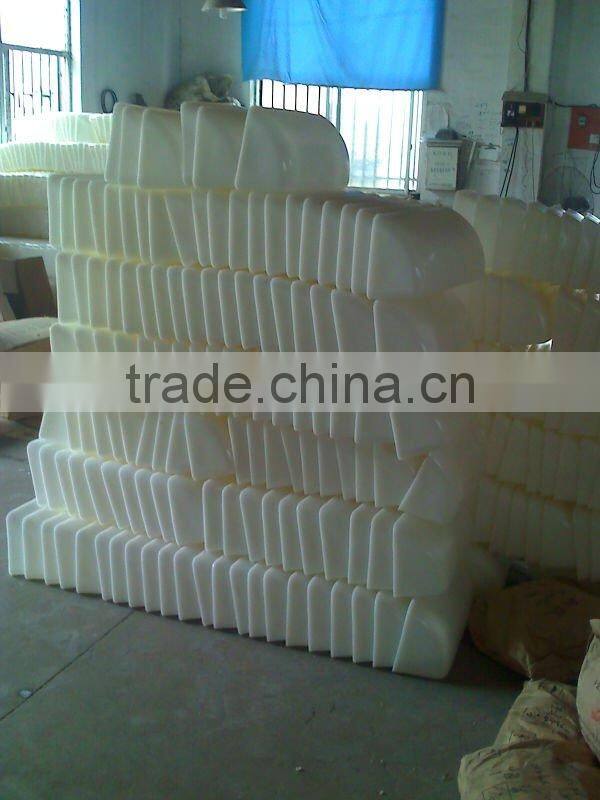

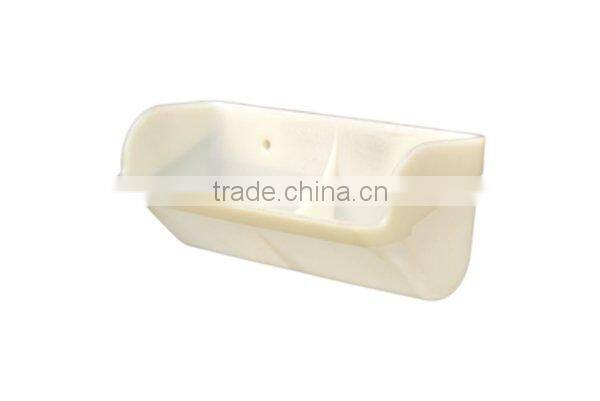

HDPE Elevator Bucket

Features:

1High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3Good pliability , low product damage percent of only 1.
4No spark caused in operation, avoid the possibility of dust exploration.
5Clean discharge, wide temperature applications.

Technical Index:

1Method of Manufacture : Injection molded.
2Drilling: Free of charge. Special drilling is offered according to customers demand. (For detailed drilling specifications, pls refer to the related specification chart)
3Bucket Spacing : Minimum bucket spacing has historically been nominal projection plus+50mm
4Installation:Norway flat head elevator bolts, flanged bolt, sabre-tooth bolt, and belt bolt.
5.Sanitary Standard: FDAapprovalnon toxic and no causticity itselt, suitable for food industry.

Physical and Chemical Properties of HDPE

ADensity: 0.9350.960 g/cm2
BMechanical properties: Rupture strength: 900 N/cm2 Extensibility at break: 300%
CCircumstance Temperature Range: -50+80 Heat-resisting Properties : Melting Point:136
Vicat Softening Point: 134 Brittle Temperature :≤-70 Coefficient of Heat Expansion : 1.5×10-14m/ Thermal Deformation Temperature : 85
DFriction Properties : Average rate of Friction : ≤1.32 Coefficient of Friction : 0.080.12
ESparks resulted form abnormal collision will not occur, nor does the electric discharge because of strong static electricity electrostatic charge caused by friction in the operation.
Volume Resistivity : ≤7×10¹⁵Ω·cm

Physical and Chemical Properties of Nylon:

ADensity : 1.14g/cm2
BMechanical Properties : Tensile Strength:82.7Mpa
xtensibility at break : ≥300%
CCircumstance Temperature Range : -40+105 Heat-resistance Properties : Melting Point: 255 Brittle Temperature : -80 Coefficient of Heat Expansion : 7×10-5m/ Thermal Deformation Temperature : 255 (0.5×106Pa)
DVolume Resistivity : 1×10¹⁵g/cm2

PU buckets should not be used on the following:
1.Materials over 100
2.Large dense material such as gravel and ore over 3/8" diameter.

If you need specific product standard, please contact us at any time
