Specifications
It's suitable for chain conveyors mixed by vertical and horizontal transmission. It's widely used in the seed and food processin

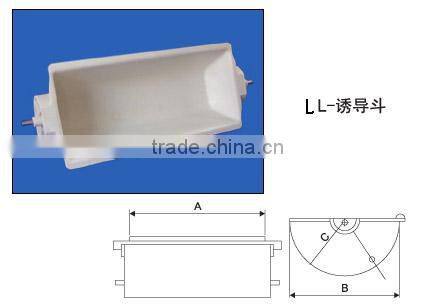

Specification Chart
Model | A(mm) | B(mm) | C(mm) | Capacity |
LL 6323 | 632 | 236 | 120 | 11.00 |
LL 4013 | 406 | 133 | 69 | 2.00 |
LL 3921 | 390 | 218 | 120 | 4.80 |
LL 3821 | 380 | 213 | 125 | 4.80 |
LL 3319 | 330 | 198 | 103 | 4.0 |
LL 3219 | 330 | 200 | 110 | 3.19 |
LL 3115 | 310 | 150 | 75 | 2.30 |
LL 2619 | 260 | 190 | 78.5 | 2.34 |
LL 2412 | 246 | 122 | 60 | 1.20 |
If you need specific product standard, please contact us at any time.
Features:
1.High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2.Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3.Good pliability , low product damage percent of only 1.
4.No spark caused in operation, avoid the possibility of dust exploration.
5.Clean discharge, wide temperature applications.
Technical Index:
1.Method of Manufacture : Injection molded.
2.Drilling: Free of charge. Special drilling is offered according to customers demand. (For detailed drilling specifications, pls refer to the related specification chart).
3.Installation:Norway flat head elevator bolts, flanged bolt, sabre-tooth bolt, and belt bolt.
4.Sanitary Standard: FDA approvalnon--toxic and no causticity itselt, suitable for food industry.
