Bottomless Elevator Bucket for Elevator

Name: Bottomless Elevator Bucket for Elevator
Brand: HENGTONG
SKU: 143589260
Availability: InStock

Zhenjiang New Hengtong Conveying Equipment Co., Ltd.

Bottomless Elevator Bucket for Elevator thumbnail-1

Bottomless Elevator Bucket for Elevator photo-1

US$ 1 - 2 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HENGTONG

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HENGTONG

Specifications

It's suitable for chain conveyors mixed by vertical and horizontal transmission. It's widely used in the seed and food processin

Bottomless Elevator Bucket

Material: HDPE, Nylon

Several bottomless bucket and one bucket consists of one group and theyre installed in a very close spacing to make the material elevate continuously.

Usage:

1. Suitable for high-speed centrifugal discharge.

2. Recommended minimum bucket spacing: Buckets spacing in one groupC1mm; Bucket spacing between the groups Bucket Projection BHeight of the back wall C +25mm.

3. Recommended elevator velocity ≤3.5m/s.

4. Recommend using "Capacity (L)" as usable capacity for engineering purpose

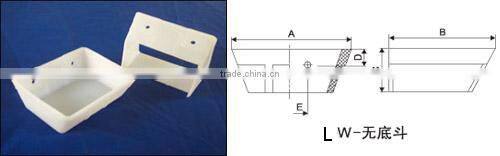

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	No. of holes	Hole Diameter	Capacity(L)	Remarks
LW0706	72	62	30	14	30	2	7	0.08
LW1109	110	92	50	20	60	2	7	0.21
LW0907	90	78	33	15	40	2	7	0.18	improved type,which can effectively reduce backlegging.
LW1109A	110	92	45	22	60	2	7	0.25
LW1310	130	102	45	20	70	2	7	0.36
LW1311	130	110	45	18	70	2	7	0.36
LW1812	186	125	60	25	90	2	9	0.85

Features:

1High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3Good pliability , low product damage percent of only 1.
4No spark caused in operation, avoid the possibility of dust exploration.
5Clean discharge, wide temperature applications.

Technical Index:

1Method of Manufacture : Injection molded.
2Drilling: Free of charge. Special drilling is offered according to customers demand. (For detailed drilling specifications, pls refer to the related specification chart)
3Bucket Spacing : Minimum bucket spacing has historically been nominal projection plus+50mm
4Installation:Norway flat head elevator bolts, flanged bolt, sabre-tooth bolt, and belt bolt.
5.Sanitary Standard: FDAapprovalnon toxic and no causticity itselt, suitable for food industry
