Split Elevator Bucket for Elevator
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HENGTONG |
Product Description
Specifications
Suitable for high-speed centrifugal discharge.Split Elevator Bucket
1. Suitable for high-speed centrifugal discharge.
2. Recommended minimum bucket spacing: the width of the bucket projection "B"+50mm.
3. Recommended elevator velocity ≤3.5m/s.
4. Recommended a Capacity L as the available capacity for engineering design.

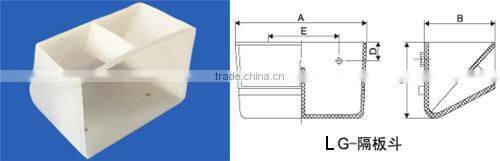

Specification Chart
Model | A | B | C | D | E | No. of holes | Dia. of holes | Capacity |
LG 1812 | 185 | 120 | 120 | 40 | 120 | 2 | 9 | 2.00 |
LG 1309 | 135 | 96 | 92 | 30 | 80 | 2 | 7 | 0.75 |
LG 1307 | 134 | 77 | 86 | 25 | 72 | 2 | 7 | 0.56 |
LG 1107 | 110 | 77 | 86 | 25 | 72 | 2 | 7 | 0.45 |
Features:
1.High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2.Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3.Good pliability , low product damage percent of only 1.
4.No spark caused in operation, avoid the possibility of dust exploration.
5.Clean discharge, wide temperature applications.
Technical Index:
1.Method of Manufacture : Injection molded.
2.Drilling: Free of charge. Special drilling is offered according to customers demand. (For detailed drilling specifications, pls refer to the related specification chart).
3.Installation:Norway flat head elevator bolts, flanged bolt, sabre-tooth bolt, and belt bolt.
4.Sanitary Standard: FDA approvalnon--toxic and no causticity itselt, suitable for food industry.
