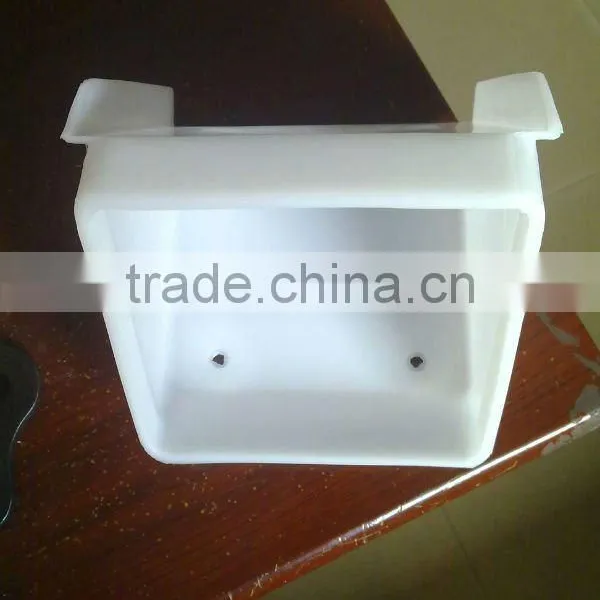

Rice Milling Elevator Bucket

Specifications

1.Material: HDPE, Nylon ,PU.
2.Suitable for low-speed gravitational discharge.
3.Recommend elevator velocity 0.5~0.8m/s.



Features:

With unique discharge, the Material from the latter bucket flows along the runner of the base of the first bucket and come into the discharge outlet. The material are discharged slowly and gently, therby reducing the broken percentage in the process of material elevating.



Usage:

1) Suieable for low -speed gravitational discharge.

2) Recommended minimum bucket spacing: the height of the bucket back wall "C"+2mm.

3) Recommended elevator velocity o.5~0.8m/s.

4) Recommended using "Capacity (L)" as usable capacity for engineering purpose.



Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Number of Holes	Hole Diameter	Capacity(L)
LM2921	294	219	200	55	113	3	9	6.2
LM2313	230	138	136	44	125	2	7	2.21
LM2017	207	179	194	60	139	2	9	3.6
LM1715	175	156	176	52	113	2	9	2.5
LM1413	143	143	172	52	93	2	9	1.6
LM1010	105	110	129	48	50	2	9	0.7
