1t,2t,6t,8t,10t,15t,20t DZL Series New Water-fire Tube Coal Fired Steam Boiler Manufacturer for Paper Industry

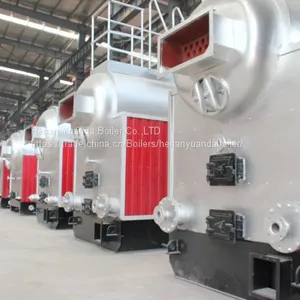

1t,2t,6t,8t,10t,15t,20t DZL Series New Water-fire Tube Coal Fired Steam Boiler Manufacturer for Paper Industry photo-1

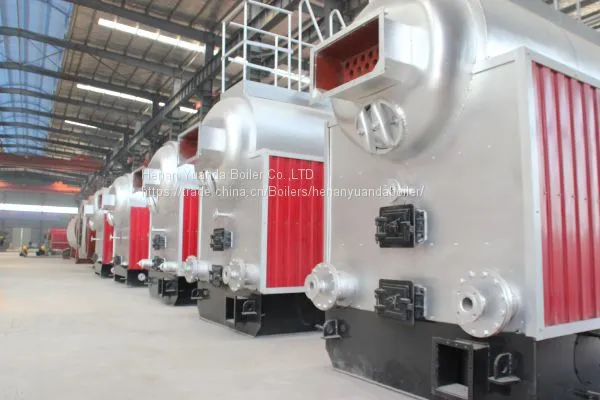

1t,2t,6t,8t,10t,15t,20t DZL Series New Water-fire Tube Coal Fired Steam Boiler Manufacturer for Paper Industry photo-2

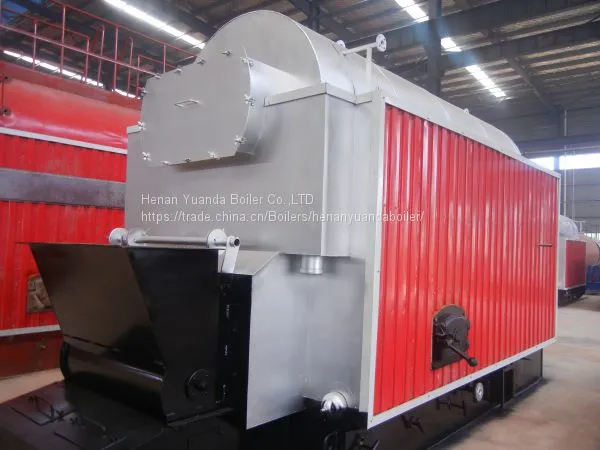

1t,2t,6t,8t,10t,15t,20t DZL Series New Water-fire Tube Coal Fired Steam Boiler Manufacturer for Paper Industry photo-3

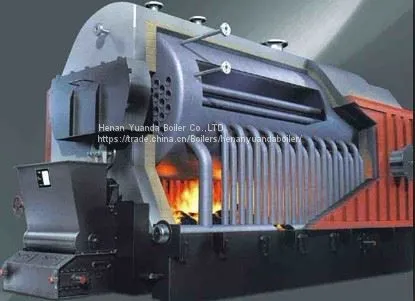

1t,2t,6t,8t,10t,15t,20t DZL Series New Water-fire Tube Coal Fired Steam Boiler Manufacturer for Paper Industry photo-4
US$ 5000 - 50000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Henan Yuanda Boiler
Place of Origin:
China
Model Number:
DZL
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
20 days
Brand Name Henan Yuanda Boiler
Place of Origin China
Model Number DZL
Certification ISO CE
Type Natural Circulation
After-sales Service Provided Engineers available to service machinery overseas
Weight 5-50T
Dimension(L*W*H) 5488*2200*2832
Condition New
Style Horizontal
Fuel Coal-fired
Usage Industrial
Output Steam
Structure Other, water-fire
Pressure Low Pressure

Product description

The DZL series new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and Professor Li Zhiguang—a famous boiler expert, professor of Harbin Institute of Technology and director of Beijing Institute of Light Boiler. It is called as a revolution of industrial boilers by domestic and foreign experts. It adopts the advanced water circulation technology, it improves water circulation speed of high temperature zone, increases the flow of bottom water, and avoids sundries deposition and scaling, with stronger water quality adaptability than other furnaces.

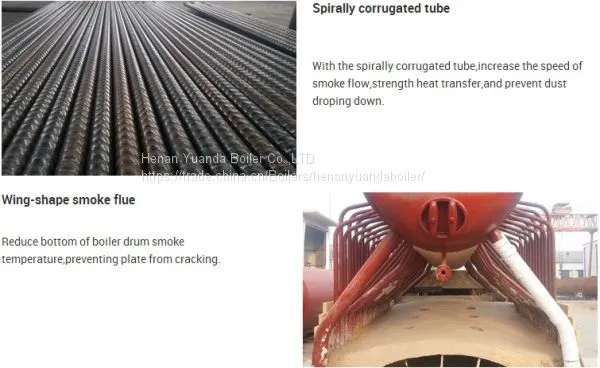

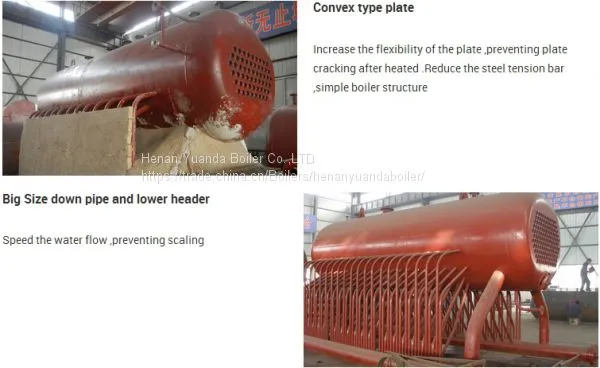

 Product features


Product parameter table

DZL Series Steam Boiler Technology Parameter Table
Boiler Model Rated  capacity Rated pressure Feed water temperature Steam temperature Active grate area Exhaust gas temp. Design efficiency Fuel consumption Main part weight Main part dimensions Delivery Mode
t/h MPa % Kg/h Ton mm
DZL1-1.0-AII 1 1 20 184 1.85 157 80 118 14.2 5488×2200×2832 Package
DZL2-1.25-AII 2 1.25 20 194 3.4 163 80 238 23.2 5900×2500×3256 Package
DZL4-1.25-AII 4 1.25 60 194 5.18 180 80 472 28 6829×2550×3484 Package
DZL6-1.25-AII 6 1.25 60 194 7.55 166 80 685 47.6 7695×3180×4074 Package
DZL10-1.25-AII 10 1.25 105 194 12 151 80 1128 56 7746×3773×3441 Assembled
DZL15-1.25-AII 15 1.25 105 194 18 161 81 1698 18.8 8650×2300×2500 Assembled
DZL20-1.25-AII 20 1.25 105 194 22.9 150 81 2241 19.1 8915×3373×3337 Assembled and Semi-Assembled
DZL30-1.25-AII 30 1.25 105 194 27.5 157.6 81 3380 25.6 7942x2440x2550 Semi-Assembled
DZL40-1.25-AII 40 1.25 105 194 34.5 162.2 81 4481 19.68 9568x2036x2568 Semi-Assembled
Notes: Coal consumption counted by standard coal, parameters for reference only, and if the technology is improved, please refer to delivery technical parameters.

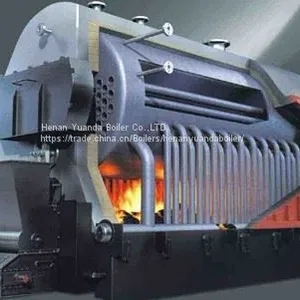

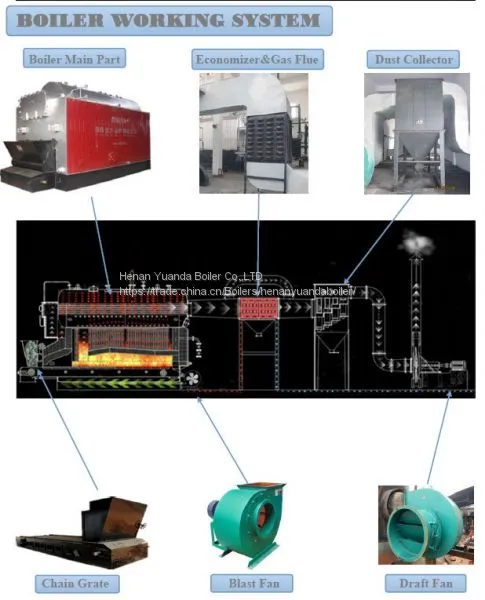

Product structure

Packaging & Delivery

  • Packaging Details:

  • The normal boiler proper package is nude ,but use the PE film. Wooden box for auxiliary equipment.Transport package according to customers special request.

  • Delivery Detail:

  • within 15-20 days after payment

Our services

1.We focus on boiler for over 60 years with high reputation in China.
2. we can manufacturing boiler according to your requirements.?
3. It is available for our engineer to service machinery overseas.
4. We can guarantee 1 years for the boiler proper,and also warranty 6 months for auxiliary equipment.
5. Any problem about the boiler, feel free to call us and we will get back to you the first time.
