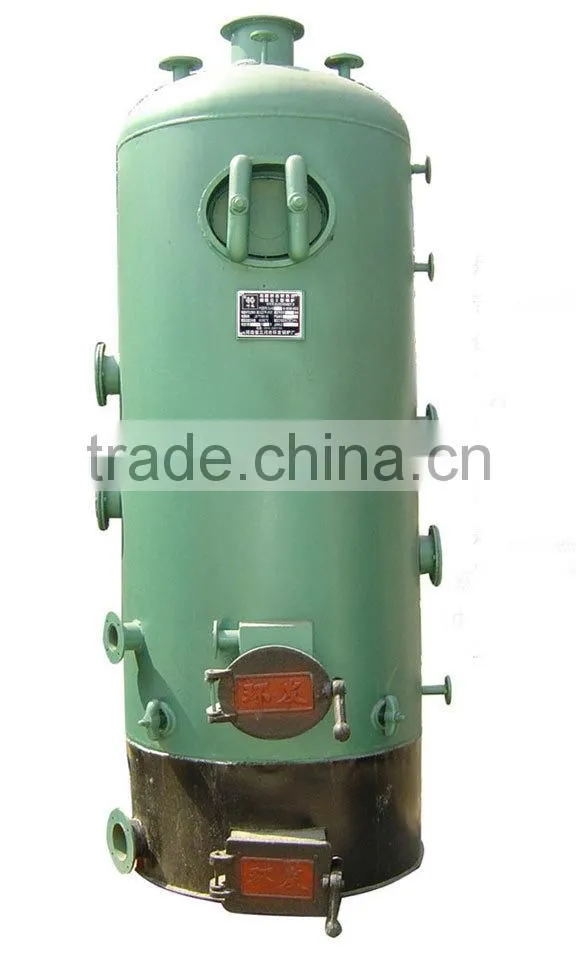

Coal Boiler
The Advantages:
1.Combine the coal gas generator with boiler by using the the coal gasfication principle, reduce the heat losses ,
improve the heat efficiency, the energy-saving effect is excellent.
2.The design of the small vertical coal boiler is unique and scientific, pollutant is lower than the national standard,the whole preocess is environmental.
3.Continous and clean steam supply, high fuel efficiency and energy-saving, application field is small factory, government,school,hotel and bathing pool.
The following is the detail parameter list of the small coal fired vertical steam boiler , different boiler's parameters are available:
Model | LS0.3-0.4-WII | LS 0.5-0.4-WII | LS 0.5-0.7-WII | LS 1-0.4-WII | LS 1-0.7-WII |
Rated steam evaporation(t/h) | 0.3 | 0.5 | 0.5 | 1 | 1 |
Steam pressure (Mpa) | 0.4 | 0.4 | 0.7 | 0.4 | 0.7 |
Steam temperature(°c) | 151 | 151 | 170 | 151 | 170 |
Fire grate area(m²) | 0.503 | 0.78 | 0.78 | 1.53 | 1.53 |
Heating surface area(m²) | 12 | 24.57 | 24.57 | 40 | 40 |
Dust concentration(Mg/m3) | 30 | 30 | 30 | 30 | 30 |
Noise degree(Db) | 73 | 73 | 73 | 73 | 73 |
Total boiler wight(t) | 1.99 | 3.03 | 3.49 | 5.56 | 5.98 |
