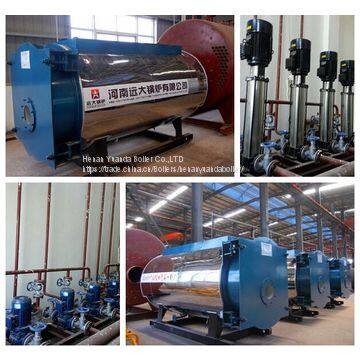

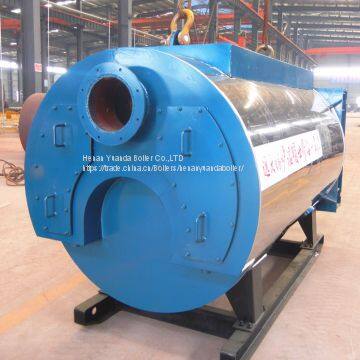

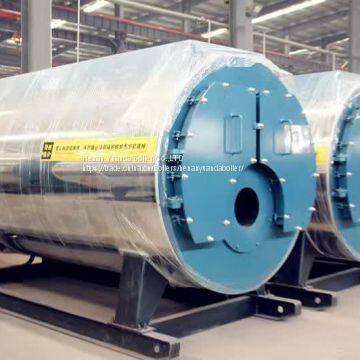

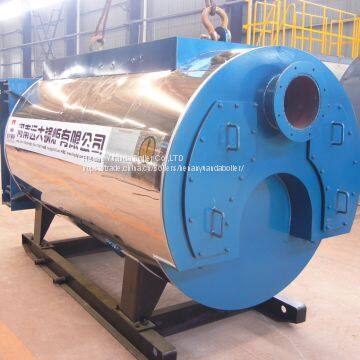

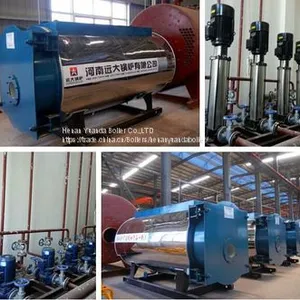

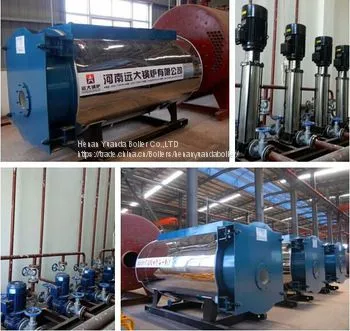

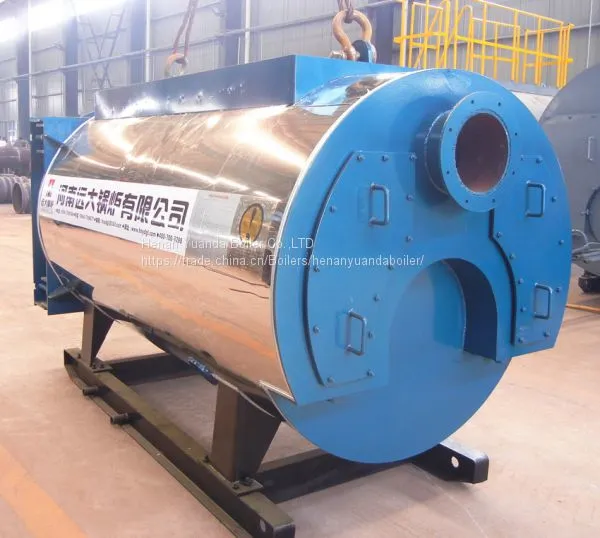

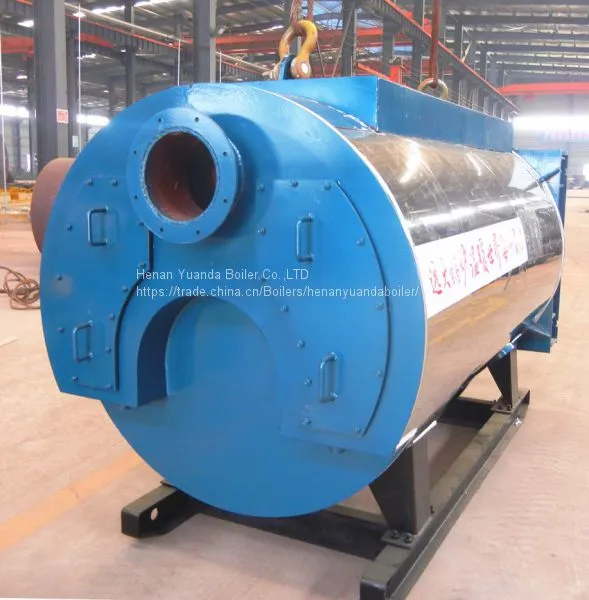

Product show
Product description
WNS series gas fired steam boiler is the resource saving and environment protecting boiler ,It is a three passes cylinder type boiler,compact structure,good-looking apparence.it adopt international latest technology for big volume combustion room design, and use brand burner machine.High efficient heat transfer and low exhaust gas temperature.1. Adopting the latest technology, it is designed with a combustion chamber with large volume. It is equipped with a world-known burner, making the combustion more sufficient and ensuring higher efficiency and lower failure rate.

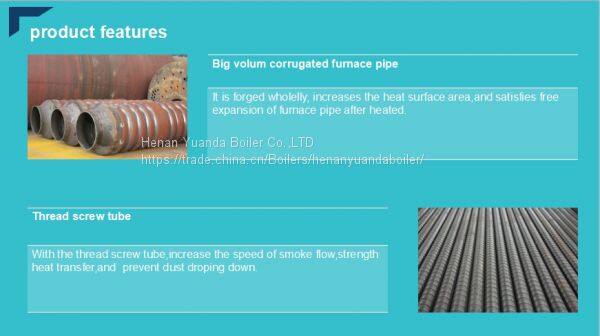

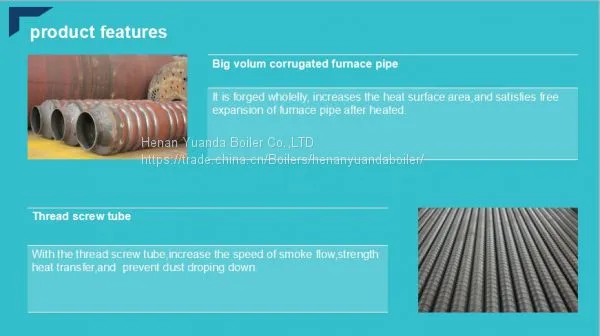

2. It adopts advanced corrugated furnace pipe structure, increasing the heat surface area, and satisfying free expansion of the furnace pipe after heating.
3. It uses a spirally corrugated tube, strengthening heat transfer and eliminating welding stress.
4. It adopts wet back structure with high reliability and low maintenance cost.
5. It has protective functions of overtemperature, overpressure, water shortage, leakage detection and flameout, ensuring safe and reliable operation.

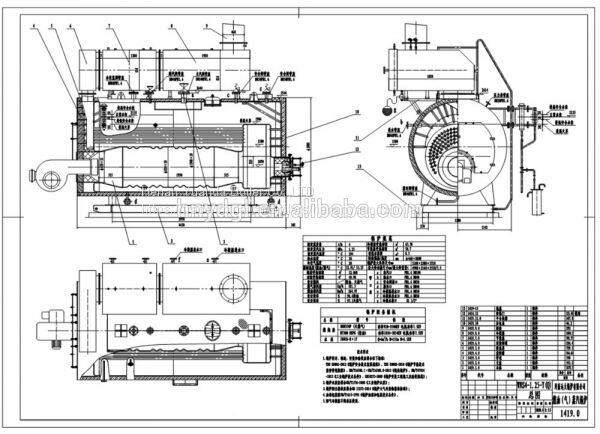

Product structure
Product parameter table
| WNS Series Steam Boiler Technology Parameter Table | ||||||||||||
| Boiler model | Rated capacity | Rated pressure | Rated Feed temperature | Rated Steam temperature | Fuel consumption | Thermal efficiency | Weight | Dimensions | ||||
| Light oil | Heavy oil | Natural gas | Liquid gas | City gas | ||||||||
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | m3/h | m3/h | % | ton | mm | |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 29 | 176 | 91 | 4.3 | 3561×1690×1910 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 57.3 | 346 | 92 | 7.2 | 4111×1950×2199 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 82 | 510 | 92.1 | 8 | 4330×2248×2564 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 109 | 682 | 93 | 9.6 | 4732×2150×2448 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 140 | 87 | 93 | 12.5 | 5970×2360×2796 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 164 | 1020 | 93.2 | 16.5 | 5500×2600×2990 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 209 | 1321 | 93.5 | 24.8 | 6450×2800×3200 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 264 | 1654 | 93.5 | 26.8 | 6800×2900×3394 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 400 | 2417 | 93.5 | 38 | 7150×3200×3540 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 520 | 3299 | 93.5 | 55 | 8200×3400×3826 |

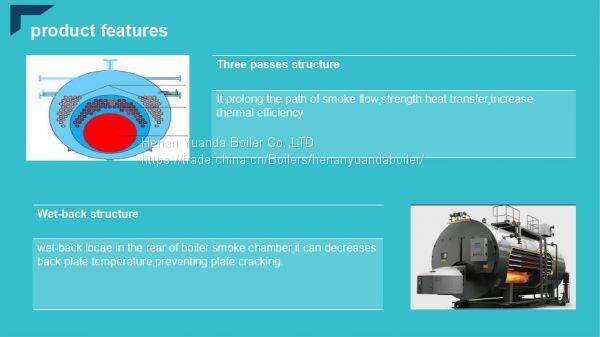

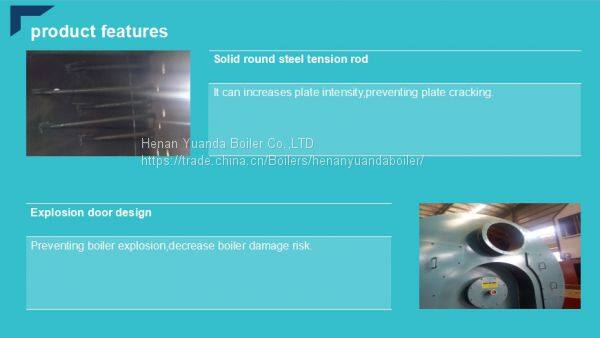

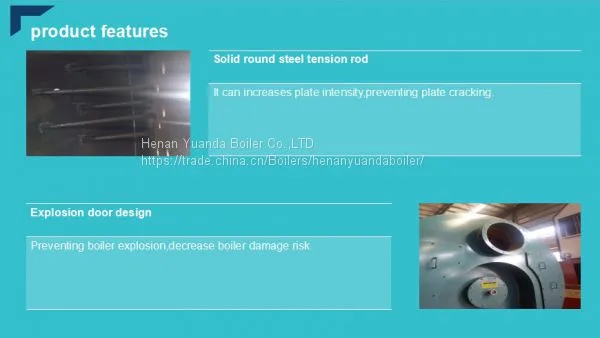

Product advantages

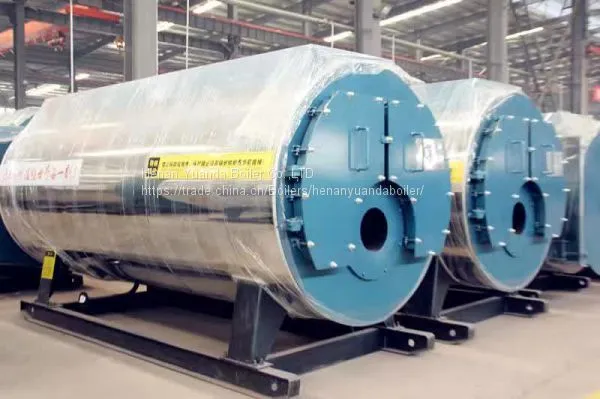

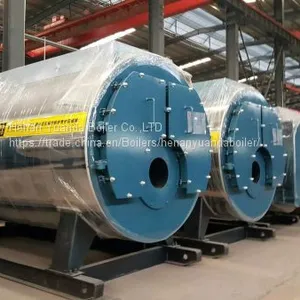

Packaging Details:
Packaging details:package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery Detail:
Within 15-20 days after payment
Our services
1.We focus on boiler for over 60 years with high reputation in China.
2. we can manufacturing boiler according to your requirements.
3. It is available for our engineer to service machinery overseas.
4. We can guarantee 1 years for the boiler proper,and also warranty 6 months for auxiliary boiler.
5. Any problem about the boiler, feel free to call us and we will get back to you the first time.

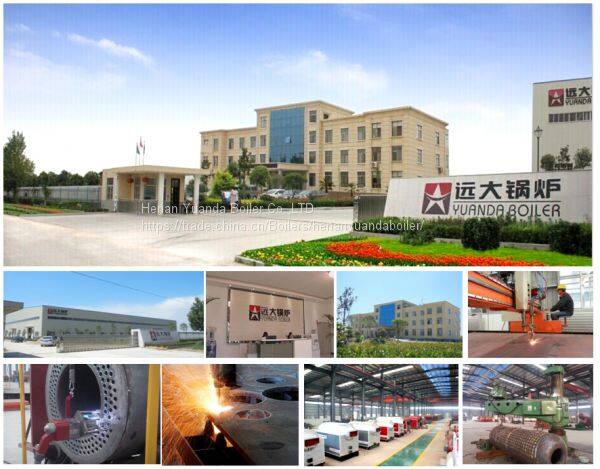

About us
Henan Yuanda Boiler Co.,Ltd was established in 1956,registered capital is RMB51.8 million.The factory located in (4th Industrial Road) Ganxiao Rd., Western Industrial,District, Xihua County, Zhoukou, Henan, China (Mainland).we are with over 50 years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China. The products series include more than 150 kinds.Our annual production capacity of industrial boilers up to 5000t/h and various of pressure vessels up to 6000t/h.So far,our product almost have covered all area in China,and export Asia,Europe,Africa,south America,etc.
Main product series:
DZL series new type water-fire tube coal/biomass fire boiler (1-100T/h、0.7-70MW）；
SZL series double drums water tube coal/biomass fire boiler (2-35T/h、1.4-25MW）；
WNS series three pass/condensing gas/oil fire boiler (0.5-20T/h、0.35-14MW）；
SZS series oil/gas fire boiler（2-40T/h、1.4-28MW）；
Z-WNS series vacuum hot water boiler（0.7-29MW）；
YY（Q）W series thermal oil boiler（100000-12000000 Kcal）；
Contact us
Dear cuatomers:
Welcome to Henan Yaunda Boiler Co.,Ltd.We have over 60 years' experience in boiler
design,technique,fabrication,installation and operation.The main product include more than 150 kinds,i believe that
you can find the product??you want to purchase.Thanks for your time for scaning our products.
We need the following
information to confirm the boiler model:
1.Boiler type:steam boiler, hot water boiler or thermal oil boiler?
2.Boiler
capacity?
3.Boiler pressure?
4.Boiler application?
After confirming these questions, we will know exactly what boiler
will be suitable for you and we will provide you our product details and quotation,ok?
Best regards,
Betty Li
Tel:+86
13783424081
Henan Yuanda Boiler Co.,Ltd!
