W0204 CE Certification Wood Jointer

W0204 CE Certification Wood Jointer photo-1
US$ 1 - 1 MOQ: 10 Units
Key Specifications
Get Latest Price
Condition:
New
Type:
Thicknesser
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Thicknesser
Place of Origin Shandong, China
Brand Name LEADER
Model Number W0204
Voltage 220v
Power(W) 1800w
Dimension(L*W*H) 830*620*1165mm
Weight 259kg
Certification CE
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Wood Jointer

Model:W0204

16" Deluxe Planer

 W0204 CE Certification Wood Jointer

Product Description
motor2.5HP(1.8kw)
cutterhead  speed5000rpm 15000cpm
number of knives3
diameter72mm
capacity     Min thickness capacity1.1mm
Max width of stock406mm
Max depth of cut4.1mm
Max stock thickness204mm
planing width406mm
feed rate16fpm,20fpm
feed rolls infeed rollssolid serrated steel
outfeed rollssolid serrated steel
table size length453mm
width406mm
packing information  packing dimensions(L*W*H)830*620*1165mm
gross weight259kg
QT/20 feet container46pcs

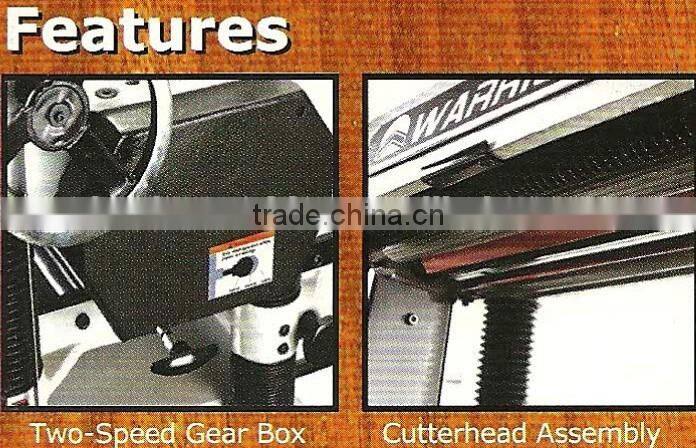

 Features

1.Table adjusts quickly and accurately with a handwheel through a positive gear drive system

2.Cast-iron and steel construction for added stability and durability

3.Steel feed rollers, serrated infeed and smooth outfeed, allow for1/8"depth of cut

4.Cutterhead features jackscrews with springs to make knife adjustment easy and accurate

5.The gearbox features an automatic chain tensioner.

6.Two steel work returns rollers on top of the machine to make transferring your wood back easier

7.Table Locks to assure no table movement while machine is in use.



W0204 CE Certification Wood JointerW0204 CE Certification Wood JointerW0204 CE Certification Wood Jointer



W0204 CE Certification Wood Jointer
