Home > Products > Woodworking Planing Thicknesser Machine > W0205 CE Certification Wood Planer
W0205 CE Certification Wood Planer
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Thicknesser | |
| Place of Origin | Shandong, China | Brand Name | LEADER | |
| Model Number | W0205 | Voltage | 220v | |
| Power(W) | 2200w | Dimension(L*W*H) | 820*650*1165mm | |
| Weight | 237kg | Certification | CE | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

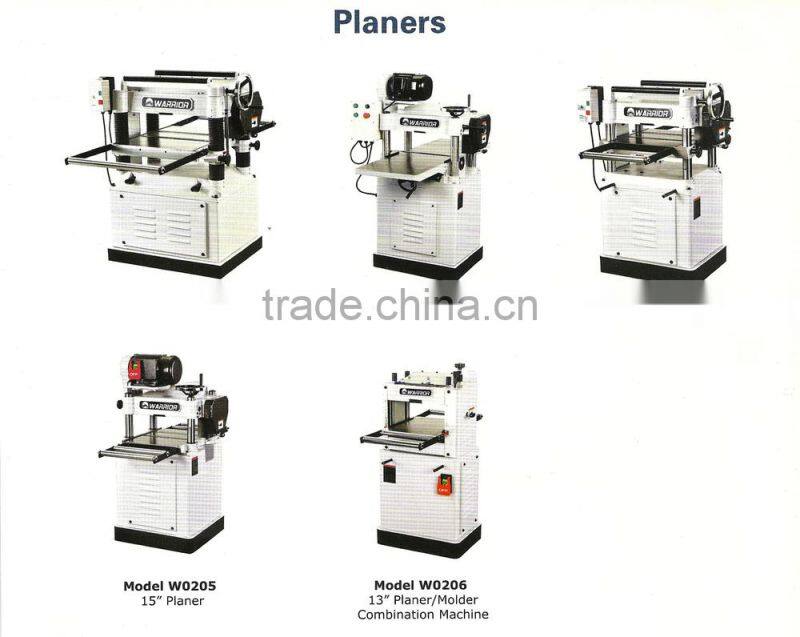

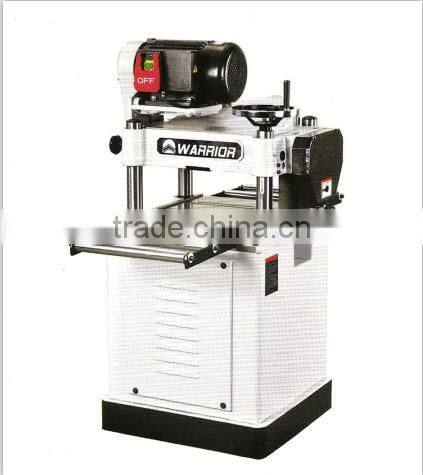

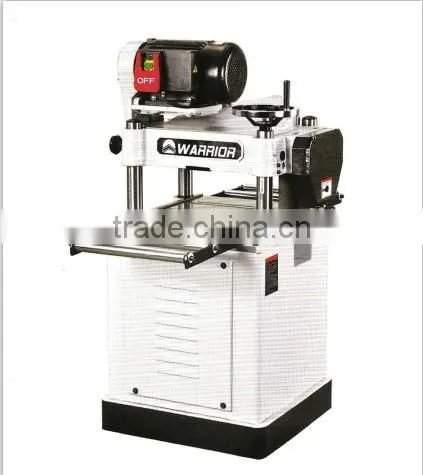

Wood Planer
Model:W0205
15" Double Surface Plancer
| motor | 3HP(2.2kw) | |
| cutterhead | speed | 5000rpm 15000cpm |
| number of knives | 3 | |
| diameter | 72mm | |
| capacity | Min thickness capacity | 1.1mm |
| Max width of stock | 381mm | |
| Max depth of cut | 4.1mm | |
| Max stock thickness | 152mm | |
| planing width | 381mm | |
| feed rate | 16fpm,20fpm | |
| feed rolls | infeed rolls | solid serrated steel |
| outfeed rolls | solid serrated steel | |
| table size | length | 505mm |
| width | 380mm | |
| packing information | packing dimensions(L*W*H) | 820*650*1165mm |
| gross weight | 237kg | |
| QT/20 feet container | 50pcs | |

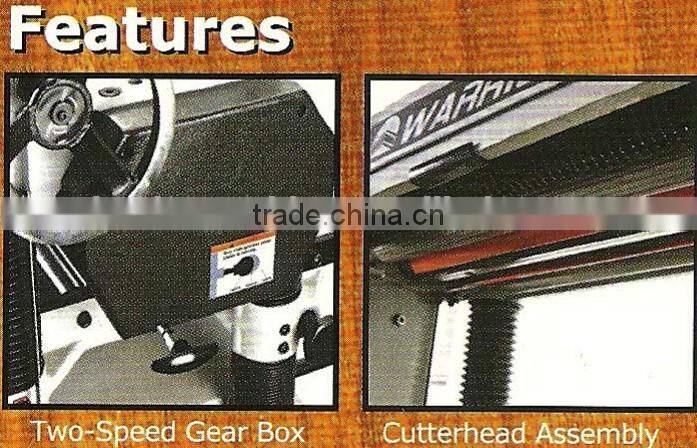

Features
1.It's "motor-on-top" design saves you time by eliminating the need to move infeed and outfeed rollers every time you make a cut
2.Oil-bath gear box takes power for the feed rollers directly from the cutterhead
3.Rugged chain and sprocket drive provides positive feeding and long running life.
4.Spiral serrated steel infeed roller and polyurethane outfeed roller keep stock moving smoothly and efficiently
5.Four precision grounded columns provide rexta stability when raising and lowering the table
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
