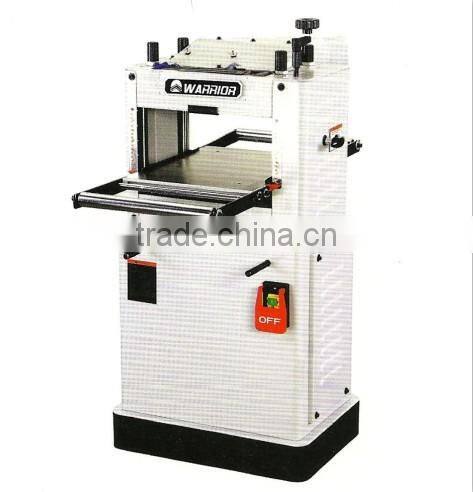

Wood Planer Thicknesser
Model:W0206
13" Planer/Moder Combination Machine
| motor | 1.5HP(1.1kw) | |
| cutterhead | speed | 5000rpm 15000cpm |
| number of knives | 3 | |
| diameter | 68mm | |
| capacity | Min thickness capacity | 2.1mm |
| Max width of stock | 330mm | |
| Max depth of cut | 5.1mm | |
| Max stock thickness | 152mm | |
| planing width | 330mm | |
| feed rate | 12fpm/20fpm | |
| feed rolls | infeed rolls | polyurethane |
| outfeed rolls | polyurethane | |
| table size | length | 457mm |
| width | 330mm | |
| packing information | packing dimensions(L*W*H) | 760*500*1160mm |
| gross weight | 145kg | |
| QT/20 feet container | 64pcs | |

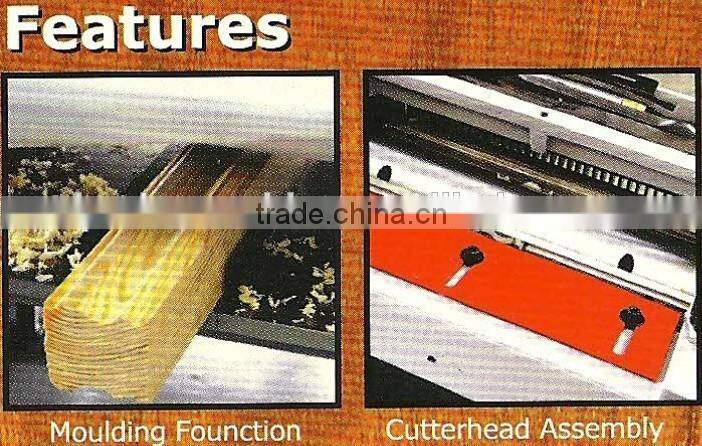

Features
1.Cast-iron table and base reduce vibration
2.Four precision grounded columns provide rexta stability when raising and lowering the table
3.Powerful 1.5HP motor is totally enclosed fan-cooled
4.Table is accurately positioned with an easy-to-use crank handle
5.Two feeding speed(12fpm and 20fpm)increase the versatility of applications
6.Rubber-coated infeed and outfeed rollers are fully adjustable
7.An angled 4" dust port designed to efficienty remove all shavings and sawdust as well as keep your dust collection hose out of the way of your workpiece.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
