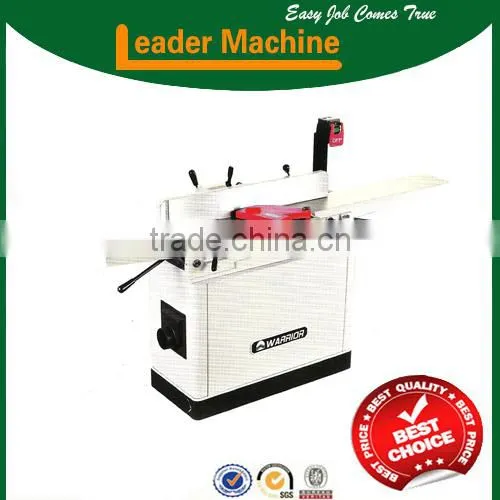

W0102 CE Certification Wood Jointer
US$ 1 - 1
MOQ: 10 Units
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADER
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
W0103F CE Certification Wood ThicknerUS$ 1 - 1MOQ: 10 Units -
W0105 CE Certification Wood Planer ThicknesserUS$ 1 - 1MOQ: 10 Units
-
W0109 CE Certification Two Side Wood ThicknesserUS$ 1 - 1MOQ: 10 Units
-
W0109D CE Certification Double Side Wood ThicknesserUS$ 1 - 1MOQ: 10 Units
-
W0110 CE Certification Woodworking ThicknesserUS$ 1 - 1MOQ: 10 Units
Condition
New
Place of Origin
Shandong, China
Brand Name
LEADER
Model Number
W0102
Voltage
220v
Power(W)
1500w
Weight
235kg
Certification
CE
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Wood Jointer
Model:W0102
8"Precision Jointer
Product Description
| motor | 2HP(1.5kw) | |
| cutting capacity | width | 203mm |
| depth | 12.7mm max | |
| rabbeting capacity | 12.7mm max | |
| cutterhead | speed | 5200rpm 20800cpm |
| number of knives | 4 | |
| diameter | 78mm | |
| table | length | 1930mm |
| length of infeed table | 1105mm | |
| length of outfeed table | 790mm | |
| width | 305mm | |
| height from floor | 840mm | |
| fence | size | 910*127mm |
| tilt in and out | 45° | |
| positive stops | 90°,45° in and out | |
| packing infromation | packing dimensions(L*W*H) |
2010*450*235mm(jointer) 930*452*647mm(stand) |
| gross weight | 235kg | |
| QT/20 feet container | 50pcs | |

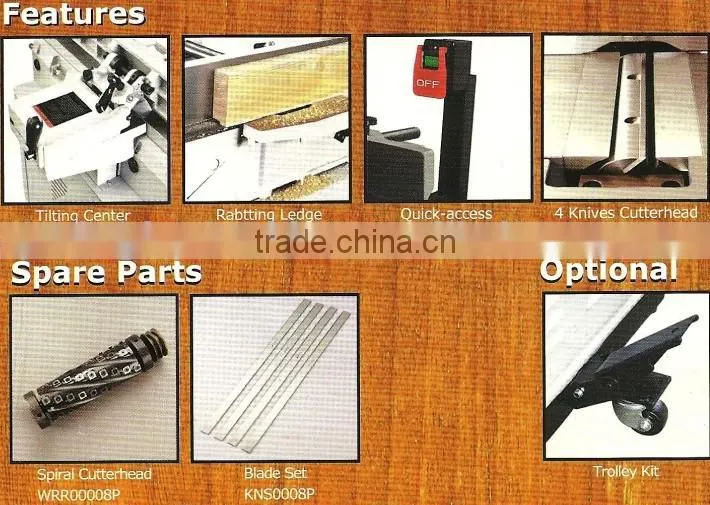

Features
1.Unique parallelogram support system allows the table to move in the same arc as the cutterhead when raised or lowered. This uniform, close clearance to the cutting blade acts as a more efficient chip breaker.
2.Cast-iron assures less vibration; cabinet stand completely encases motor and pulleys to protect from dust and shavings.
3.Specially-designed cast-iron fence is extra long for continued support throughout the cut. Fence is center-mounted and functions as a rear guard on narrow cuts
4.Modular cutterhead provides a consistently clean cut. Jack-screw arrangement allows easy replacement and adjustment of individual knives. In the event the entire cutterhead has to be removes, a new module can be fitted in place without production down-time
5.Extra-long infeed table provides a full 76-1/2" of work support
Company Information
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
Our Services
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
Customer
Packaging & Shipping
Contact
