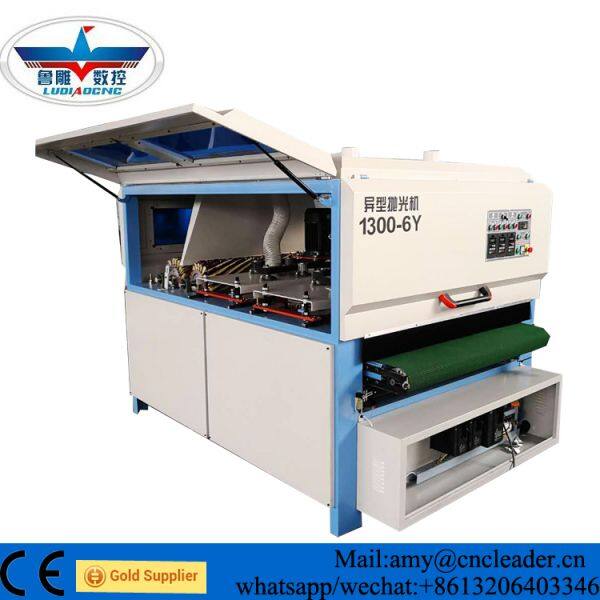

1000mm Width 4 Rollers Wood Cabinet MDF Sanding Wood Brush Polishing Sander Machine for Thailand

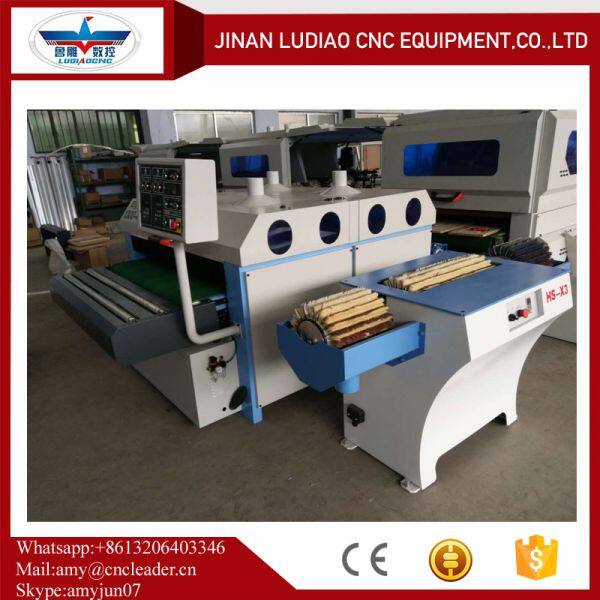

1000mm Width 4 Rollers Wood Cabinet MDF Sanding Wood Brush Polishing Sander Machine for Thailand photo-1

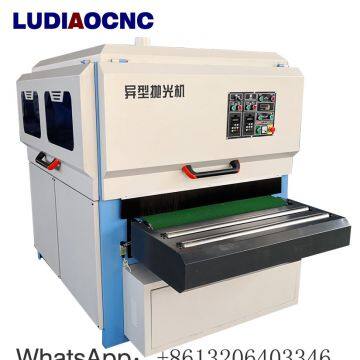

1000mm Width 4 Rollers Wood Cabinet MDF Sanding Wood Brush Polishing Sander Machine for Thailand photo-2
1000mm Width 4 Rollers Wood Cabinet MDF Sanding Wood Brush Polishing Sander Machine for Thailand photo-3
1000mm Width 4 Rollers Wood Cabinet MDF Sanding Wood Brush Polishing Sander Machine for Thailand photo-4

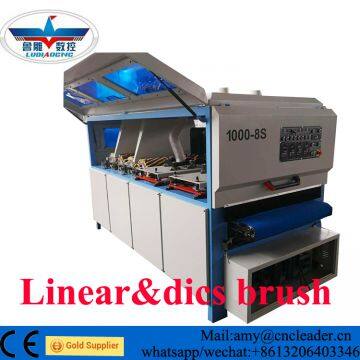

1000mm Width 4 Rollers Wood Cabinet MDF Sanding Wood Brush Polishing Sander Machine for Thailand photo-5
US$ 3800 - 4800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ludiao
Place of Origin:
China
Model Number:
ld1000-S
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Brand Name ludiao
Place of Origin China
Model Number ld1000-S
Type Bench Planer
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1year
Weight 1200kg
Dimension(L*W*H) 2800*1900*1700mm
Voltage 380
Condition New
Power(W) 10kw

1000mm width 4 rollers wood cabinet MDF sanding wood brush polishing  sander machine for Thailand


Function:



After CNC process carving, make surface or curved design more clean and smooth, remove the trimming and dust

This machine can working: Joinery board / multi layer board / particle board / integrated timber / wood / furniture / wood flooring / wooden doors and windows / arts and crafts / glass steel / wood and plastic product processing equipment preferred.


Specification of 1000mm width wood polish sanding machine


model

LD1000/1300

max working width

1000mm/1300mm

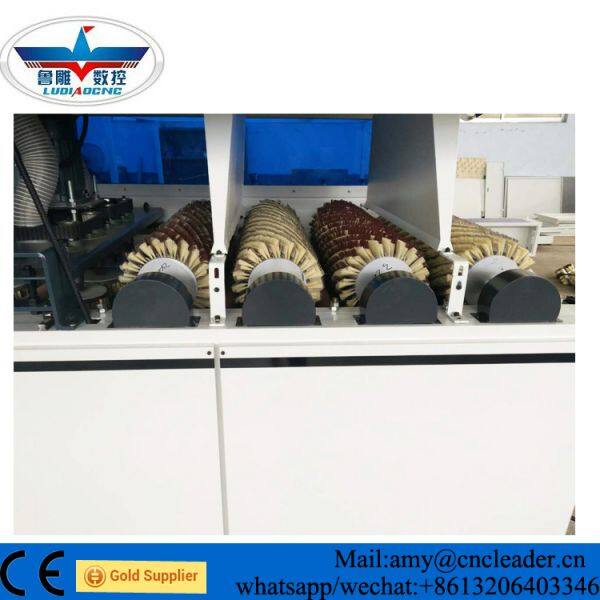

Polishing roll  brushes

2 units

Disk tray brushes

2 units

min working length

500mm

working thickness

3-110mm

feeding speed

6-30m/min

Speed

50-60m/min ,with inverter can be adjusted

Inverter

5.5KW+1.5kw

Driver motor

1 pic roller with one pic 2.2KW motor

Reducer motor

1.5kw

Table lift&down

By button adjust,driving by motor 0.37KW

total power

11kw

belt size

1000*4120/1300*4120mm

air pressure

0.6mpa

net weight

1100kg/1300kg

Voltage

220V/380 V. 3P.

package

Wooden case

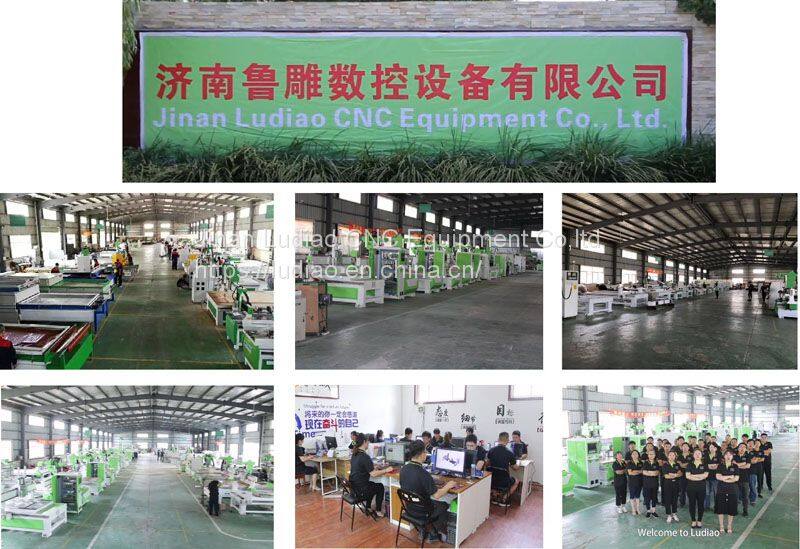

Company information
