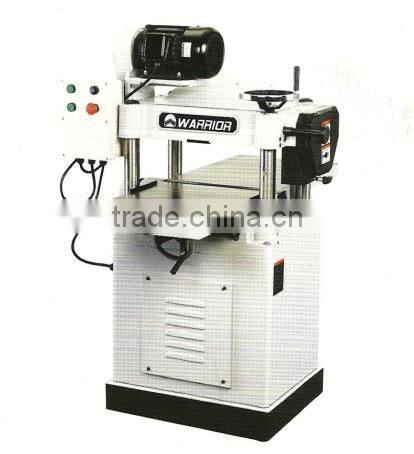

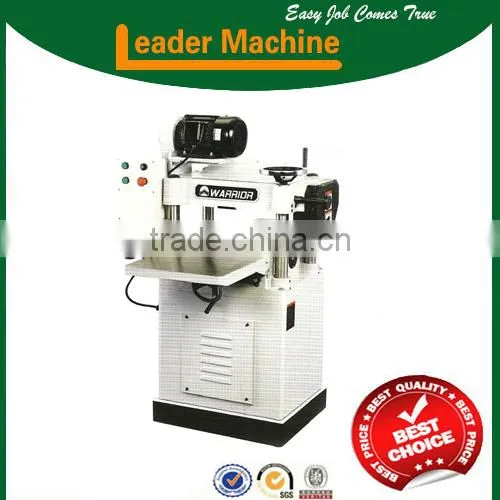

Wood Thicknesser Planer
Model:W0202
16" Double Surface Planer
| motor | upper | 3HP(2.2kw) |
| lower | 2HP(1.5kw) | |
| cutterhead | speed | 5000rpm 15000cpm |
| 4800rpm 14400cpm | ||
| number of knives | upper:3 lower:3 | |
| diameter | upper:73mm lower:73mm | |
| capacity | Min thickness capacity | 3mm |
| Max width of stock | 406mm | |
| Max depth of cut | upper:6mm lower:2mm | |
| Max stock thickness | 152mm | |
| planing width | 406mm | |
| feed rate | 16fpm,20fpm | |
| feed rolls | infeed rolls | solid serrated steel |
| outfeed rolls | polyurethane | |
| table size | length | 655mm |
| width | 406mm | |
| packing information | packing dimensions(L*W*H) | 960*780*1310mm |
| gross weight | 385kg | |
| QT/20 feet container | 18pcs |

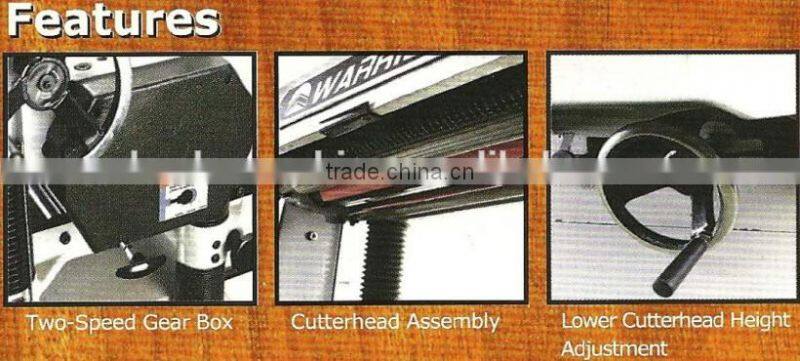

Features
1.It's "motor-on-top" design saves you time by eliminating the need to move infeed and outfeed rollers every time you make a cut.
2.Oil-bath gear box takes power for the feed rollers directly from the cutterhead.
3.Spiral serrated steel infeed roller and polyurethane out feed roller keep stock moving smoothly and efficiently.
4.Four precision grounded columns provide rexta stability when raising and lowering the table.
5.An angled 4" dust port designed to efficiently remove all shavings and sawdust as well as keep your dust collection hose out of the way of your workpiece.
We are the professional manufacture of woodworking machine since 1991 years, now we become one of the most famous manufacture and exporter in China.
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas
