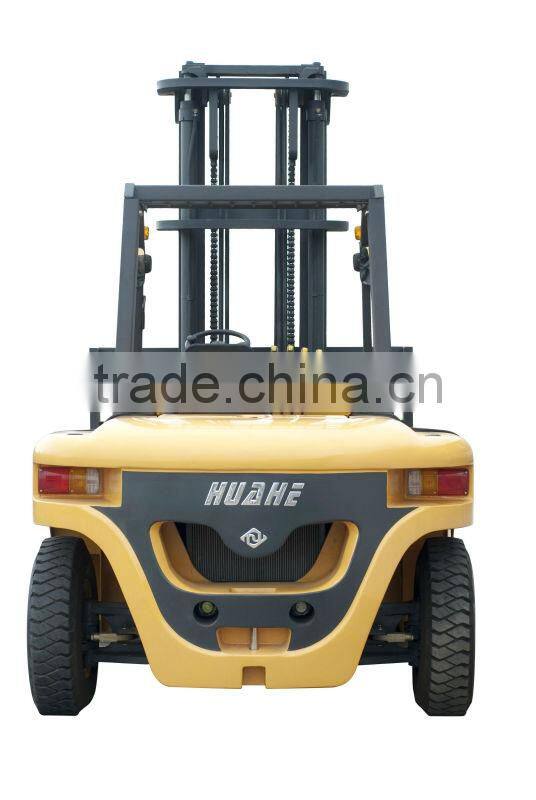

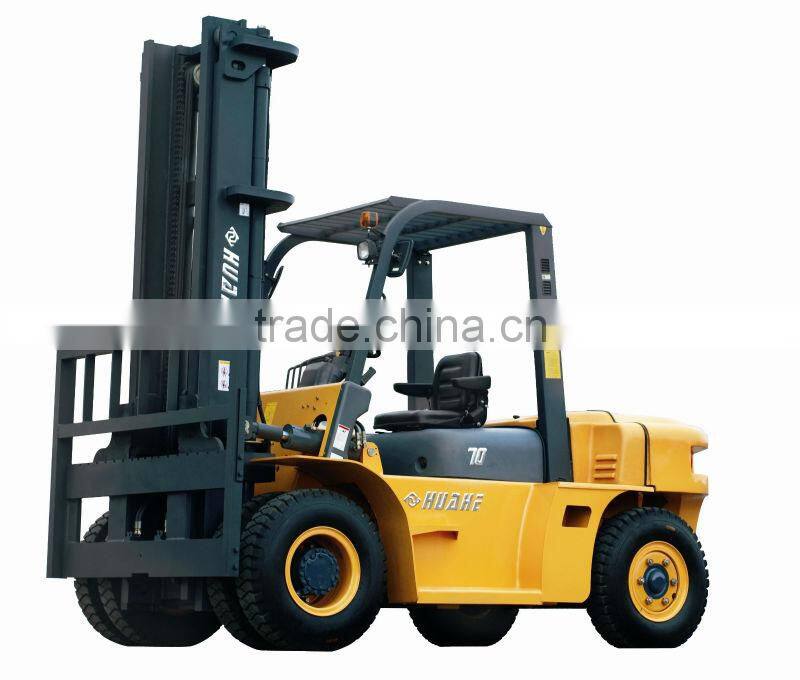

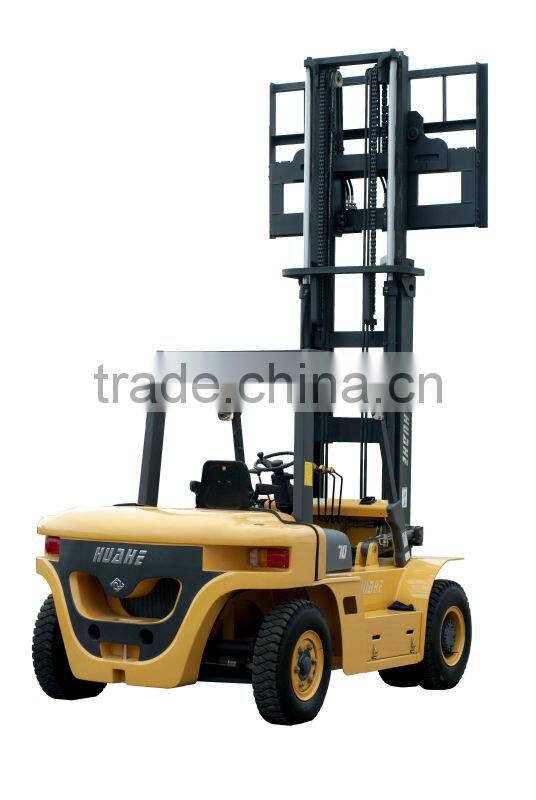

7T Huahe Diesel Forklit Truck Mast 6 Meter With Perkins Engine Sale in South Africa

7T Huahe Diesel Forklit Truck Mast 6 Meter With Perkins Engine Sale in South Africa thumbnail-1
7T Huahe Diesel Forklit Truck Mast 6 Meter With Perkins Engine Sale in South Africa photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
HUAHE
Contact Supplier Request Quote Chat Now
Huahe Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name HUAHE

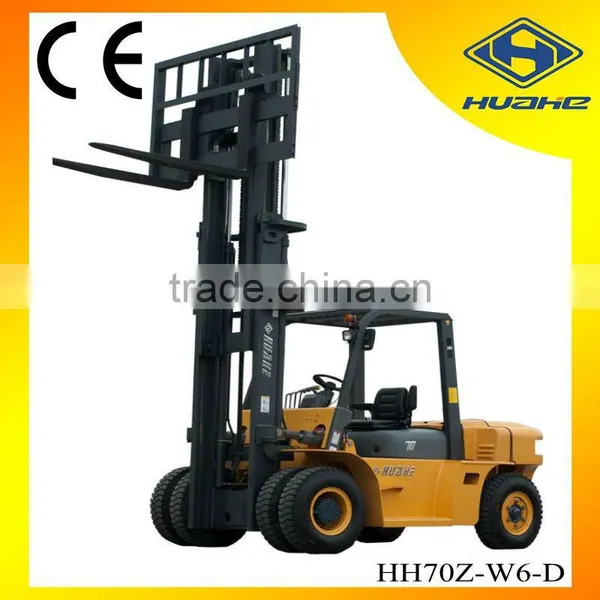

Model Number HH70Z-W6-D
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 7000KG
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1220mm
Fork Width 150mm
Overall Dimensions 3580mm*2000mm*2625mm
Certification CE





Generals

Model

Unit

HH70Z

Power type



Diesel

Rated capacity

Kg

7000

Load center

mm

600

















Dimensions

Lift height

mm

3000

Free lift height

mm

150

Fork size (L×W×T)

mm

1220×150×65

Mast inclination F/R

Deg

6°/12°

Front overhang

mm

590

Overall Dimensions

Length to face of fork

mm

3580

Overall width

mm

2010

Mast lowered height

mm

2625

Overhead guard height

mm

2250

Turning radius

mm

3370

Min. right angle aisle width

mm

3755









Performance

Travel speed

Unload I/II

Km/h

13/12

Full load I/II

Km/h

32/26

Lift speed

mm/s

460

Max. grade ability

%

20

Max. drawbar pull

Kn

40

Self weight

Kg

9350











Wheels & Tires

Tires

Front



8.25-15-14PR

Rear



8.25-15-14PR

Tread

Front Q

mm

1470

Rear S

mm

1700

Wheelbase

mm

2250

Min. ground clearance

(unload/full load)

Mast

mm

175/145

Frame

mm

190/180











Drive units & Control

Battery

V/Ah

(12V/80Ah)x2

Engine

Model



     PERKINS 110 4D

Rated output

Kw/rpm

56/2200

Rated torque

N.m/rpm

260/1650

Displacement

cc

4440

Transmission

Type



Hydraulic

Shift Fwd/Rwd



2/2

Operating pressure

Mpa

19





7T Huahe diesel forklit truck mast 6 meter with Perkins engine sale in south africa7T Huahe diesel forklit truck mast 6 meter with Perkins engine sale in south africa7T Huahe diesel forklit truck mast 6 meter with Perkins engine sale in south africa7T Huahe diesel forklit truck mast 6 meter with Perkins engine sale in south africa
