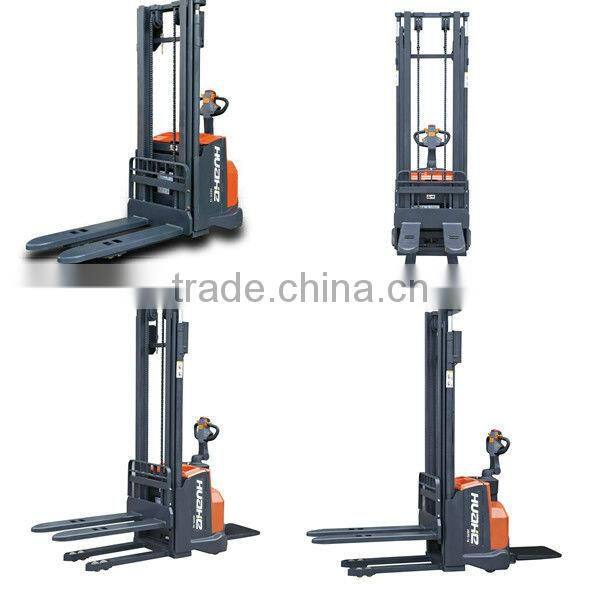

1.4T Electric Pallet Stacker With AC Control System

Name: 1.4T Electric Pallet Stacker With AC Control System
Brand: HUAHE
SKU: 143332806
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

HUAHE

Huahe Heavy Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name HUAHE

Model Number HEPS-14

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1400KGS

Max. Lifting Height 3000mm

Min. Lifting Height 85mm

Fork Length 1150mm

Fork Width 185mm

Overall Dimensions 1920mm740mmx2100mm

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

1. Curtis AC control system

2. Walkie standard, Rider option

3. Electromagnetic Brake

4. Easier operations through handle

5. Electric power steering systems

6. Suitable for storage situations

7. Used for transport and stacking of pallets in warehouses and plants

Mode	HEPS-14	HEPS-16
Capacity(kg)	1400	1600
Travelling motor	1.5KW AC	1.5KW AC
Lifting motor	2.0KW DC	2.0KW DC
Battery voltage/capacity	24V / 210Ah	24V / 210Ah
Brake type	Electromagnetic	Electromagnetic
Control system	Curtis-1230-2402	Curtis-1230-2402
EPS (electric power steering)	Standard equipment	Standard equipment
load centre-mm	600	600
Operator type	walkie-standard	walkie-standard
Rider-option	added USD	Rider-option
Lifting geight-mm	110	125
Gound clearance-mm	85	85
Standard fork width-mm	540 / 685	540 / 685
Fork length-mm	1150 / 1200	1150 / 1200
Fork thickness-mm	55	55
Fork width-mm	185	185
Overall length-mm	1830	1910
Overall width-mm	720	760
Min.turning radius-mm	1655 / 1705	1725/2130
Max.travelling speed laden-km/h	4.5	7
Max.travelling speed unladen-km/h	4.5	7
Max.lifting speed laden-m/s	0.056	0.056
Max.lifting speed unladen-m/s	0.06	0.06
Max.lowering speed laden-m/s	0.057	0.057
Max.lowering speed unladen-m/s	0.059	0.059
Gradeability laden-%	5	5
Gradeability unladen-%	7	7
Service weight with battery-kg	600	753
wheel(drive/load)	PU	PU
Wheel quantity(drive/load)	1D+4L/1D+2L	1D+4L/1D+2L
Size of steering wheel-mm	248*75	248*75
Size of loading wheel-mm	84*58	80*120
Size of balance wheel-mm	115*55	115*55
Wheel base-mm	1250 / 1300	1470 / 1520
