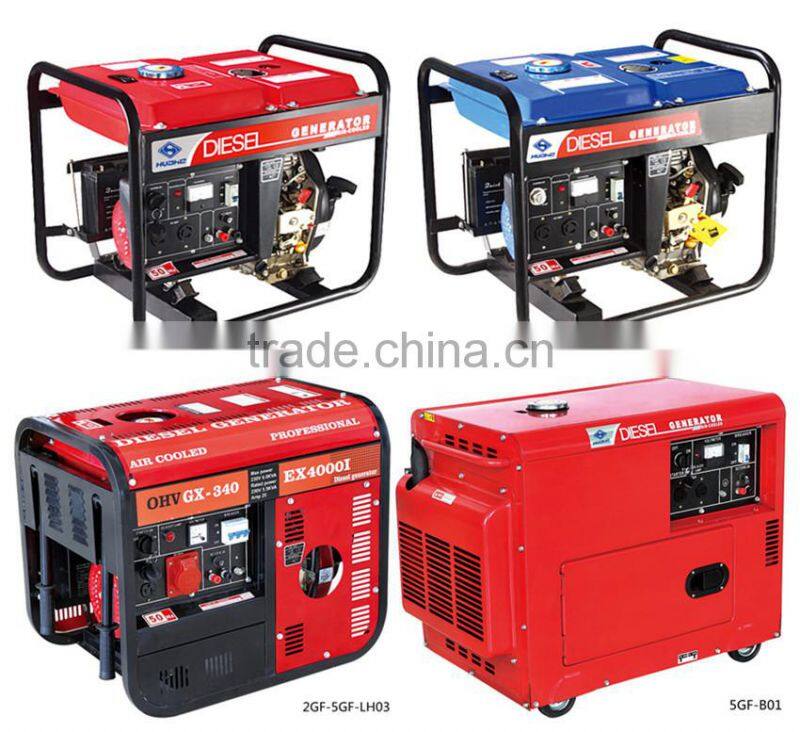

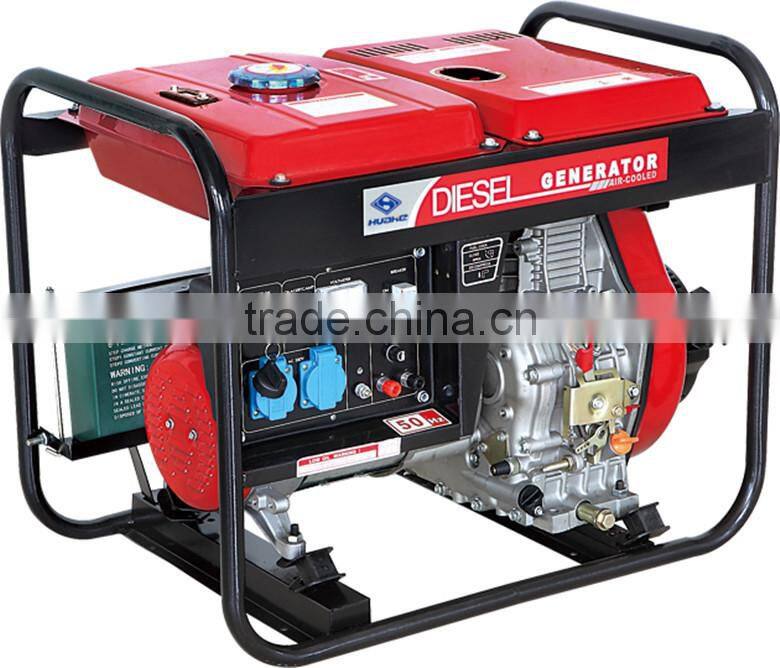

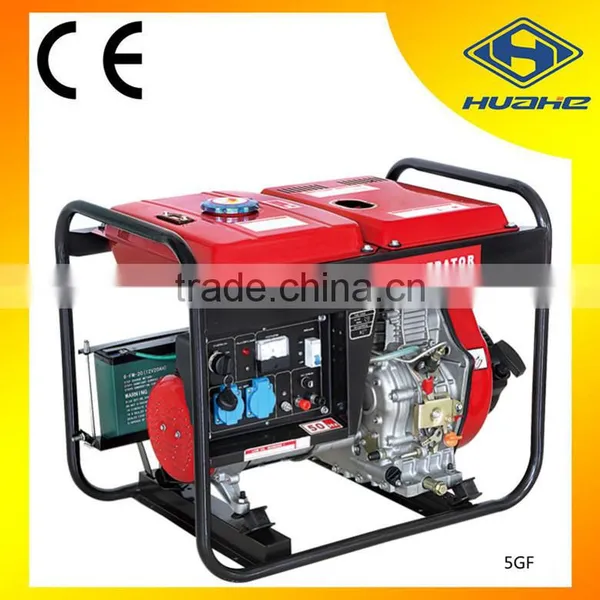

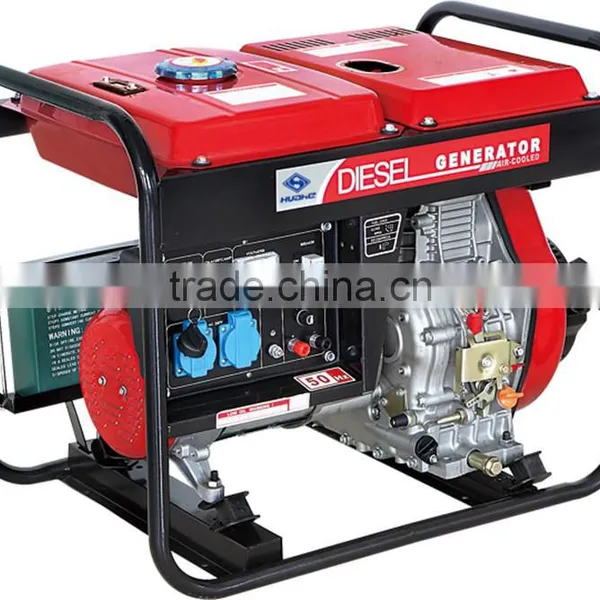

5kw open type diesel generator,battery powered generator,diesel generating
Model |
Economical type |
||
5GF | |||
|
Generator
|
Type |
Revolving field type 2 pole generator |
|
Frequency (Hz) |
50 |
60 |
|
Cont. Output (KW) |
4.2 |
5 |
|
Voltage (A.C)(V) |
230 |
240 (120) |
|
Current (A.C)(A) |
18.3 |
20.8 (41.7) |
|
Engine speed (r/min) |
3000 |
3600 |
|
Phase |
Single phase |
||
Power factor (COSΦ) |
1 |
||
Excitation system |
Controlled constant self-excitation |
||
D.C output V/A |
12V/8.3A |
||
Operation capacity |
12 hour constant operation |
||
Coupling pattern |
Straight shaft coupling |
||
Model |
186FG |
||
|
Engine
|
Type |
Direct injection vertical, 4-cycle, air-cooled diesel engine |
|
Displacement cc (cu.in) |
406(24.78) |
||
Max. output (KW/rpm) |
6.6 |
7.35 |
|
Cont. output (KW/rpm) |
5.9 |
6.6 |
|
Starting system |
Recoil start/ Electric start |
||
Governor system |
Centrifugal weight system |
||
Fuel |
Diesel light fuel (BS-AL or equivalent) |
||
Fuel tank capacity (L) |
5.5L |
||
Lube oil capacity (L) |
1.65 |
||
Bore×Stroke |
86×70 |
||
Protection system |
Low oil, warning system/Stop device (not for L-series) |
||
|
Unit
|
Noise level at 7m dB (A) |
85 |
|
Dimension (L×W×H) (mm) |
745×480×615 |
||
Dry weight (kg) |
95 |
||
1,Selling Points of the product:
5KW Open Type Key Start Diesel Generator Set with Battery
1, Reliable and durable
2, Low fault because of no ignition
3, Convenient in operation
4, Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.
5, Oil alert:Oil level under the level line,the engine stops working automatically.
6, Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.
7, Fuel meter:Show the varietal of fuel accurately.
2, Factory Show
3, The other series
4, Packing
5, Loading
6,Successive exhibition photos
7,Our factory and Product certificate
Advantages:
1.We specialized in all kinds of generators and forklift for 24 years.
2.A well-organized leader team.
3.The reliable service after sales
4.OEM is avaliable.
5.Trade manager is almost online 24 hours
