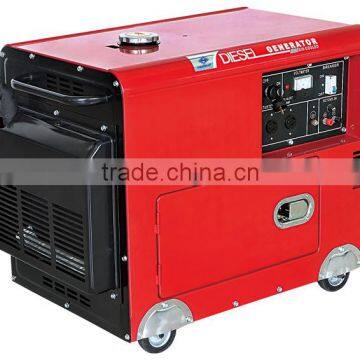

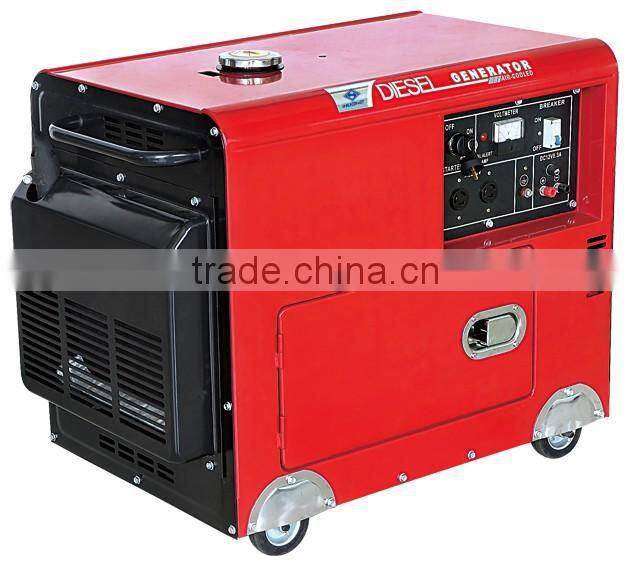

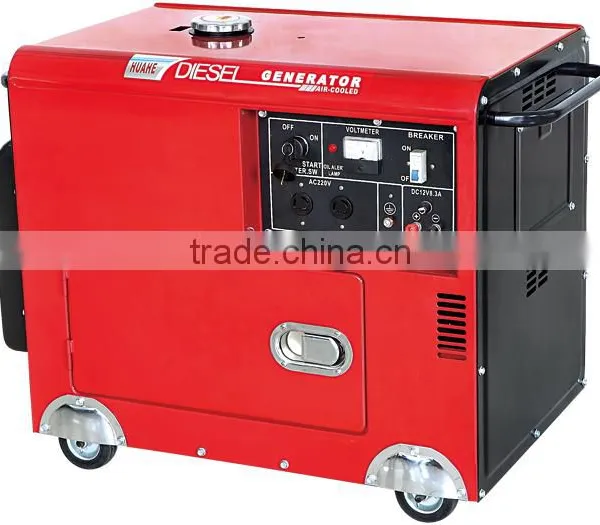

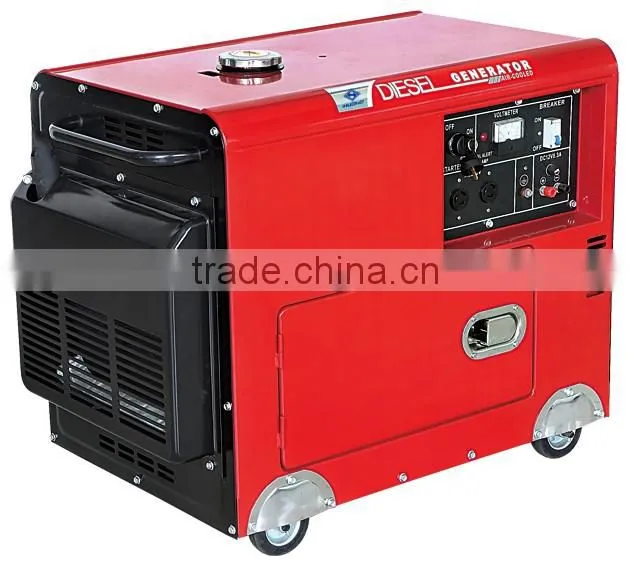

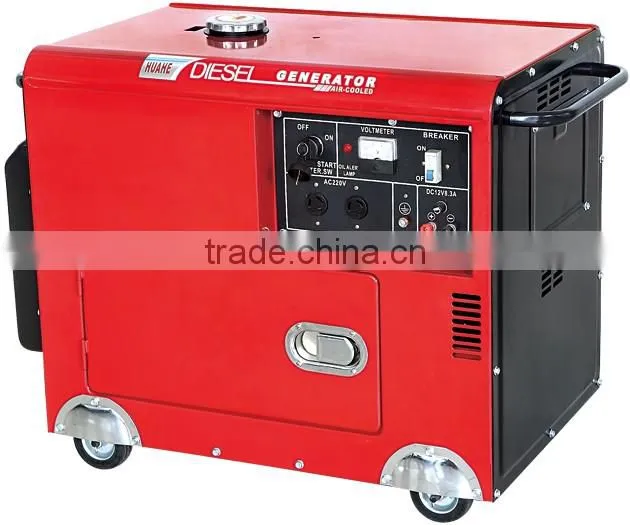

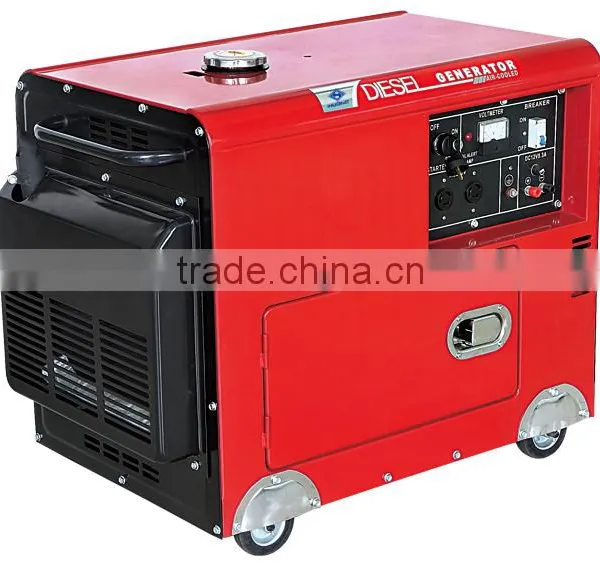

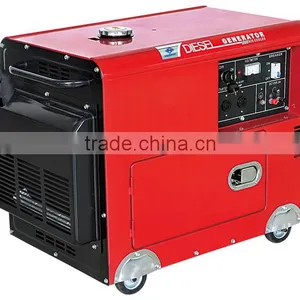

5KW silent diesel generator price, 186F engine diesel generator with wheel,diesel generator with america socket
Features
01. Low fuel consumption
02. ultra-low-noise
03. Convenient in operation
04. Long run time - up to 12.5 hours
05. Oil alert to shut down engine automatically when low oil is detected
06. Circuit breaker to stop engine automatically when overloaded
07. Can be widely used in highways, railways, airports, factories, hospitals , and much more
08. CE,ISO9001:2000 certification approved
09. One year or 500 hours warranty
10. Patent design, unique appearance and function
Specifications for this diesel generator:
Model | Silent type | ||
5GF | |||
Generator
| Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 4.2 | 5 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 18.3 | 20.8 (41.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 186FG(E) | ||
Engine
| Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 406 (24.78) | ||
Max. output (KW/rpm) | 6.6 | 7.35 | |
Cont. output (KW/rpm) | 5.9 | 6.6 | |
Starting system | Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 16 | ||
Lube oil capacity (L) | 1.65 | ||
Bore×Stroke | 86×75 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit
| Noise level at 7m dB (A) | 770 | |
Dimension (L×W×H) (mm) | 950×580×740 | ||
Dry weight (kg) | 157 | ||
Tell us your detailed requirement, to recommend you the right generator model
International certificates approved
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------
Each diesel generator set is wrapped in poly bag, then into carton. With Owners Manual in it
Standard colorful carton is available, ready for retail
Our Services
---------------------------------------------------------------------------------------------------------------------------------------------------
Strict quality control in the whole production, including raw metarial, production site, 100% test before packing.
Three reasons for choosing Huahe
-----------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------
1 kva -720kva gasoline generator
Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
