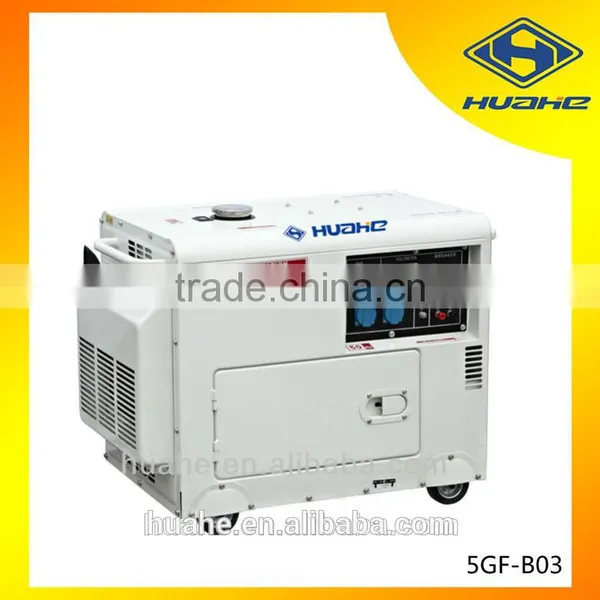

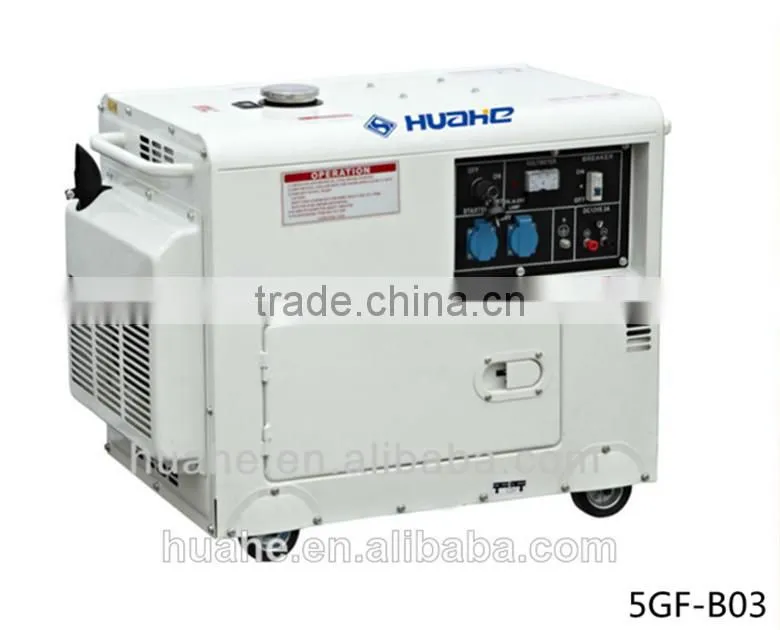

Huahe 5kva186f Silent Diesel Generator Set Sell Well in European,diesel Generators Prices

Name: Huahe 5kva186f Silent Diesel Generator Set Sell Well in European,diesel Generators Prices
Brand: HUAHE
SKU: 143332412
Availability: InStock

Huahe 5kva186f Silent Diesel Generator Set Sell Well in European,diesel Generators Prices thumbnail-1

Huahe 5kva186f Silent Diesel Generator Set Sell Well in European,diesel Generators Prices photo-1

Negotiable MOQ: 72 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

HUAHE

Model Number:

5GF-B03

Contact Supplier Request Quote Chat Now

Huahe Heavy Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HUAHE

Model Number 5GF-B03

Output Type AC Single Phase

Speed 1500RPM

Frequency 50/60HZ

Rated Power 5000W

Rated Voltage 230V

Rated Current 18.3A

huahe 5kva 186f silent diesel generator set sell well in european,diesel generators prices

1. Low fuel consumption 2. ultra-low-noise 3.can be widely used in highways, railways, airports, factories, hospitals

Model		Silent type
		5GF
Generator	Type	Revolving field type 2 pole generator
	Frequency (Hz)	50	60
	Cont. Output (KW)	4.2	5
	Voltage (A.C)(V)	230	240 (120)
	Current (A.C)(A)	18.3	20.8 (41.7)
	Engine speed (r/min)	3000	3600
	Phase	Single phase
	Power factor (COSΦ)	1
	Excitation system	Controlled constant self-excitation
	D.C output V/A	12V/8.3A
	Operation capacity	12 hour constant operation
	Coupling pattern	Straight shaft coupling
Model		186FG(E)
Engine	Type	Direct injection vertical, 4-cycle, air-cooled diesel engine
	Displacement cc (cu.in)	406 (24.78)
	Max. output (KW/rpm)	6.6	7.35
	Cont. output (KW/rpm)	5.9	6.6
	Starting system	Electric start
	Governor system	Centrifugal weight system
	Fuel	Diesel light fuel (BS-AL or equivalent)
	Fuel tank capacity (L)	16
	Lube oil capacity (L)	1.65
	Bore×Stroke	86×75
	Protection system	Low oil, warning system/Stop device (not for L-series)
Unit	Noise level at 7m dB (A)	770
	Dimension (L×W×H) (mm)	950×580×740
	Dry weight (kg)	157

Huahe company, introduces the Silent Diesel Generator. This 5000 watts (5.0 kW) portable, silent diesel generator is suitable both as a stand-alone backup generator and for use at project sites. The diesel generator is one of the few systems in market that fully meets quality and safety standards. The bearings in any generator are among the most critical components. Huahe generators use the most premium bearings manufactured by some of the world's leading producers. The Huahe incorporates the latest innovations, such as the latest generation of AVR (Automatic Voltage Regulator), laser balanced crankshaft, heavy duty flywheel, premium starter, premium fuel injector, full copper alternator and more. Huahe also provides one of the best warranties. The diesel generators are super quiet, powerful, versatile and safe.

Huahe 5GF uses a true 186FG (E), 11 HP, 418 cc engine. Therefore, Huahe provides a true 5000W max engine power (tested at 5.2kw surge). With its standard preheater, anticorrosion exterior finish, the generator is designed and tested to operate in the harshest climates with ease. -Max Surge Output: 5200 Watts -Rated Output: 5000 Watts -Voltage: 120V & 220V -Engine: 4 Stroke Vertical Air Cooled -Horsepower: 11 HP -Fuel Capacity: 4.3 Gallons (16 Liters) -Ignition: Electric (Key) -Dimension: 950mm x 580mm x 740mm -Includes Pre-Heater for Cold Climates -Includes 2 keys -Made In China
