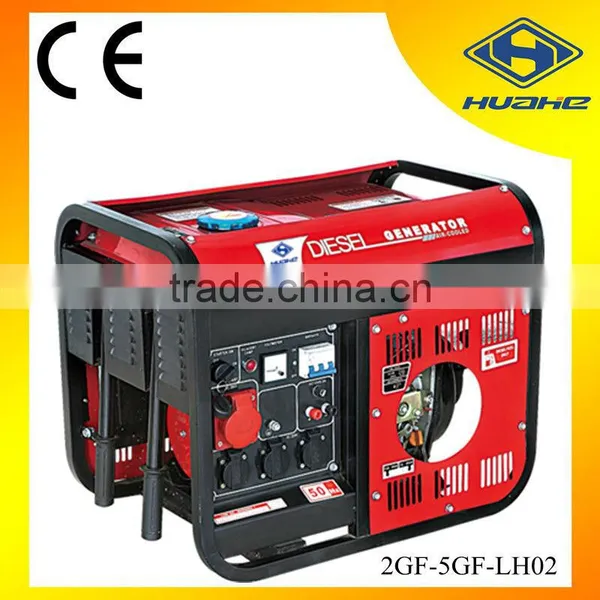

5kva Luxury Type Diesel Generator Electric Start 3 Phase,diesel Generating

Name: 5kva Luxury Type Diesel Generator Electric Start 3 Phase,diesel Generating
Brand: HUAHE
SKU: 143332410
Availability: InStock

Negotiable MOQ: 160 Units (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUAHE

Model Number:

5GF

Huahe Heavy Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUAHE

Model Number 5GF

Output Type AC Single Phase

Speed 3600rpm

Frequency 50Hz

Rated Power 5KW

Rated Voltage 220V

Rated Current 7.4A

Model		Economical type
		5GF
Generator	Type	Revolving field type 2 pole generator
	Frequency (Hz)	50	60
	Cont. Output (KW)	4.2	5
	Voltage (A.C)(V)	230	240 (120)
	Current (A.C)(A)	18.3	20.8 (41.7)
	Engine speed (r/min)	3000	3600
	Phase	Single phase
	Power factor (COSΦ)	1
	Excitation system	Controlled constant self-excitation
	D.C output V/A	12V/8.3A
	Operation capacity	12 hour constant operation
	Coupling pattern	Straight shaft coupling
Model		186FG
Engine	Type	Direct injection vertical, 4-cycle, air-cooled diesel engine
	Displacement cc (cu.in)	406(24.78)
	Max. output (KW/rpm)	6.6	7.35
	Cont. output (KW/rpm)	5.9	6.6
	Starting system	Recoil start/ Electric start
	Governor system	Centrifugal weight system
	Fuel	Diesel light fuel (BS-AL or equivalent)
	Fuel tank capacity (L)	5.5L
	Lube oil capacity (L)	1.65
	Bore×Stroke	86×70
	Protection system	Low oil, warning system/Stop device (not for L-series)
Unit	Noise level at 7m dB (A)	85
	Dimension (L×W×H) (mm)	745×480×615
	Dry weight (kg)	95
