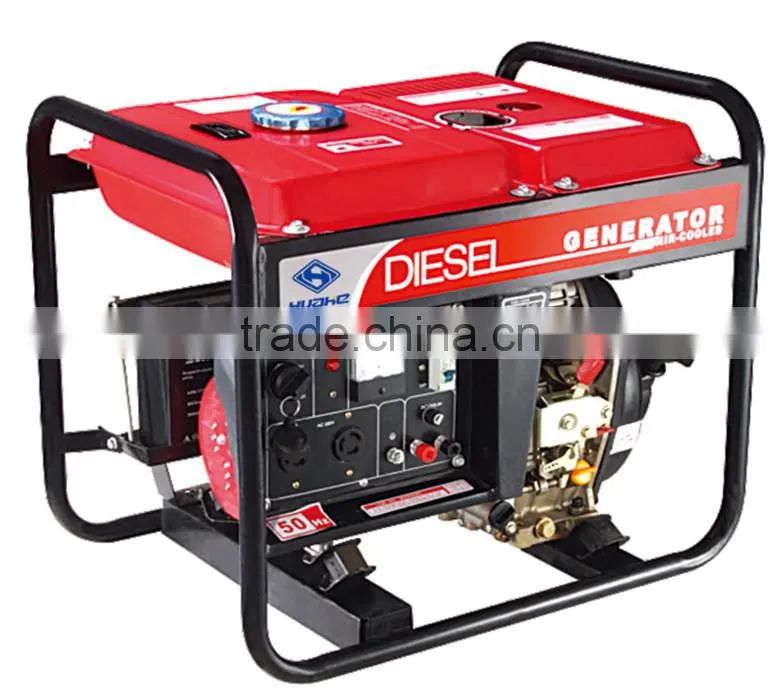

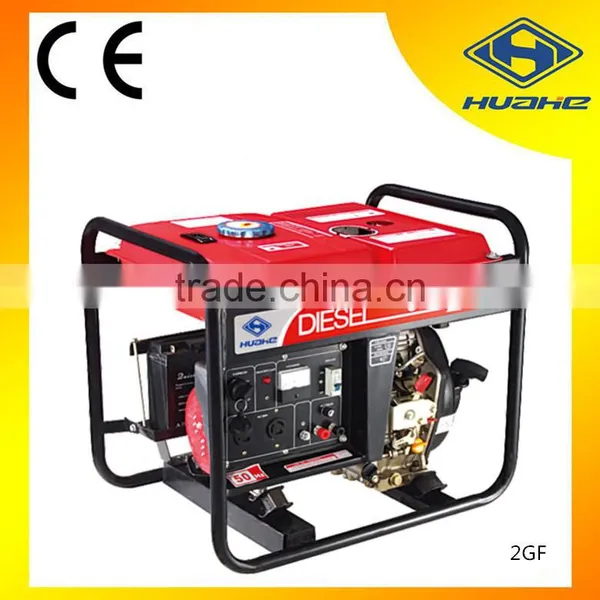

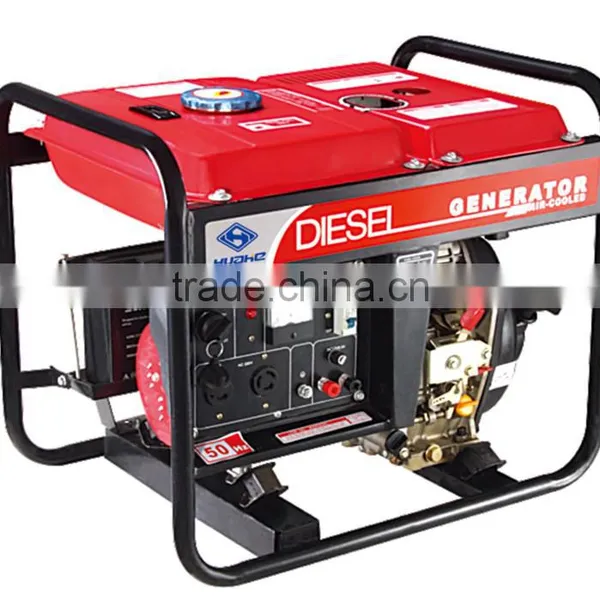

New Style! 2 kva 220v portable diesel generating,huahe diesel generator set
Features
01. 60% spare parts are produced by ourselves, such as crankcase, behind frame, fan case, back cover
02. Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.
03. Oil alert:Oil level under the level line,the engine stops working automatically.
04. Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.
05. Fuel meter:Show the varietal of fuel accurately.
06. The workshop of the factory, hospital, school, and much more
07. CE,ISO9001:2000 certification approved
08. One year or 500 hours warranty
09. Patent design, unique appearance and function
Specifications for this diesel generator:
Model | Economical type | ||
2GF | |||
Generator
| Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 1.7 | 2 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 7.4 | 8.3 (16.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 170FG | ||
Engine
| Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 211 (12.88) | ||
Max. output (KW/rpm) | 2.8 | 3.1 | |
Cont. output (KW/rpm) | 2.5 | 2.8 | |
Starting system | Recoil start/ Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 12.5 | ||
Lube oil capacity (L) | 0.8 | ||
Bore×Stroke | 70×55 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit
| Noise level at 7m dB (A) | 79 | |
Dimension (L×W×H) (mm) | 680×470×560 | ||
Dry weight (kg) | 73 | ||
Tell us your detailed requirement, to recommend you the right generator model
International certificates approved
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Each diesel generator set is wrapped in poly bag, then into carton. With Owners Manual in it
Standard colorful carton is available, ready for retail
Packaging & Shipping
Our Services
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Strict quality control in the whole production, including raw metarial, production site, 100% test before packing.
Three reasons for choosing Huahe
-----------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1 kva -720kva gasoline generator
Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
