Specifications
1.fuel oil purifier/oil filtration/purification plant2.remove water,gas,particles
3.explosion prevention

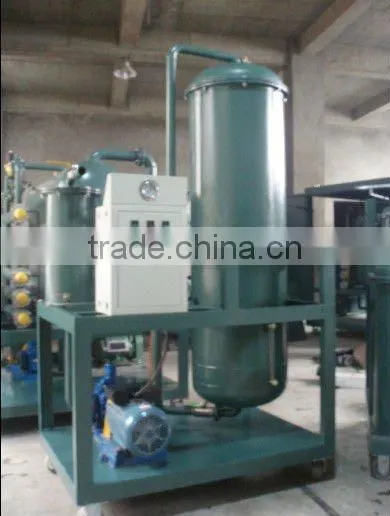

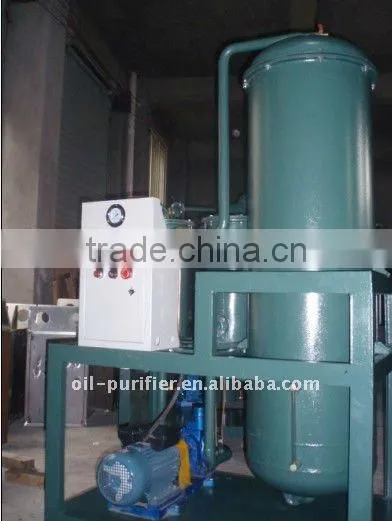

TJ series fuel oil purifier/oil filtration/purification plant
Application:
Series TJ Coalescence-separation oil purifier adopts advanced polymer fiber as the filter medium combined with the special oil-water separating device to make TJ is good at breaking emulsion and filtering. It can effectively separate water from oil. Series TJ can work online with turbine system for breaking emulsion and filtering, also it can separate particles and mass water from light oil. Series TJ works without heating and vacuum source, less power consumption, low operation cost. Series TJ use of trolley structure, light weight, easy operation.
Technical Parameters:
Index name |
unit |
TJ-10 |
TJ-20 |
TJ-30 |
TJ-50 |
TJ-80 |
TJ-100 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
4800 |
6000 |
|
Working pressure |
MPa |
≤ 0.3 |
||||||
Demulsifying value |
min |
≤15/min(GB/F7035) |
||||||
Water content |
ppm |
≤100 |
||||||
Cleanness |
|
≤ NAS 6 GRADE |
||||||
Power supplier |
|
380V 50HZ 3Ph(As per user’s option) |
||||||
Working noise |
dB(A) |
≤65~80 |
||||||
Total power |
Kw |
0.75 |
0.75 |
0.75 |
2.2 |
2.2 |
3 |
|
Weight |
kg |
80 |
90 |
105 |
135 |
150 |
185 |
|
Dimension |
L |
mm |
700 |
700 |
700 |
850 |
800 |
1000 |
W |
mm |
570 |
570 |
600 |
650 |
650 |
700 |
|
H |
mm |
550 |
600 |
650 |
750 |
800 |
850 |
|
Our products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages insulating oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
AD-Air dryer for drying electric equipments
TY-Turbine oil purifier, oil treatment
TJ-Coalescence and separating oil filter, oil purifier machine
TYA-Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure oil filter, oil purifier machine
JL-Portable oil purifier, oil filtering, oil filter
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
Parts options:
Our company provide good quality machine with competitive price; machine warranty time is 18 months from the delivery date. We can make the specified machine as per user’s options:
1. Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2. Choosing different kinds vacuum pump, oil pump, and electric parts.
3. Anti-explosion (EX type) electric parts.
4. Equips moisture sensor and dielectric strength tester on the machine.
5. Filter elements for different requirements on filtering precision
6. Stainless steel material for oil purifier body.
7. Automatic PLC control system
