Product Details
| Place of Origin | Shandong, China | Brand Name | Hongyuan | |
| Model Number | HY-T150 |
Product Description

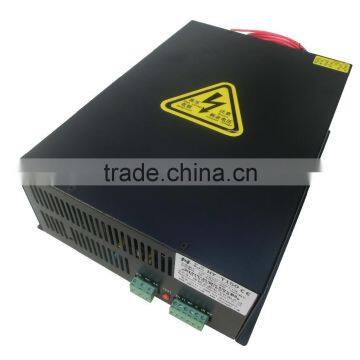

High power laser power supply HY-T150 for CO2 laser tubes above 120W from different factories
HY-T150 is a universal power supply, which is applicable to high power laser cutting machine, laser die cutter machine, dual head laser cutting machine.
With 3 high voltage transformers inside, HY-T150 has the highest power of the HY-T series, and can support 130W~180W CO2 laser tubes.
We recommend HY-T150 for laser tubes above 120 W, because this power supply has stable performance and low fault rate, being a strong guarantee for the normal operation of your laser machines.
Main Features
1. High output voltage and current: when inputting AC220V and outputting current up to 38MA, the voltage can be up to 25KV.
2. Response time: ≤1Msfrom the time that switch Signal is given to the output current up to 90% of the setting current.
3. Increase the power of laser: Used with 2000mm laser, the peak of laser power can be up to 150W and the average power is 130W.
4. Dramatically lengthen the life of laser.
5. Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
6. Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.
7. The power supply possesses open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
8. The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.
9. The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.
Tech Specifications
Our Services
The power supply comes with a full year warranty since the formal acceptance date.
