Product Details
| Place of Origin | Shandong, China | Brand Name | Hongyuan | |
| Model Number | HY-60 |
Product Description

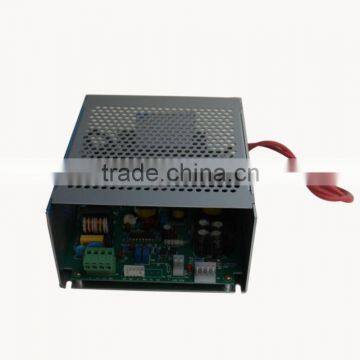

HY-T60 universal laser power supply, for 40W/50W/60W CO2 laser tube, acrylic material laser marking machine power supply
HY-T60 is universal power supply, which is suitable for laser tube 40w 850mm/50w 1000mm/60w 1200mm from different tube factories.
Model: HY-T60 for 40w, 50w,60w Co2 AC110V Laser Mahcine
Alias: Co2 Laser Generator, Co2 Laser Source, Co2 Laser Device,High Voltage Power Supply
1. Good compatibility: It can be applicable to 40W, 50W and 60W laser tubes manufactured by different factories.
2. High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 35KV.
3. Quick response speed and effect: High performance, large cutting power. It also can prolong laser tube’s working life
4. This Power Supply has the”TEST” button which can test output laser manually.
1. Easy Control: The start and stop of laser can be easily controlled by TTL level.Both 0-5V analog signal and 5V PWM signal can control the laser power.
2. The Laser Power Supply has output open circuit protection. Under the condition of good protective earthing, the power supply can work in open-circuit for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
3. This Power Supply has TTL signal indication, water through signal indication and laser output indication.
Input | Input voltage | AC 220V or 110V(please specify when placing order) |
AC frequency | 47-440HZ | |
Max input power | 450W | |
Output | Max output current | 3A |
Max output voltage | DC 35KV | |
Max output current | DC 24mA | |
Efficiency | >=90%(full load) | |
MTBF(Mean time between failure) | >=10000hours | |
Response speed | <=1ms(from the TTL signal is given to the output current up to 90% of setting current) | |
Withstand voltage | Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure. | |
Weight | 2.2kg | |
Environment | Operating temperature:-10~40degrees, relative humidity:<=90% | |
Cooling | Force air cooling(FAC) | |
Dimension | L*W*H=207*144*97mm | |
