Product Details
| Place of Origin | Guangdong, China | Brand Name | Yongli | |
| Model Number | DLT300 |
Product Description

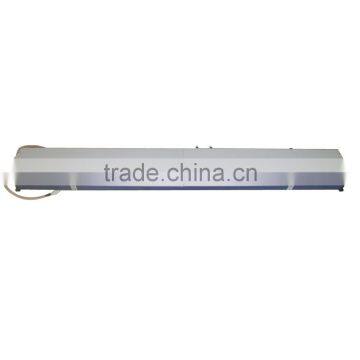

Yongli DLT-300 300W beam combined metal laser tube with 2 power supplies for hybrid laser cutting machine and mixed cutter
300W CO2 Laser tube
3mm stainless steel
4mm carbon steel
1mm galvanized sheet
30mm acrylic
18mm die board
Less cost than 500w fiber laser and less O2 using
Better beam quality, cutting effects, service
CO2 mixed cutting tube, metal laser, metal tube, for mixed cutter
DLT300 Beam Combined Laser Tube with numbers of patent, it includes integrated design combined device, and dedicatedpower supply. It features with high output power and stable spot mode. Single or double sets of synchronous control are allavailable, the power within 50-260W can be adjusted continuously.
Yongli DLT-300 300W beam combined metal laser tube with 2 power supplies for hybrid laser cutting machine and mixed cutter
Technical Parameters
| Model | Rated Power(W) | Max. Current(mA) | Application | Warranty(M) |
| DLT-300 | 300 | 40 | Metal and non-metal cutting | 12 |
| Applicable Materials | PVC, Acylic, Wood products, Textile, Plastic Resin, Medium Density Fiberboard, Die-cut, thin metal like | |||
| Applicable Industries | Die-cut processing, Printing and package, Advertising Decoration, Wood Furniture, Shoes, Sheet metal | |||
Application
Non metal: Cutting operation for plastic, PVC,acrylic, wood, textiles, rubber and other non-metallic products.
metal:Cutting operation for thin steel plate.
Parameters List
| Type | DLT-300 |
| Output Power(w) | 50-300 |
| Laser Tube Size(mm) | 1800 x 204 x 144 |
| Laser Tube N.W.(KG) | 26 |
| Power Supply Size | 372 x 220 x 142 |
| Power Supply N.W.(KG) | 8.5(weight of one piece) |
| Laser Beam Diameter(mm) | 5~6 |
| Output Stability(±%) | 5 |
| Max. Operating Current(KV) | 35 |
| Max. Starting Voltage(KV) | 40 |
| Coolant Flow Requirements(L/min) | 7L/min |
| Cooling Temperature(deionized water) | 15~25℃ |
| Equipment Use Environment | 15~30℃, 30~60% |
| Power Supply Requirements | 220V/50(60)HZ)/6A,OEM |
Our package makes you rest assured.
Application Areas of CO2 laser tube
