VC87 Types of Electricity Meters With True RMS

VC87 Types of Electricity Meters With True RMS photo-1

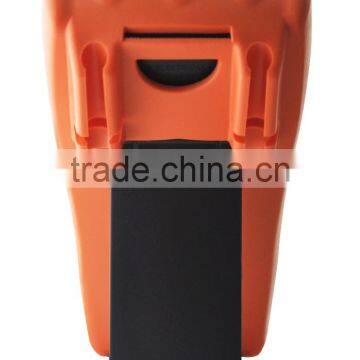

VC87 Types of Electricity Meters With True RMS photo-2
VC87 Types of Electricity Meters With True RMS photo-3

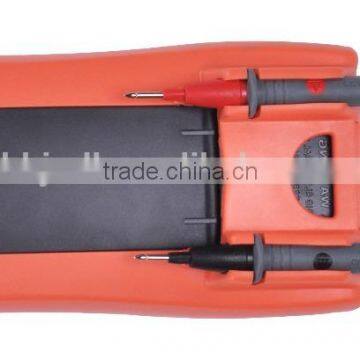

VC87 Types of Electricity Meters With True RMS photo-4
VC87 Types of Electricity Meters With True RMS photo-5

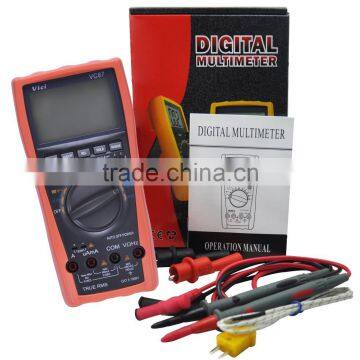

VC87 Types of Electricity Meters With True RMS photo-6
US$ 75 - 80 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
VICI
Model Number:
VC87
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name VICI
Model Number VC87
Measuring Current Range 600uA~20A
Measuring Voltage Range 1000V
Measuring Resistance Range 30m-600
Measuring Capacitance Range 40nF-2000uF
Measuring Inductance Range 1000V/1000V
Operating Temperature -40 C~1000
Dimensions 185*93*35mm
Product Description

VC87 True RMS multimeter features:



1.True RMS ACV and ACA for accurate measurements on nonlinear signals;

2.Accurate measurement of voltage and frequency on motor drive;

3.12 kinds of measuring function, with VSD, diode, hFE, duty cycle, resistance, continuity, etc.

4.Analog bar display, manual or auto range;

5.Strong antimagnetic and anti-jamming performance. Full function protection, with anti high voltage circuit design;

6.Large LCD display, white backlight, unit symbol display, very easy to read;

7.Relative value, Max/Min value measuring, data hold.

Detailed Image

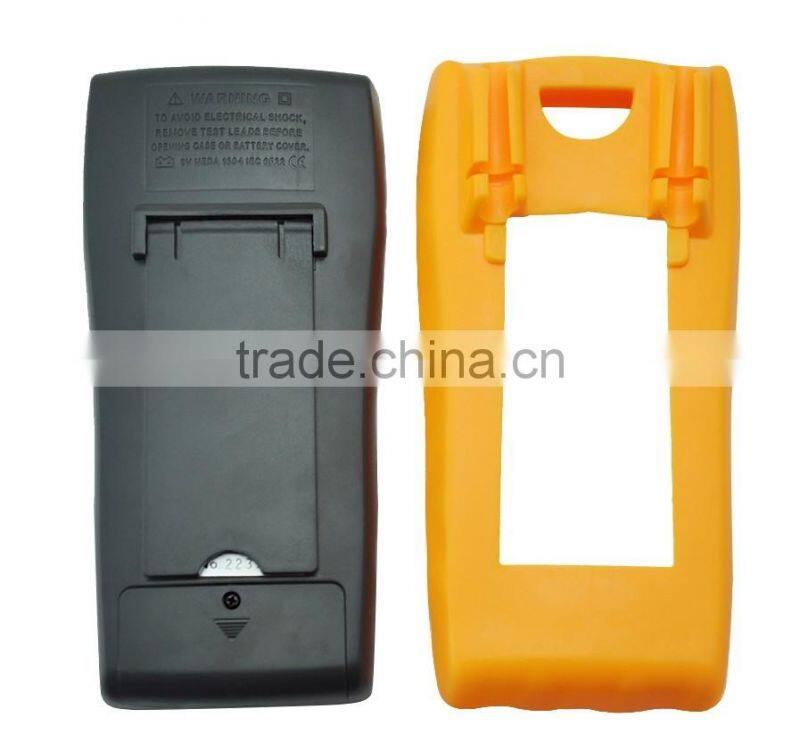

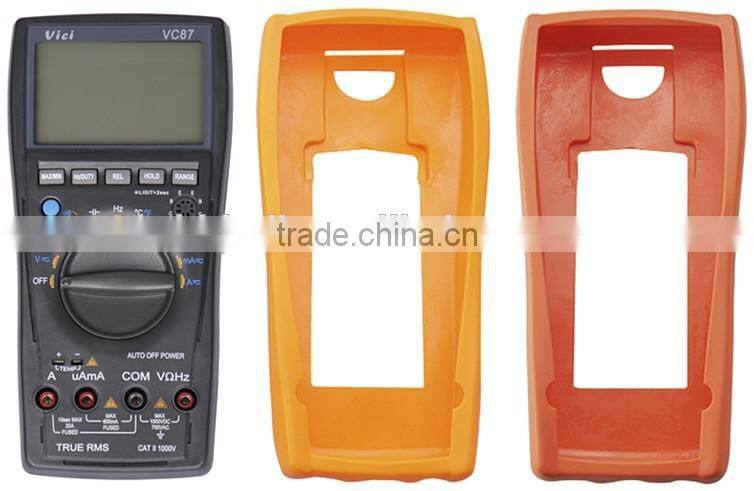

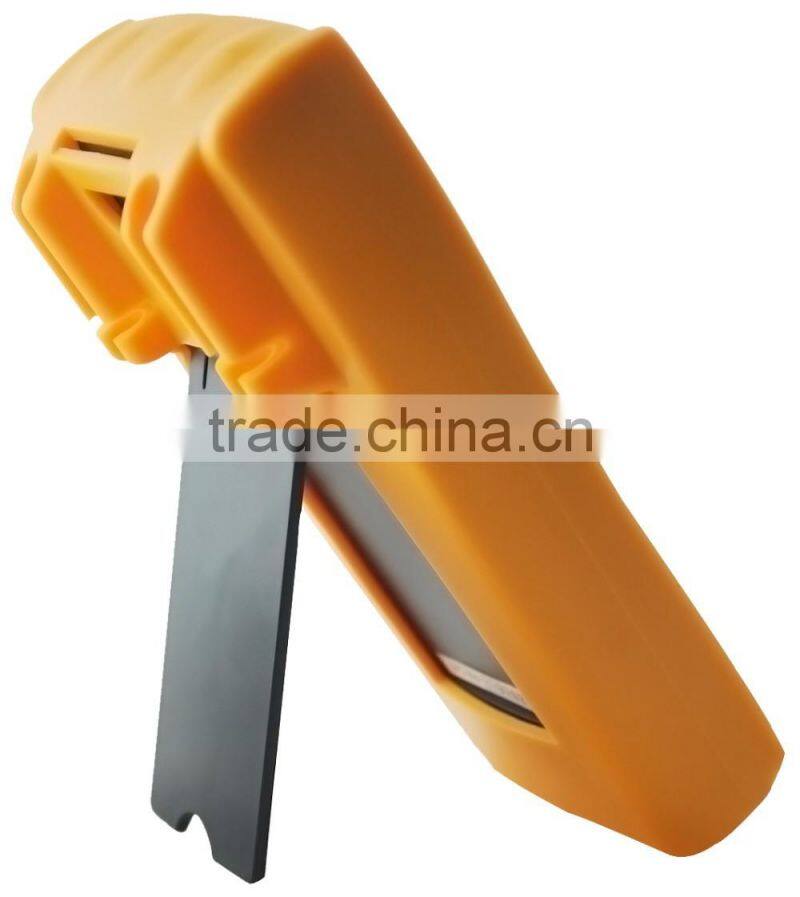

Color Body: dark grey, holster: yellow or orange

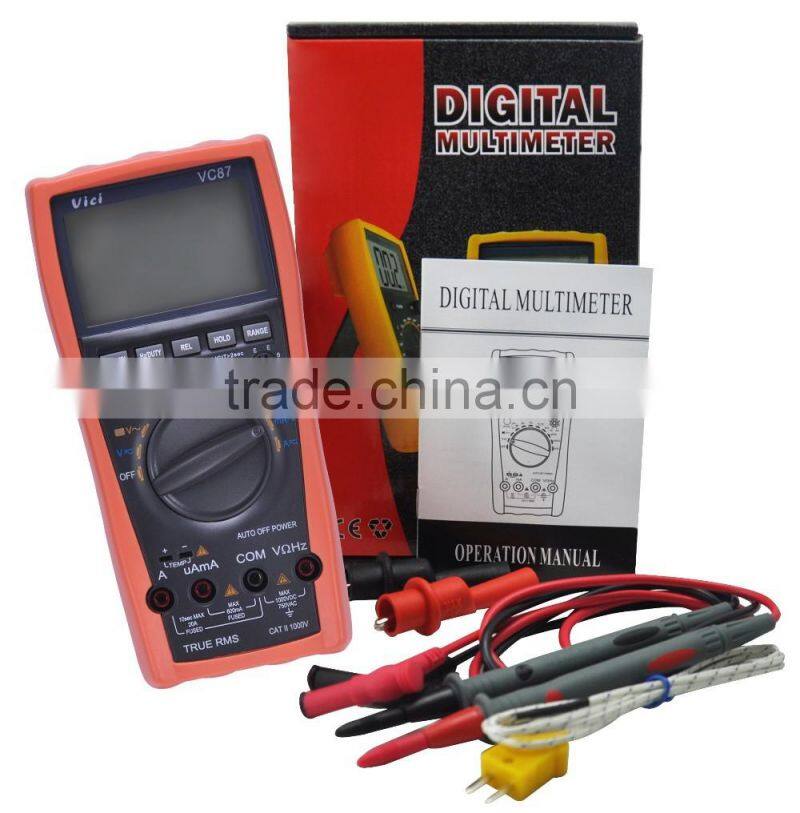

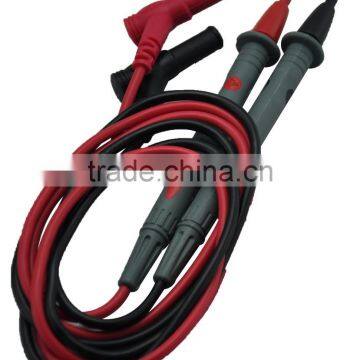

Standard accessory: Test leads, battery, manual, TP01 temperature probe,Crocodile clip

Technical Data
Basic function
Range
Accuracy
DCV(TRMS)
600mV/6V/60V/600V/1000V
 ±(0.5%+4)
ACV(TRMS)
6V/60V/600V/750V
±(1.0%+10)
VSD-V (TRMS)
 6V/60V/600V/750V
±(2.0%+10)
Resistance
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/30 MΩ
±(0.8%+3)
Capacitance
40nF/ 400nF/4uF/40uF/400uF/2000uF
±(2.5%+5)
Frequency
 10Hz~30MHz
±(0.5%+4)
Centigrade temperature
-40℃~1000℃
±(0.8%+4)
0℉~1832℉
±(0.8%+5)
Packing

VC87 True RMS multimeter packing:

Weight:  290g(including battery)
Meter size: 185×93×35mm
Packing: Gift box
Standard packing per carton: 30pcs
Carton size: 43.5×29.5×40.5cm
Standard G.W per carton: 16.5kg
