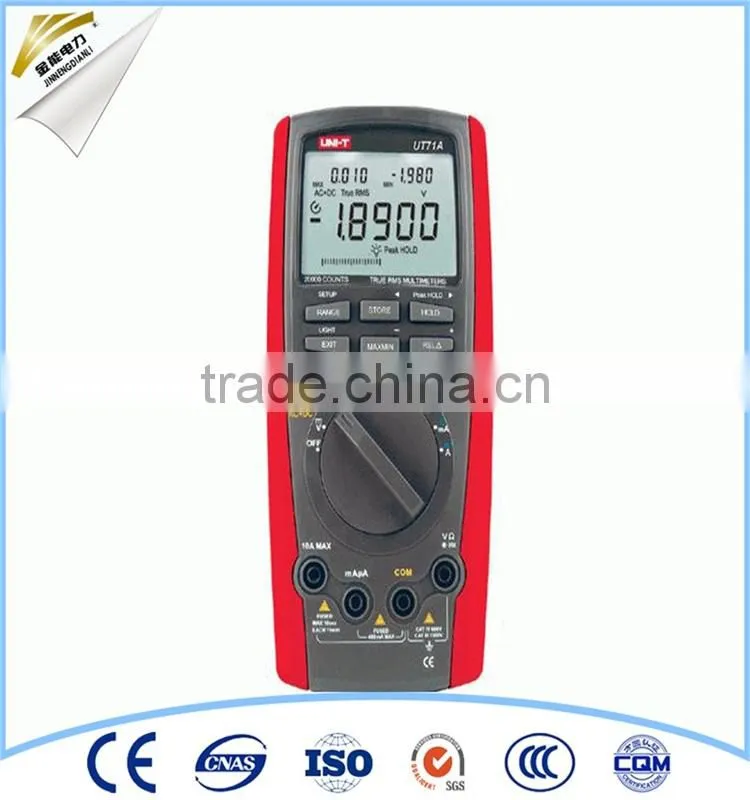

Best Digital Multimeter UNI-T UT71A

Name: Best Digital Multimeter UNI-T UT71A
Brand: UNI-T
SKU: 143069162
Availability: InStock

US$ 101 - 110 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

UNI-T

Model Number:

UT71

Hebei Jin Neng Power Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name UNI-T

Model Number UT71

Measuring Current Range 10A

Measuring Voltage Range 1000V

Measuring Capacitance Range 40mF

Operating Temperature 0~40

Dimensions 200 x 93 x 40mm

Product Description

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
DC Voltage	400mV/4V/40V/400V/1000V	(0.025%+5)
AC Voltage	4V/40V/400V/1000V	(0.4%+30)
AC Bandwidth	100KHz
DC Current	400µA/4000µA/40A/400mA/10A	(0.08%+8)
AC Current	400µA/4000µA/40A/400mA/10A	(0.5%+15)
Resistance	400W/4kW/40kW/400kW/4MW/40MW	(0.3%+8)
Capacitance	40nF/400nF/4µF/40µF/400µF/4mF/40mF	(1%+20)
Temperature (oC)	-40oC ~ 1000oC	(1%+30)
Temperature (oF)	-40oF ~ 1832oF	(1.5%+50)
Frequency	40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz	(0.01%+8)
Duty Cycle	10%~90%	(1%+30)
4~20mA Loop	0~100%	(1%+50)
Power Measurement		(2%+5)
Special Functions
Fused 10A Range
Auto Ranging
Current Measurement Alarm
Function Set Up
Auto Ranging
Votage & Current : AC + DC Measurement
Data Logging		100
Data Recall
Diode
Continuity Buzzer
True RMS
Peak Hold
Max/Min Mode
Relative Mode
Data Hold
USB
Double Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	DC 200mV : Around 2.5GW All Other Ranges : 10MW
Max. Display	40000
Analogue Bar Graph

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	73 x 50 mm
Product Colour	Red and Grey
Product Net Weight	384g
Product Size	200 x 93 x 40mm
Standard Accessories	Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable, Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip, Power Adaptor
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	20 pcs
Standard Carton Measurement	542 x 376 x 388mm (0.079 CBM Per Standard Carton)
Standard Carton Gross Weight	18kg
