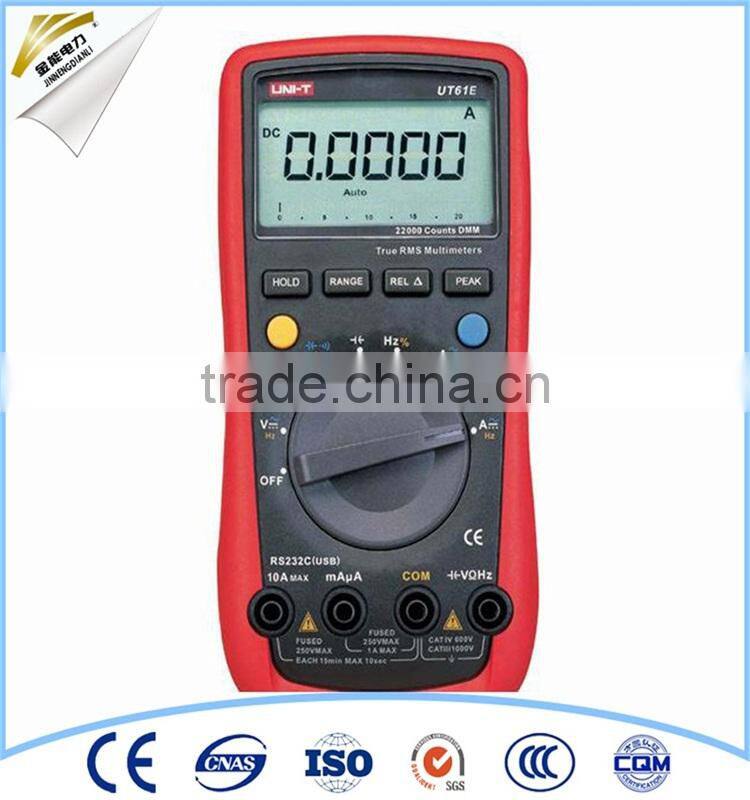

Portable Digital clamp Multimeter UNI-T Hot Sale
- 2000 Set / Sets per Month
- xingang
- T/T L/C D/P D/A Credit Card PayPal
- Acrel AMC16Z-FAK48 Electric Module Multi Channel Current Detection Module For Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti channel Monitoring Module Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- 48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- Din Rail Ac Power Meter AMC16Z-FAK48 Multi-circuit Energy Meter One RS485 Communication 48 Branch Full Electric Parameter
Product Details
Place of Origin: | Hebei, China | Brand Name: | UNI-T | Model Number: | UT61E |
Measuring Voltage Range: | 220mV/2.2V22V220V/1000V |
Product Description
Basic Functions | Range | Best Accuracy |
DC Voltage | 220mV/2.2V/22V/220V/1000V | +/-(0.1%+2) |
AC Voltage | 220mV/2.2V/22V/220V/750V | +/-(0.8%+10) |
DC Current | 22mA/220mA/2.2A/10A | +/-(0.5%+10) |
AC Current | 22mA/220mA/2.2A/10A | +/-(0.8%+10) |
Resistance | 220/2.2k/22k/220k/2.2M/22M | +/-(0.5%+10) |
Capacitance | 22nF/220nF/2.2mF/22mF/220mF/2.2mF/22mF/220mF | +/-(3%+5) |
Frequency | 10Hz-220MHz | +/-(0.01%+5) |
Frequency Response | 45Hz~10kHz |
|
Duty Cycle | 0.1%~99.9% |
|
Special Functions | ||
Auto/Manual Ranging | Yes | |
Diode | Yes | |
True RMS | Yes | |
Continuity Buzzer | Yes | |
Data Hold | Yes | |
Peak Value | Yes | |
REL | Yes | |
Analogue Bar Graph | 46 | |
RS232 | Yes | |
Input Protection | Yes | |
Input Impedance for | About 10M | |
Low Battery Display | <= 7.5V | |
Max Display | 22000 |
GENERAL CHARACTERISTICS
Power | 9V Battery (6F22) |
LCD Size | 65 x 43mm |
Product Colour | Red and Grey |
Product Net Weight | 370g |
Product Size | 180 x 87 x 47mm |
Standard Accessories | Battery, Test Lead, Chinese Manual, Multi-Purpose Socket, RS232 Interface Cable, Software |
