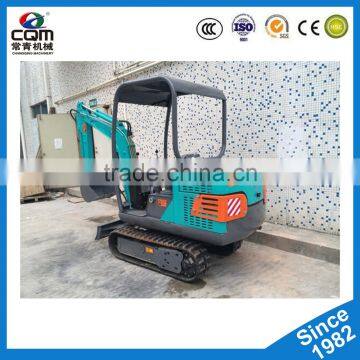

Hydraulic Hammer Mini Excavator YG15-8
The streamline modelling design, fashion and elegant appearance, reliable,highly cost effective.
A Overall Length (trans pos) | 3630mm |
B Overall Height (trans pos) | 2150 mm |
C Width of Undercarriage | 990mm |
D Width of Track | 230mm(9.06inch) |
F Length Of Track | 1405mm (0.8'in) |
H Dist. Between Undercarriage And Ground | 205mm |
J Width Of Platform | 1020mm |
L Dist. Between Platform And Ground | 460mm |
E Maximum Platform Tail Turning Radius | 1180mm |
I Dist. Between Boom And Ground | 1105mm |
G Sprocket To Idler Centres | 1045mm(3'5''in) |
Operation Hydraulic Pressure | 16Mpa(2320PSI) |
Maximum Digging Force | ≥10.5 KN (2474lbs) |
Maximum Gradeadility | ≥58%(30°) |
Travelling Speed | ≥2 km/h (1.2mph) |
Maximum traction | 11.5 KN |
Swing Speed of Platform | 10rpm |
Variable displacement pump capacity |
|
Fixed displacement pump capacity | 2X17.6+606L/min |
Swing Angularity of the Digging Arm(left/right) | 80°/80° |
A Maximum Digging Height | 2950mm |
B Maximum Dumping Height | 2010mm |
C Maximum Digging Depth | 1880mm |
D Maximum Digging Radius | 3500mm |
D1 Maximum Digging Dist.of Ground | 3421mm |
E Maximum Height Digging Radius | 2410mm |
F Maximum Platform Tail Turning Radius | 1530mm |
G Maximum Depth for Bulldozing | 170mm |
H Maximum Height for Bulldozing | 205mm |
Delivery time for order within available stock is in 7days
Delivery time for order without available stock is in 15days
After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Qingdao Changqing Mining machine co., LTD. established in June 18, 1982, registered capital
of 5.6 million . We have 4 branch companies in Jining ,Linyi and Qingdao
Main products: Garden Machinery including tree spade , lawn mower, Skid Loader, Mini
Excavator,Construction machinery and accessories, Road Marking and Mining equipment,
Mining tools and so on. In July 2006 we passed the ISO9001:2000 certification.
