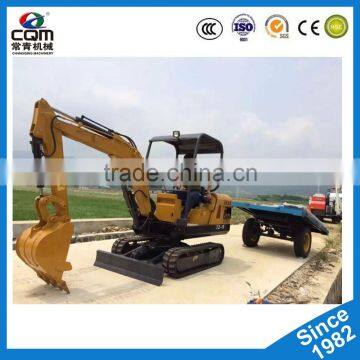

0.8m3 mini excavator with US EATON motor/Yugong excavator
- 100 Piece / Pieces per Month
- Guangzhou
- T/T L/C Credit Card
You May Like
-
Hot sale 2.2T hydraulic small excavator/crawler type excavator
-
Hot sale 2.2T hydraulic small excavator made in china
-
Hydraulic hammer mini excavator with US EATON motor
-
2.2T hydraulic small crawler-type excavator
-
Good quality small excavator YG22-9X with Siemens engine
-
YG22-9X Mini Excavator With US EATON Motor
Product Details
Place of Origin | Guangdong, China | Model Number | YG22-9X, YG22-9X | |
Condition | New | Bucket capacity | 0.1m3, 0.1m3 | |
Maximum Digging Height | 3720mm, 3720mm | Maximum Digging Depth | 2630mm, 2630mm | |
Machine Weight | 2200kg, 2200kg | Max Digging Radius | 4900mm | |
Rated Speed | 2.7Km/h | Certification | ISO9001 | |
After-sales Service Provided | No overseas service provided |
Product Description
Chinese Hudralic Mini Crawler Excavator
a. The streamline modelling design, fashion and elegant appearance, reliable,highly cost effective.
b. small volume, working flexible, good at narrow spaces work.
c. Domestic mature and advanced hydraulic system,pilot control, 180 °, 360 ° rotation change-over valve can improve efficiency greatly.
A Overall Length (trans pos) | 4120mm |
B Overall Height (trans pos) | 2250 mm |
C Width of Undercarriage | 1320mm |
D Width of Track | 250mm |
F Length Of Track | 1621mm |
H Dist. Between Undercarriage And Ground | 235mm |
J Width Of Platform | 1130mm |
L Dist. Between Platform And Ground | 490mm |
E Maximum Platform Tail Turning Radius | 1290mm |
I Dist. Between Boom And Ground | 1430mm |
G Sprocket To Idler Centres | 1261mm |
Operation Hydraulic Pressure | 16Mpa(2320PSI) |
Maximum Digging Force | ≥12KN |
Maximum Gradeadility | ≥58%(30°) |
Travelling Speed | ≥2.7 km/h |
Maximum traction | 15 KN |
Swing Speed of Platform | 13rpm |
Variable displacement pump capacity |
|
Fixed displacement pump capacity | 2X24.2+11L/min |
A Maximum Digging Height | 3720mm |
B Maximum Dumping Height | 2260mm |
C Maximum Digging Depth | 2630mm |
D Maximum Digging Radius | 4250mm |
D1 Maximum Digging Dist.of Ground | 4160mm |
E Maximum Height Digging Radius | 2750mm |
F Maximum Platform Tail Turning Radius | 1850mm |
G Maximum Depth for Bulldozing | 250mm |
H Maximum Height for Bulldozing | 230mm |
Delivery time for order within available stock is in 7days
Delivery time for order without available stock is in 15days
After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Qingdao Changqing Mining machine co., LTD. established in June 18, 1982, registered capital of 5.6 million . We have 4 branch companies in Jining ,Linyi and Qingdao
Main products: Garden Machinery including tree spade , lawn mower, Skid Loader, Mini Excavator,Construction machinery and accessories, Road Marking and Mining equipment,Mining tools and so on. In July 2006 we passed the ISO9001:2000 certification.Our company products have been exported to the United States, Britain, France, Japan, Italy and more than 20 countries.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application fo your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes. Each step of products will be carried out inspection by QC department until shipping.
What advantages do you have?
(a).Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines.
It ensures we have the ability to carry out the production schedual for punctual delivery.
(b).20-year production experience. We have over 20 years exprerience in this industry.
That means we can preview the problems for the orders and production.
Therefore, it will make sure to deduce the risk of bad situation to happen.
(c). Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the
process, you just need to discuss with him for all the problems and the way sames much times.
