Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | SMAC |
Model Number: | USM32C | Type: | Universal | CNC or Not: | Normal |
Voltage: | 380V | Power(W): | 5.5/3kw | Dimension(L*W*H): | 2294*1770*1858mm |
Weight: | 3000kg | Certification: | CE;ISO | Warranty: | 1 year |
Product Description

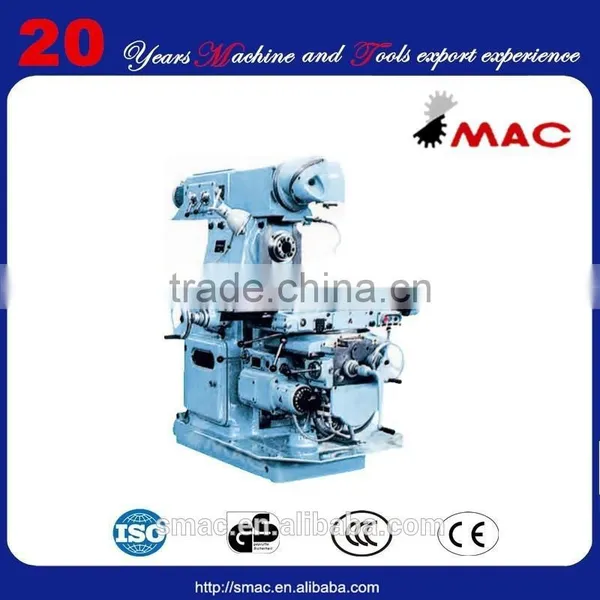

china new universal swivel head milling machine USM32C
Standard Accessories
Dividing head
Rotary table
Boring head
Transmission box
Milling chuck
Machine vise etc
china new universal swivel head milling machine USM32C
MODEL | USM32B | USM32C | USM32 x 16 | USM32C x 16 | |
Table area (width x length) | mm | 320 x 1320 | 320 x 1320 | 320 x 1600 | 320 x 1320 |
T-slots (No.-width x pitch) | mm | 3-18x70 | 3-18x70 | 3-18x70 | 3-18x70 |
Table Travel (manual) X/Y/Z | mm | 700/255/320 | 700/255/320 | 700/255/320 | 700/255/320 |
Table travel (power) X/Y/Z | mm | 680/240/300 | 680/240/300 | 700/240/300 | 700/240/300 |
Table Swivel degree | +45° | +45° | +45° | +45° | |
Vertical Milling head swivel degree | 360° | 360° | 360° | 360° | |
Max weigh of workpiece | kg | 500 | 500 | 500 | 500 |
Spindle motor power (horizontal/vertical head) | kw | 5.5/3 | 5.5/3 | 5.5/3 | 5.5/3 |
Spindle taper (horizontal/vertical head) | 7:24 50#/40# | 7:24 50#/40# | 7:24 50#/40# | 7:24 50#/40# | |
Spindle speed range (horizontal/vertical head) | r/min | 18 30-1500/90-1400 | 18 30-1500/125-2000 | 18 30-1500/90-1400 | 18 30-1500/125-2000 |
Feed speed (X/Y/Z) | mm/min | 18 23.5-1180/ 23.5-1180/8-394 | 18 23.5-1180/ 23.5-1180/8-394 | 18 23.5-1180/ 23.5-1180/8-394 | 18 23.5-1180/ 23.5-1180/8-394 |
Rapid speed (X/Y/Z) | mm/min | 2300/2300/770 | 2300/2300/770 | 2300/2300/770 | 2300/2300/770 |
Distance from center line of horizontal spindle to table surface | mm | 30-350 | 30-350 | 30-350 | 30-350 |
Distance from vertical spindle nose to table surface | mm | 40-425 | 250-570 | 40-425 | 250-570 |
Feed motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 |
DRO Resoluction (DRO milling machine only) | mm | 0.005 | 0.005 | ||
Machine dimensions (L x W x H) | mm | 2294x1770x1858 | 2294x1770x1858 | 2294x2045x1858 | 2294x2045x1858 |
Weight of machine (about) | kg | 3000 | 3000 | 3000 | 3000 |
china new universal swivel head milling machine USM32C
