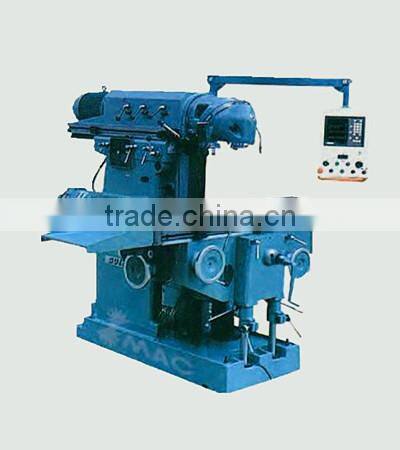

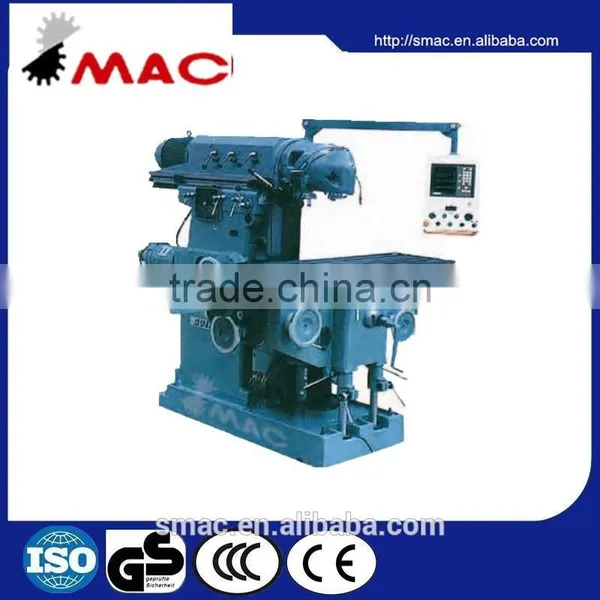

chinese type milling machine RMD46/1
Application:
Ram Type Milling Machine With Digital Display and Ram Type Milling Machine are newly developed product based on traditional knee type milling machine and have more advanced features than the general one. These machines can mill any angle surface through front half-sphere by swiveling milling head. Enlarged machining capacity, widened spindle speed range, infinitely speed changing, two sets operating handles for easy operation, interlock between locking and power/ manual feed system, automatic lubrication system, sufficient rigidity and so on.
These machines can mill plane, groove, slant groove, even can mill plane and groove in cavity of some workpieces. They are suitable for metal-working operation of all kinds of factories, especially for die and mould.
Optional Accessories
Dividing head
Rotary table
Plain vice
Tool box
Leveling block
Centre vice
Spring collect
Iron wedge
Standard Accessories
Milling arbor
Draw bar
Oil gun
Tools
Manuals
chinese type milling machine RMD46/1
Name |
Unit |
RMD46
RM46 |
RMD46/1
DM46 |
||
Working table (W x L) |
mm |
460 x 1235
|
460 x 1635 |
||
T-slot |
Number |
5 |
|||
Width |
mm |
18 |
|||
Distance |
mm |
80 |
|||
Travel of table |
Longitudinal |
mm |
900 |
1000 |
|
Vertical |
mm |
470 |
|||
Travel of ram |
Cross |
mm |
650 |
||
Min distance between spindle nose and table surface |
mm |
40 |
|||
Swivel angle of milling head |
Any 360 in front half-sphere |
||||
Spindle taper |
ISO40 |
ISO50 | |||
Spindle speeds |
Range |
rpm |
30-2050 |
||
Number |
27 |
||||
Feed range of table and ram |
Longitudinal | mm/min |
10-1000 |
||
| Cross | mm/min |
10-1000 |
|||
| Vertical | mm/min |
6-640 |
|||
|
Number of feeds
|
Infinitely variable |
||||
Feed range of table and ram |
Longitudinal | mm/min |
2200 2540 |
||
| Cross | mm/min |
2200 2540 |
|||
| Vertical | mm/min |
1460 1700 |
|||
| Spindle motor | Power | kw |
5.5 |
7.5 |
|
| Speed | rpm |
1440 |
|||
Feed motor |
Torque | Nm |
15 |
30 |
|
| Speed | rpm |
1500 |
|||
Fapid Feed motor |
Power | kw |
3 |
||
| Speed | rpm |
1500 |
|||
Resolution of digital display |
mm |
0.005 |
|||
Positioning accuracy |
mm |
0.005 |
|||
Reset accuracy |
mm |
0.01 |
|||
Max. bearing weighty of table |
kg |
1000 |
1500 |
||
Overall dimensions (L x W x H) |
mm |
2050 x 2200 x 1950 |
2050 x 2600 x 1950 |
||
Net weight |
cm |
3000 |
3200 | ||
chinese type milling machine RMD46/1
