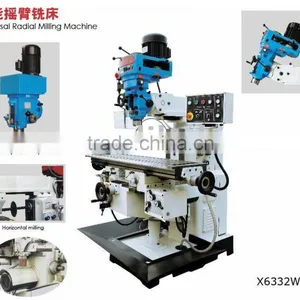

Universal Radial Milling Machine/milling Machine/miller
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SMAC
Model Number:
X6332W
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
the Hot Sale and High Precision Chinese Type Milling Machine RMD46/1 of CHINA of SMACNegotiableMOQ: 1 Set -
China Profect and New and Good Vertical Knee-type Milling Machine VML5036A of SMACNegotiableMOQ: 1 Set
-
the Hot Sale and Low Cost Vertical Knee-type Milling Machine for Sale XW5032C of SMAC of ChinaNegotiableMOQ: 1 Set
-
the Profect and High Precision China Auto-feeding Milling Machine HUM25C of SMACNegotiableMOQ: 1 Set
-
the Hot Sale and High Precision China Cheap Milling Machine USM32C*16 of SMACNegotiableMOQ: 1 Set
Condition
New
Brand Name
SMAC
Model Number
X6332W
Type
Vertical
CNC or Not
Normal
Specifications
Universal Radial Milling Machine/milling machine/millerGear head or Turret head, swivel at +/-45 degree, front to rear, left
Universal Radial Milling Machine/milling machine/miller
Model: X6332W
| Specs | ||
| Head movement (Left to right) | +/-45degree | |
| Head movement (front to rear) | +/-45degree | |
| Max.drilling dia(mm) | 50; 30 | |
| Spindle taper | M.T.4; R8; IS030 IS040 | |
| Max.vertical milling dia (rnm) | 25 | |
| Max.boring dia (mm) | 120 | |
| Max.tapping dia (mm) | M16 | |
| Distance. Main spindle to table surface (mm) | 90-370 | |
| Distance.horizontal spindle to table surface (mm) | 0~400 | |
| Spindle speeds range (r.p.m.l)(steps) | Vertical | 80-5440 (16) |
| Horizontal | 40-1300 (12) | |
| Spindle travel (mm) | 120 | |
| Feeding of quill | 3 steps; 0.04,0.08,0.15mm/r | |
| Table size (mm) | 1250x320 | |
| Table travel (mm) | 600x300 | |
| vertical travel (mm) | 280 | |
| Motor for rapid of table traverse X/Y | 750W | |
| Motor for VERTICAL of table traverse Z | 750W | |
| Motor (kw) | Vertical | 2.2 |
| Horizontal | 2.2 | |
| Overall dimensions (mm) | 1500x1700x2000 | |
| N.W/G.W. | 1500/1600 | |
