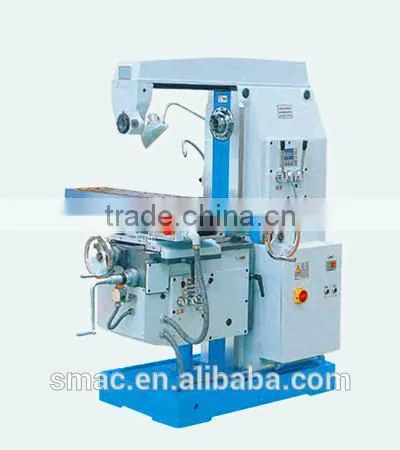

the profect and high precision china auto-feeding milling machine HUM25C of SMAC
- 45 Set / Sets per Month
- shanghai.china
- T/T L/C D/P D/A
You May Like
-
the hot sale and high precision china cheap milling machine USM32C*16 of SMAC
-
the top sale and high precision low price milling machine HML6036B of china of SMAC
-
knee-type universal milling machine/universal milling machine/milling machine
-
turret milling machine/milling machine/machine tools
-
turret milling machine/milling machine/milling
-
Drilling & Milling Machine/Milling machine/drilling and milling machine/drilling & milling machine
Product Details
Condition | New | Place of Origin | Jiangsu, China | |
Brand Name | SMAC | Model Number | HUM25C | |
Type | Universal | CNC or Not | Normal | |
Voltage | 380V | Power(W) | 4kw | |
Dimension(L*W*H) | 1750*1500*1706mm | Weight | 1700kg | |
Certification | CE;ISO | Warranty | 1 year |
Product Description
china auto-feeding milling machine HUM25C
china auto-feeding milling machine HUM25C
Specifications
Multi functional milling machine
Automatic rapid feed X Y Z
Easy control
High speed milling head
vertical and horizontal
Product Description
Standard Accessories
Milling arbors
Tools
Draw-bolts
Manuals
Optional Accessories
Universal milling head
Rotary table
Machine vice
Milling chuck collets
china auto-feeding milling machine HUM25C
china auto-feeding milling machine HUM25C
model | HUM25C | HUM30C |
Tablesize | 250x1250mm | 300x1250mm |
T slots-N | 3 | 3 |
T slots-W | 14mm | 14mm |
T slots-D | 63mm | 63mm |
Table load-bearing | 250kg | 250kg |
Max. rotary angle of table | 45° | 45° |
Longitudinal travel | 800mm | 800mm |
Cross travel | 235mm | 235mm |
Vertical travel | 235mm | 235mm |
Distance from spindle end to table | 50~480mm | 50~480mm |
Distance from vertical guide to spindle milling head | 290mm | 290mm |
Distance between spindle center to arm | 161mm | 161mm |
Arbor diameter | F22,F27mm | F22,F27mm |
Spindle hold taper | 7:24 N0.40 | 7:24 N0.40 |
Spindle speed steps | 12steps | 12steps |
Spindle speed ranges | 35~1600r/min | 35~1600r/min |
Feed speed steps | 12steps | 12steps |
Feed speed ranges:longitudinal | 15~800mm/min | 15~800mm/min |
Cross | 15~800mm/min | 15~800mm/min |
Vertucal | 6~270mm/min | 6~270mm/min |
Rapid feed ranges:longitudinal | 2100mm/min | 2100mm/min |
Cross | 2100mm/min | 2100mm/min |
Vertucal | 880mm/min | 880mm/min |
Main motor power | 4kw | 4kw |
Speed | 1420r/min | 1420r/min |
Feed motor power | 0.75kw | 0.75kw |
Feed motor speed | 1460r/min | 1460r/min |
Cooling pump power | 0.12kw | 0.12kw |
Cooling pump capacity | 25L/min | 25L/min |
Cooling pump speed | 2760r/min | 2760r/min |
Overall size | 1750x1500x1706mm | 1750x1500x1706mm |
Packing box size(domestic sales) | 1540x1650x1984mm | 1540x1650x1984mm |
(Export) | 1540x1650x1960mm | 1540x1650x1960mm |
Voltage/Frequency | 380V 50Hz | 380V 50Hz |
Net weight | 1650kg | 1700kg |
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
