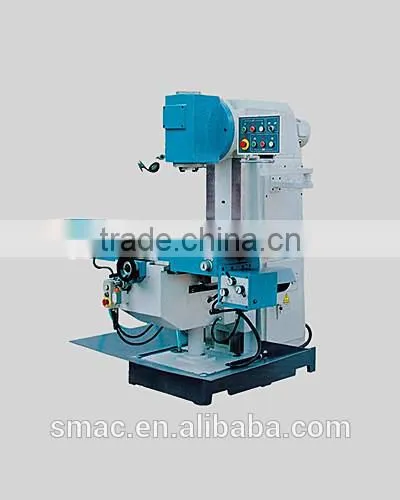

knee-type milling machine VML5036A
Features:
Rectangualar table guideways with high stability
Hardened and ground table surface, guideways
Automatic feeds on X,Y axes, motorized lifting and lowering of table on Z axis.
Headstock swivels ±45°
1.It is a vertical milling machine,high power
2.Processing range widely
3.Automatic feed on two axis ,motorized lift on Z axis.
4.Rectangular guideway,hardened treatment
5.The rigidity of yhe spindle,strong cutting force.
6.Equipped with manual lubricating device, the lubrication on the lead screw and guideway

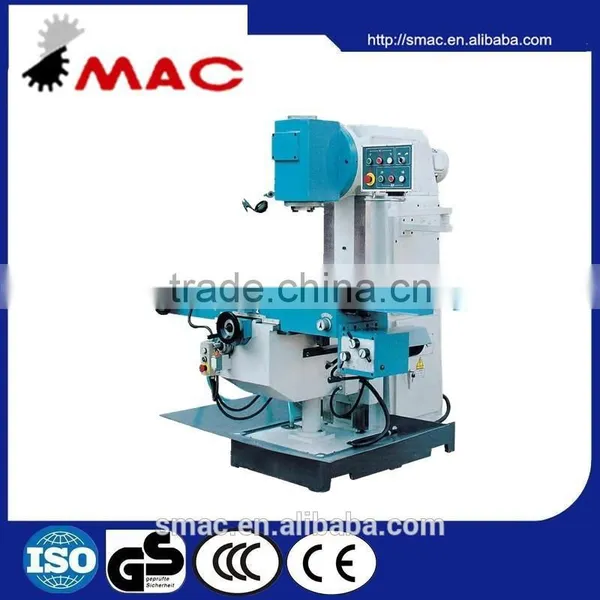

knee-type milling machine VML5036A
| Model | VML5036 | VML5036A | VML5036A/1 | |
| Spindle taper | 7:24 ISO 50 | |||
| Distance from spindle axis to column | 70-515mm | 60-420mm | 60-420mm | |
| Distance from spindle nose to table | 325mm | 320mm | ||
| Range of spindle speed | 60-1700r.p.m (12 steps) | 60-1690r.p.m (12 steps) | ||
| Swivel angle of vertical milling head | ±45° | |||
| Table size (mm) | 1220 x 360 | 1250 x 360 | 1250 x 360 | |
| Table travel | Horizontal | 600mm | 600mm | 1000mm |
| Cross | 250mm | 320mm | 320mm | |
| Vertical | 440mm | 360mm | 380mm | |
| Range of longitudinal, cross travel | 27-720mm/min(8steps) (rapid)1080mm/min |
230-740mm/min(8steps) (rapid)1080mm/min |
||
| Z speed of table | 590mm/min | |||
| T-slot of table(number-width-length) | 3-14-95 | 3-18-80 | ||
| Main motor | 4Kw | |||
| Motor for rapid device of table (X,Y) | Optinal: X.Y power speed |
750W | ||
| Motor for rapid device of table (Z) | manual | 750W | ||
| Overall dimension(mm) | 1800x1850x1880 | 2220 x 1790 x 1880 | ||
| N.W.G.W.(kg) | 1900/2100 | 2200/2400 | ||
knee-type milling machine VML5036A
