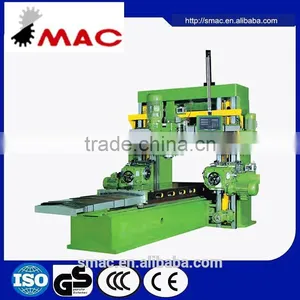

gantry milling machine X6025HD
Core technique originates from Taiwan, scientific & logical design of the structure and adoption of the advanced function unit can realize strong cutting function, high working efficiency, safe & reliable movement and long working life.
1. Heat-treatment technics & mechanical lubrication are adopted on the guideway of the machine body to reduce friction & prolong working life of the machine.
2. Stepless table speed change.
3. Rectangular or flat-V bed guideways, rigid machine bed/beam/column ensure stability of the machine in strong cutting.
4. Milling head can move vertically/horizontally or swivel ±30°.
It is used in machining, moulding and some other industries, especially the machining of plane/end face/inclined plane/T slot/ combined guideway of large/medium/small machine parts.
gantry milling machine X6025HD
| Model | 52537 | 52538 | 52539 | 52540 | 52541 | |
| 4020HD | X4025HD | X6020HD | X6025HD | X8025HD | ||
| Cutting the length of the largest | mm | 4000 | 4000 | 6000 | 6000 | 4000 |
| The distance between the two columns | mm | 2000 | 2500 | 2000 | 2500 | 1600 |
| Vertical stroke | mm | 1000 | 1200 | 1200 | 1200 | 1000 |
| Table area | mm | 4000x1600 | 4000x2000 | 6000x1600 | 6000x2000 | 4000x1200 |
| Table feed motor | HP | 7.5HP | 7.5HP | 7.5HP | 10HP | |
| Beams motor movements | HP | 5HP | 5HP | 5HP | 7.5HP | |
| Li Wang motor movements | HP | 10HP/7.5HP | 10HP/7.5HP | 10HP/7.5HP | 10HP/7.5HP | |
| Table speed | mm/min | 0~2300 | 0~2300 | |||
| Table load | kg | 10000kg | 10000kg | 13000kg | 15000kg | |
| Lubrication system table | Hp | 1/4HP | 1/4HP | 1/4HP | 1/4HP | 1/4HP |
| Machine weight | kg | 28000 | 32000 | 40000 | 45000 | 56000 |
