Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SMAC | Model Number | HML6036 | |
| Type | Universal | CNC or Not | Normal | |
| Voltage | 380V | Power(W) | 4kw | |
| Dimension(L*W*H) | 1800*1790*1700mm | Weight | 1850/2000kg | |
| Certification | CE;ISO | Warranty | 1 year |
Product Description

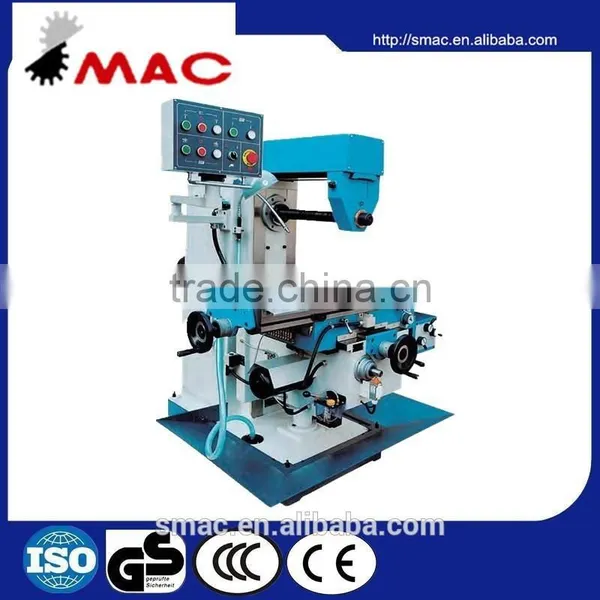

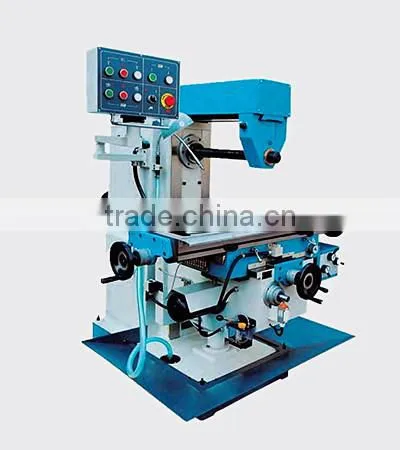

auto-feeding milling machine HML6036
auto-feeding milling machine HML6036
features:
Rectangle table guideway
Harded and groud table surface
Automatic feeds on X, Y axis
Motorized Z axis
Headstock siwel +/-45 degree
auto-feeding milling machine HML6036
auto-feeding milling machine HML6036
| Model | HML6036 | HML6036A | HML6036B | XW6136 | |
| Spindle taper | 7:24 ISO50 | ||||
| Distance from vertical spindle axis to column | 0-440mm | ||||
| Distance from Horizontal spindle nose to table | 175mm | ||||
| Range of spindle speed | 60-1700r.p.m(12 steps) | 58-1800rpm(12steps) | |||
| Table size | 1220 x 360mm | 1250 x 360mm | 1250 x 360mm | 1320 x 360mm | |
| Table travel | Longitudinal | 600mm | 600mm | 1000mm | 1000mm |
| Cross | 250mm | 320mm | 320mm | 300mm | |
| Vertical | 440mm | 400mm | 400mm | 400mm | |
| Range of longitudinal, cross travel | 27-720mm/min(8steps) (rapid)1080mm/min | 22-420/22-393mm/min | |||
| Z-speed of table | 590mm/min | 10-168mm/min | |||
| T-slot (number-width-distance) | 3-14-95 | 3-18-80mm | 3-14-95mm | ||
| Main motor | 4kw | ||||
| Motor for rapid device of table (X, Y) | 750W | ||||
| Motor for rapid device of table (Z) | - | 750W | |||
| Overall dimension | 1800*1790*1700mm | 1880*1700*1700mm | 2070*2050*1950mm | ||
| N.W./G.W. | 1850/2000kg | 2000/2150kg | 2200/2400kg | ||
Our service:
1,Your inquiry will be replied in 24 hours.
2.Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6
years.And there is more industry technology experience for 20 years with our manufactures
3.To offer free spare parts and service within one year of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service team
6.Give reasonable offers with the best quality
Our advantage:
1,More then 20 years experience for indusry product
2,All modles with CE,TUV,SGS,ISO9001/9002 or other authority approved
3,Professional service and technology
4,Excellent reputation all over the world
5,Final exported producuts would pass strict test by international authority BIVAC
6, There is more exporting experience for 20years with our owned manufacture/company
Welcome to SJR Machinery Limited
We are looking forward to bulding sincere and long-term business relationship with you
BEST QUALITY GOODS ****** LOWEST PRICE ****** PERFECT SERVICE
Our products are exported to more than 50 countries, more than 700 customers
