Type
Tile Forming Machine
Brand Name
SMAC
Specifications
Powder Forming/forming/forming machine/thermoformingNominat Pressure:400Kn
Push-up force:280Kn
ure of liquide:25MPa
Powder Forming/forming/forming machine/thermoforming
Main Structure Features:

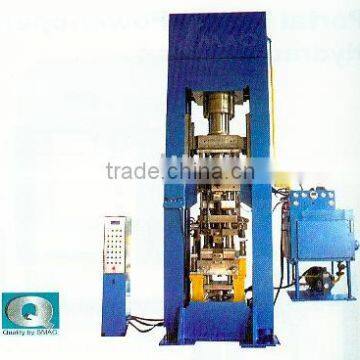

YAN79 series hydraulic presses for auto-power forming are mainly used in powder metallurgy of structure parts and production of mechanical parts,and also suited for press forming of precision ceramics,electronics ceramics and carbide.
Hydraulic presses of this series have separated hydraulic and electrical systems,and auto feeding and discharging apparatus.They have the special functions of floating pressing and demould protection.Since their electrical control is realized with PLC programmable controller,all press buttons are centralized for easy operation and a killer-limiting device is installed,the consistency of finished products can be guarant.
| 11818 | 11819 | 11820 | 11821 | 11822 | 11823 | 11824 | |||
| Item | (Unit) | YAN79Z-40 | YAN79Z(K)-63 | YAN79Z(K)-100 | YAN79Z(K)-200 | YAN79Z(K)-315 | YAN79Z(K)-500 | YAN79Z(K)-630 | |
| Nominat Pressure | kn | 400 | 630 | 1000 | 2000 | 3150 | 5000 | 6300 | |
| Push-up force | kn | 280 | 350 | 400 | 850 | 1000 | 1400 | 2000 | |
| ure of liquide | mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slide-stroke | mm | 350 | 400 | 400 | 500 | 500 | 600 | 600 | |
| Push-up stroke | mm | 150 | 200 | 200 | 250 | 250 | 300 | 300 | |
| Daylight | mm | 120 | 120 | 150 | 150 | 150 | 150 | 150 | |
| Speed | Fast down | mm/s | 120 | 120 | 120 | 100 | 100 | 100 | 100 |
| Slow down | mm/s | 20 | 18 | 15 | 12 | 12 | 12 | 12 | |
| Return | mm/s | 100 | 120 | 100 | 80 | 60 | 80 | 60 | |
| Push-up | mm/s | 48 | 40 | 40 | 40 | 35 | 40 | 40 | |
| Return | mm/s | 48 | 45 | 45 | 45 | 45 | 45 | 40 | |
| Up-oil cylinder (Coption) | ure | kn | 8 | 11 | 11 | 18 | 18 | 22 | 22 |
| Max.return pressure | kn | 4.5 | 85 | 5 | 9.5 | 9.5 | 11 | 11 | |
| Max.stroke | mm | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Down-oil cylinder | ure | kn | 30 | 30 | 60 | 80 | 80 | 120 | 120 |
| Max.return pressure | kn | 10 | 10 | 35 | 50 | 50 | 60 | 60 | |
| Max.stroke | mm | 100 | 100 | 120 | 200 | 200 | 200 | 200 | |
| Table size | mm2 | 450x450 | 560x490 | 700x580 | 950x700 | 1120x800 | 1200x1000 | 1300x1000 | |
| Power moving cylider option | ure | kn | 80 | 80 | 80 | 80 | 80 | 125 | 125 |
| Max.stroke | mm | 80 | 80 | 80 | 80 | 80 | 80 | 80 | |
| Driving cylindel for flooating die-frame | Pressure | kn | 45 | 45 | 45 | 45 | 45 | 65 | 65 |
| Max.stroke | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Ass.cylinder | ure | kn | 20 | 23 | 23 | 25 | 25 | 27 | 27 |
| Max.stroke | mm | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Main motor | kw | 7.5 | 7.5 | 11 | 15 | 22 | 30 | 37 | |
| Overall size | L-R | mm | 1760 | 1800 | 3010 | 4200 | 4575 | 5775 | 5820 |
| F-B | mm | 2310 | 2400 | 1300 | 1700 | 2425 | 2500 | 2630 | |
| Over-floor | mm | 3500 | 3600 | 4000 | 4500 | 4800 | 5200 | 5700 | |
| Bellow floor | mm | 400 | 600 | 600 | 1500 | 1500 | 1700 | 1900 | |
| Side- cylinder(Coption | ure | kn | 30 | 30 | 30 | 30 | 30 | 80 | 80 |
| Max.return pressure | kn | 19 | 19 | 19 | 19 | 19 | 50 | 50 | |
| Max.stroke | mm | 60 | 60 | 60 | 80 | 80 | 80 | 80 | |
