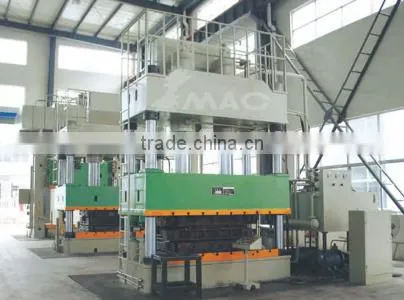

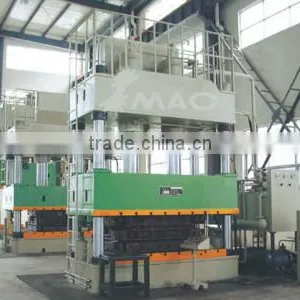

Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Double Action Hydraulic Press Machine
US$ 1,000 - 50,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Deep Drawing Press MachineUS$ 1,000 - 50,000MOQ: 1 Unit -
SMAC Heavy Duty and High Precision Double Action Hydraulic PressNegotiableMOQ: 1 Set
-
Hydraulic PressNegotiableMOQ: 1 Set
-
SMAC High Precision Powder Forming PressNegotiableMOQ: 1 Set
-
Hydraulic PressUS$ 1,000 - 50,000MOQ: 1 Unit
Condition
New
CNC or Not
Normal
Power Source
Hydraulic
Place of Origin
Jiangsu, China
Brand Name
SMAC
Voltage
220V/380V/415V
Certification
CE ISO SGS
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Suitable for all drawing, bending, forming,stamping and flanging processes.
Four column type or straight side structure available on request and both structuOres are calculated by finite elements methods.
The four column type press featuring compact arrangement and high price performance ratio, straight side structure press is with much high rigidity and precision, also eccentric load resistance performance.
Cartridge valve integrated unit equipped in hydraulic control system, with high reliability,durability. Oil leakage is avoided by means of proper piping and minimum hydraulic impact design.
Electrical system controlled by imported PLC unit, with the features of compact, sensitivity,reliability and flexibility; reliable actions and easy maintenance are the features of the system based on relay control.
Three operation modes are provided: Adjustment,Two-hand/single circle and Auto continuous(equipped with robort) operations.
Various actions such as Preset Stroke Forming or Preset Pressure Forming process, cushion actions including Rest, Ejection or Blank holding can be selected on control panel.
Main parameters
| 11701 | 11702 | 11708 | 11712 | 11716 | 11717 | 11718 | 11719 | |||
| ltem | Unit | YAN27-63 | YAN27-100 | YAN27-200 | YAN27-315 | YAN27-500(1) | YAN27-500(2) | YAN27-630 | YAN27-1000 | |
| Nominal Force | KN | 630 | 1000 | 2000 | 3150 | 5000 | 5000 | 6300 | 10000 | |
| Return Force | KN | 180 | 260 | 480 | 630 | 1000 | 1000 | 1250 | 1250 | |
| Cushion Force | KN | 200 | 300 | 600 | 1250 | 1600 | 1600 | 2500 | 3000 | |
| ure of liquid | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Stroke | Slide | mm | 450 | 700 | 710 | 800 | 900 | 900 | 1000 | 1400 |
| Cushion | mm | 180 | 300 | 250 | 300 | 350 | 300 | 400 | 350 | |
| Max.Daylight | mm | 900 | 1000 | 1120 | 1250 | 1500 | 1500 | 1600 | 2300 | |
| Slide speed | Descent | mm/s | 120 | 150 | 100 | 100 | 140 | 100 | 100 | 100 |
| Pressing | mm/s | 11-15 | 20 | 6-15 | 6-12 | 5-15 | 8 | 6-14 | 13 | |
| Return | mm/s | 130 | 80 | 80 | 60 | 70 | 90 | 65 | 60 | |
| Table Dimensions | L-R | mm | 560 | 720 | 1000 | 1250 | 1400 | 2200 | 2600 | 2500 |
| F-B | mm | 500 | 580 | 900 | 1120 | 1400 | 1400 | 1750 | 2000 | |
| Cushion Dimensions | L-R | mm | 310 | 470 | 800 | 900 | 1100 | 1700 | 1950 | 2000 |
| F-B | mm | 300 | 430 | 630 | 800 | 1100 | 900 | 1200 | 1500 | |
| Height of table above Floor | mm | 750 | 750 | 500 | 600 | 500 | 500 | 500 | 0 | |
| Total Power | KW | 11 | 11 | 22 | 22 | 45 | 45 | 45 | 90 | |
| Total Weight | Kg | 4200 | 6500 | 14200 | 18000 | 29500 | 41000 | 77000 | 102000 | |
| Overall Dimensions | L-R | mm | 1420 | 1960 | 2698 | 3018 | 4120 | 4750 | 5222 | 5800 |
| F-B | mm | 1265 | 1620 | 2530 | 2530 | 3600 | 3800 | 3785 | 6050 | |
| Height above Floor | mm | 2698 | 3250 | 4110 | 4560 | 5545 | 5545 | 5970 | 8098 | |
| Depth below Floor | mm | 300 | 800 | 1000 | 1200 | 1000 | 1400 | 2400 | ||
