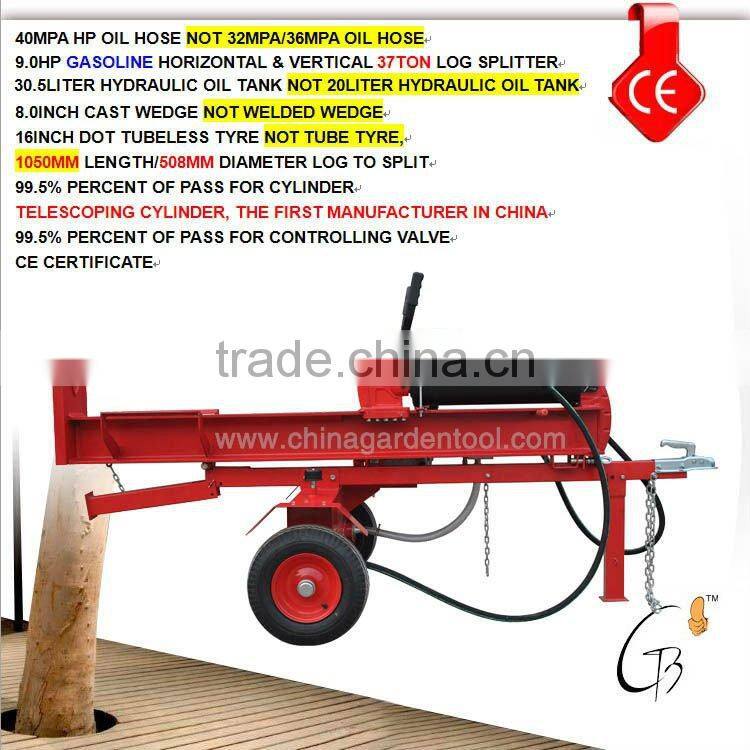

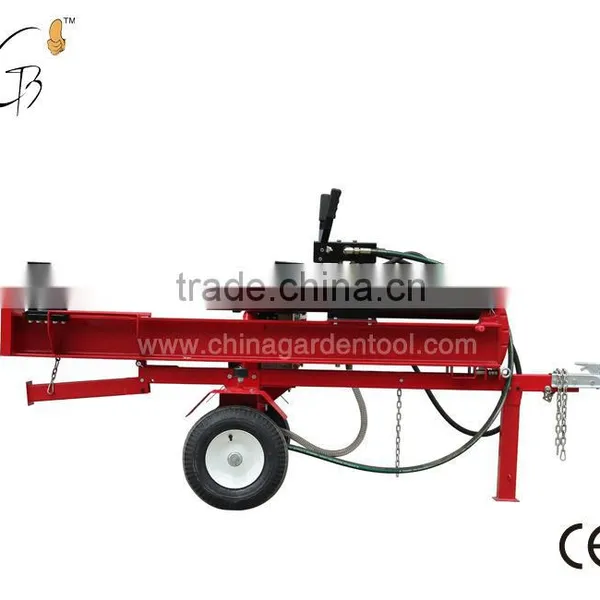

Log Splitter (LS37T-B1-1050MM)

Name: Log Splitter (LS37T-B1-1050MM)
Brand: GREAT-BOOM
SKU: 142972270
Availability: InStock

Laizhou Great-Boom Machinery Co., Limited

US$ 900 - 1,180 MOQ: 10 Pallets

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

GREAT-BOOM

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO or SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name GREAT-BOOM

Model Number LS37T-B1-1050MM

After-sales Service Provided Overseas third-party support available

Specifications

log splitter,screw log splitter,wood splitter,screw log splitter for sale,log splitter for sale,tempest wood splitter,diesel log

log splitter is available; we make 24ton, 30ton, 37ton and 40ton. And it can split both 610mm and 1050mm length log

log splitter has obtained CE certificate.

Log splitter includes electrical log splitter, gasoline engine log splitter, and diesel engine log splitter.

STRONGPOINTS FOLLOWING: PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL TELESCOPING CYLINDER USAGE BETTER LEVEL OF 1050MM CYLINDER ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN
MODEL NO.	LS37T-B1-1050MM (DIESEL ENGINE)
LOG SPLITTER SPECIFICATION FOLLOWING
OPERATING TYPE		HORIZONTAL TYPE AND VERTICAL TYPE
MAX. FORCE	37TON
COUPLER	2.0INCH
WEDGE	CAST WEDGE
CYLINDER	5.0INCH
PUMP FLOW	2-STAGE, 16GPM (GALLON PER MINUTE)
LOG LENGTH TO SPLIT	1100MM/44INCH
LOG DIAMETER TO SPLIT	508MM/20INCH
AUTOMATIC CYLINDER RETURN	YES
JACK STAND (FRONT AND REAR)	YES
TIRE	DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR TRAILER USE ONLY
HP OIL HOSE	2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY
H-BEAM	INDUSTRIAL STANDARD, 175MM*175MM
HYDRAULIC TANK CAPACITY	30.5LITER
N.W./PC	300.50KGS
G.W./PC	310.50KGS
WHOLE MACHINE CERTIFICATE	CE
PACKING SIZE	2050MM560MM540MM
QUANTITY IN CONTAINER	40PCS/20FT; 88PCS/40FT/40HQ
ENGINE SPECIFICATION FOLLOWING
ENGINE	186F, 11.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT
ENGINE CERTIFICATE	CE,EPA, EUROII
ENGINE SPEED	3600RPM
POWER TAKE OFF	CRANKSHAFT OR CAMSHAFT
BORE*STROKE	86MM*70MM
DISPLACEMENT	418ML
FUEL TANK CAPACITY	5.5L
LUBE OIL CAPACITY	1.65L
NET WEIGHT OF ENGINE	48.00KGS
START TYPE	RECOIL OR RECOIL/ELECTRIC
